Binary serializer for RNP protocol packets. More...

#include <Serializer.hpp>

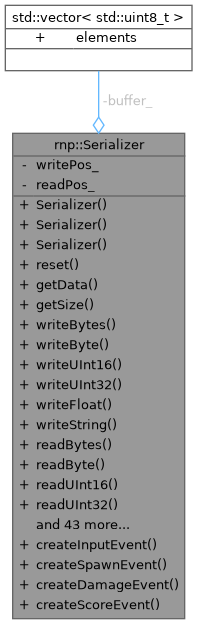

Collaboration diagram for rnp::Serializer:

Public Member Functions
	Serializer ()
	Constructor.

	Serializer (std::size_t capacity)
	Constructor with initial capacity.

	Serializer (const std::vector< std::uint8_t > &data)
	Constructor from existing data.

void	reset ()
	Reset the serializer for reuse.

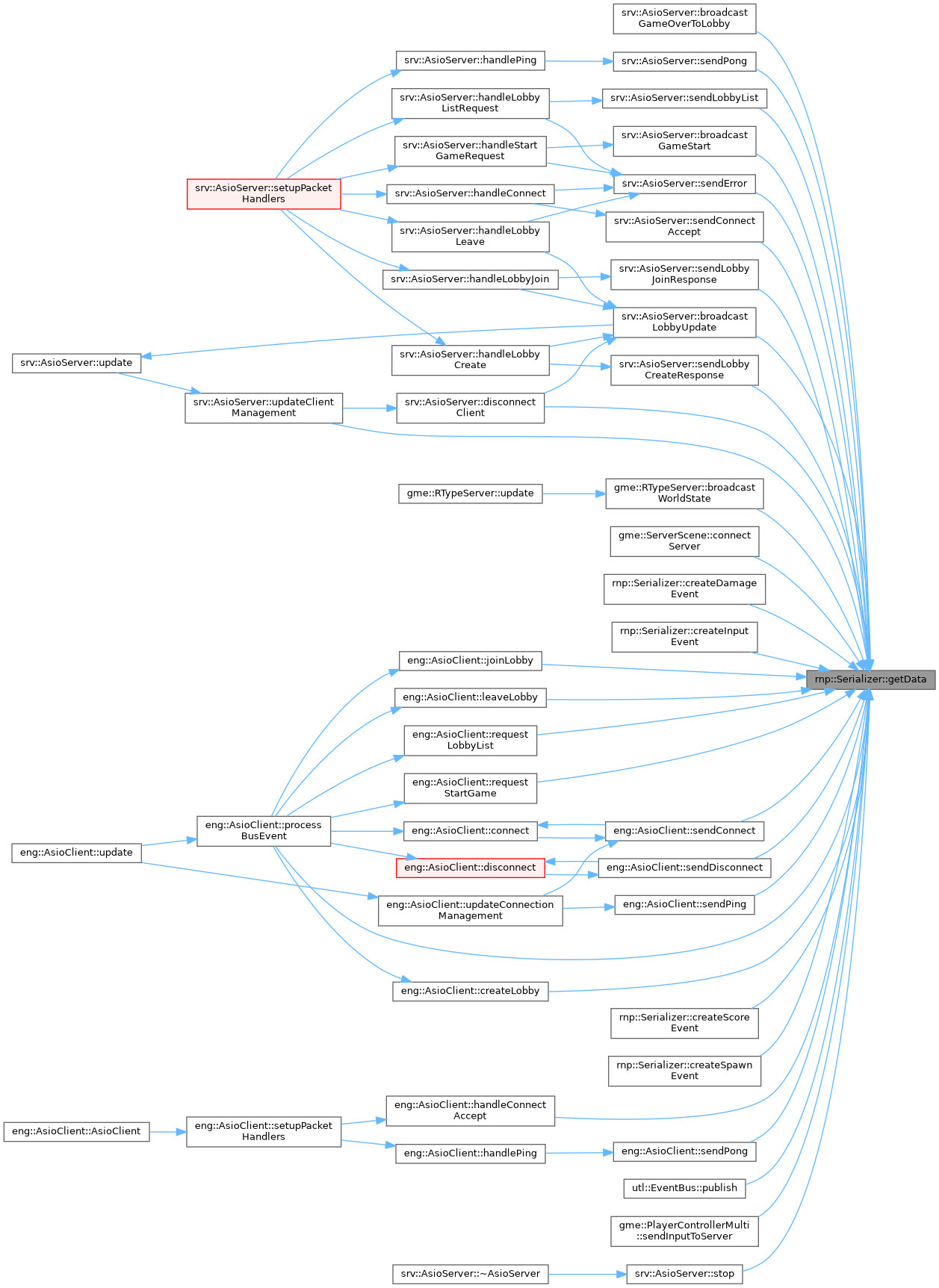

const std::vector< std::uint8_t > &	getData () const
	Get the serialized data.

std::size_t	getSize () const
	Get the current size of serialized data.

void	writeBytes (const void *data, std::size_t size)
	Write raw bytes.

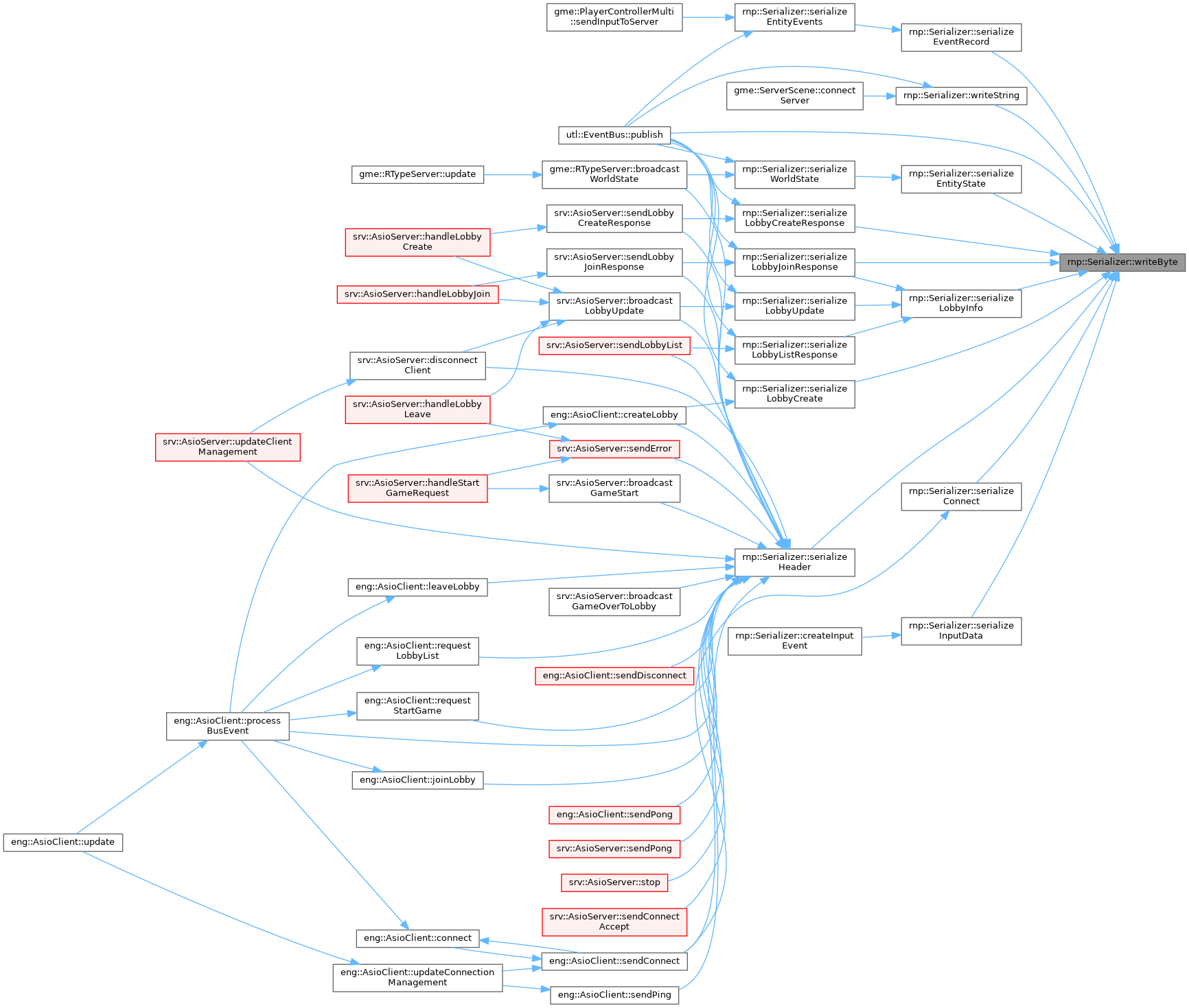

void	writeByte (std::uint8_t value)
	Write a single byte.

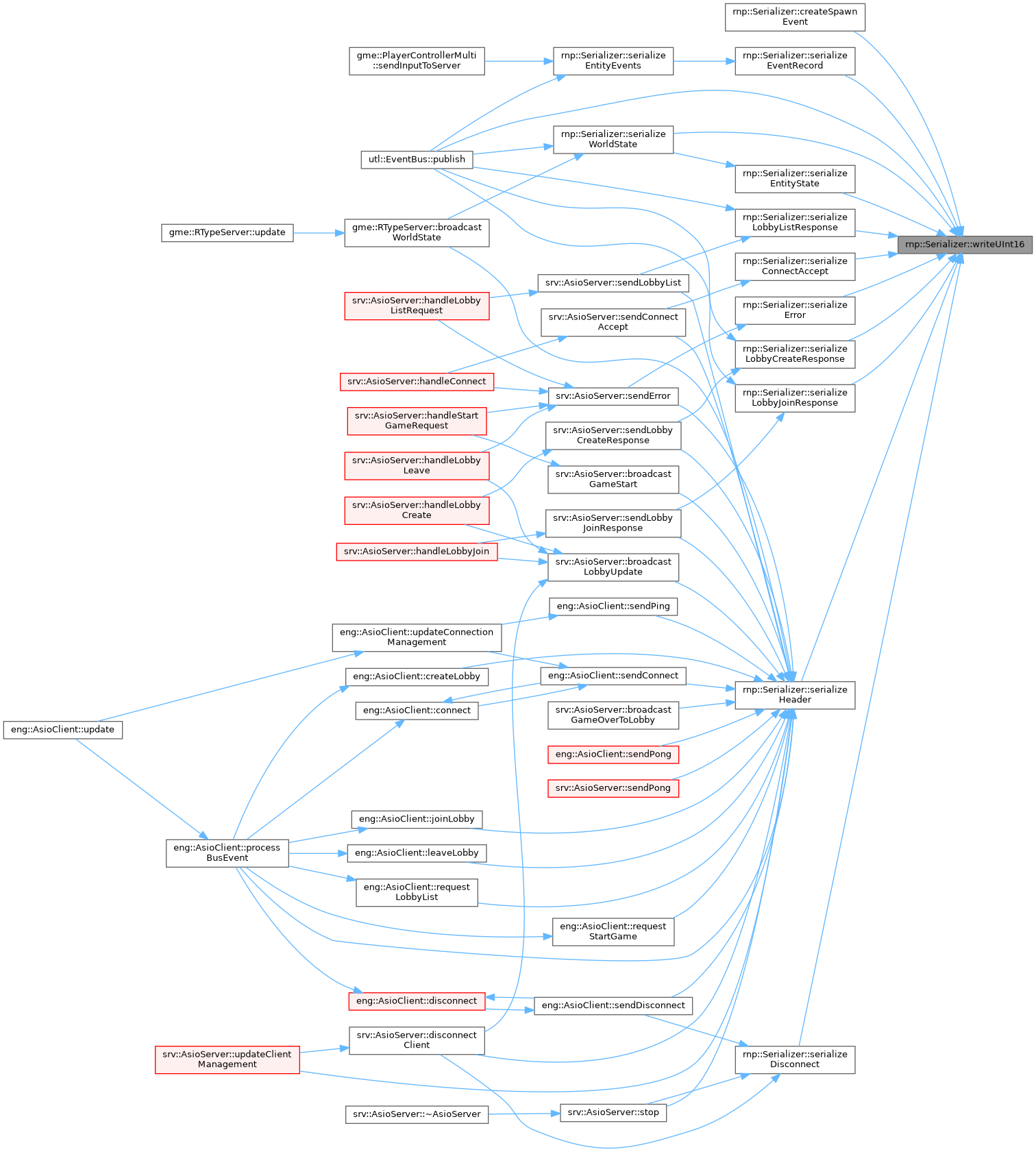

void	writeUInt16 (std::uint16_t value)
	Write a 16-bit integer (network byte order)

void	writeUInt32 (std::uint32_t value)
	Write a 32-bit integer (network byte order)

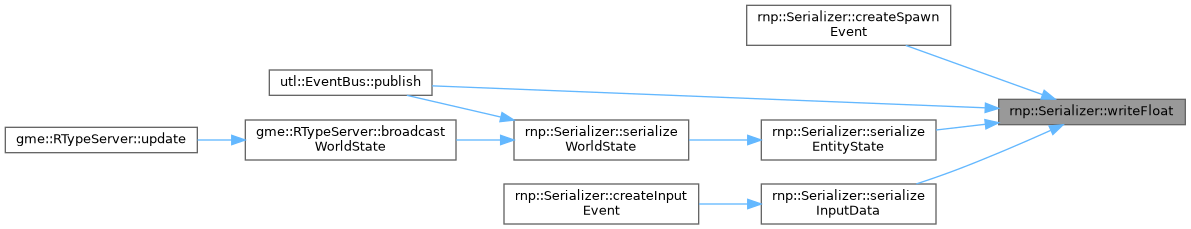

void	writeFloat (float value)
	Write a float (network byte order)

void	writeString (const std::string &str, std::size_t maxLength)
	Write a string with length prefix.

void	readBytes (void *data, std::size_t size)
	Read raw bytes.

std::uint8_t	readByte ()
	Read a single byte.

std::uint16_t	readUInt16 ()
	Read a 16-bit integer (network byte order)

std::uint32_t	readUInt32 ()
	Read a 32-bit integer (network byte order)

float	readFloat ()
	Read a float (network byte order)

std::string	readString (std::size_t maxLength)
	Read a string with length prefix.

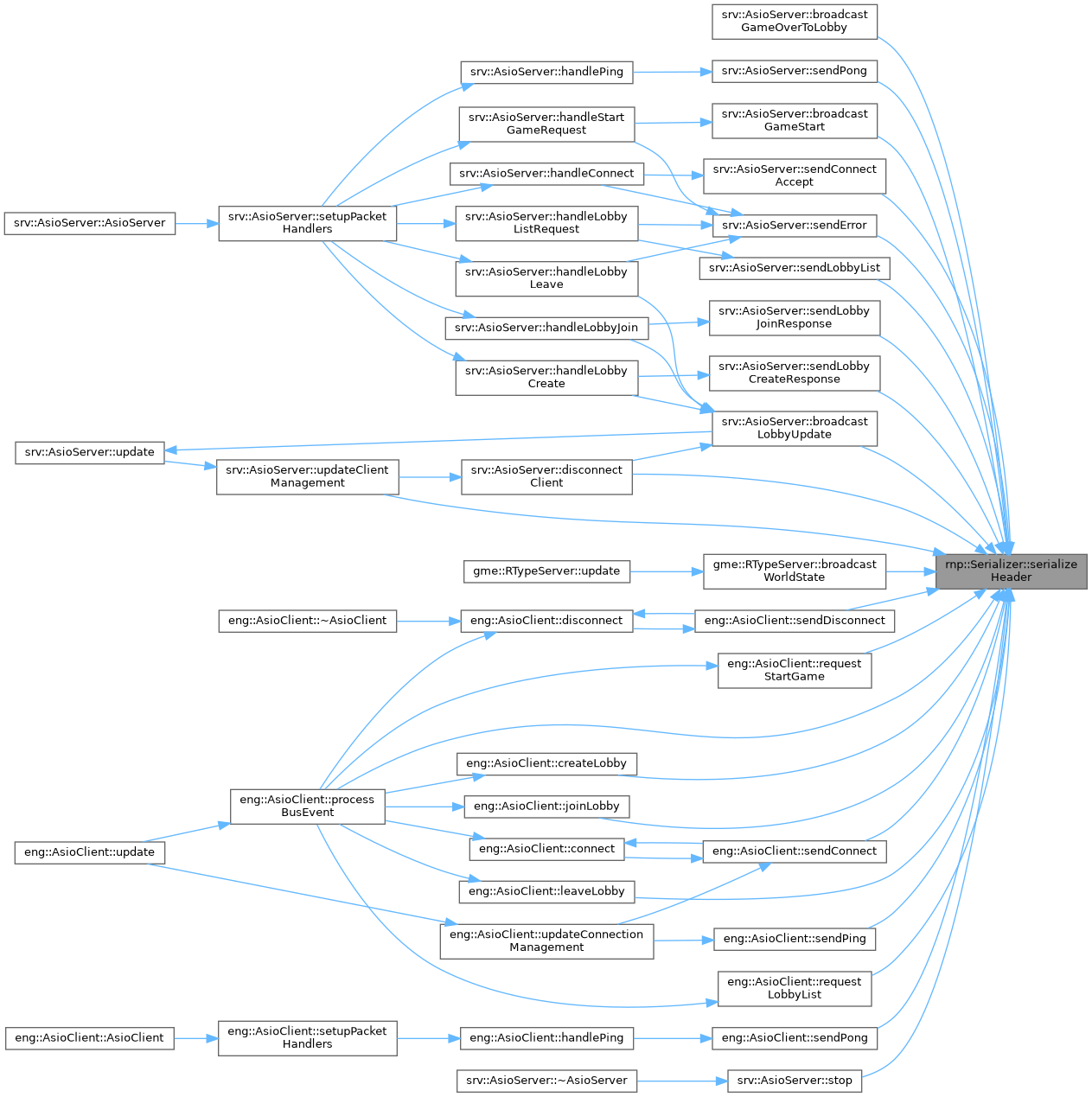

void	serializeHeader (const PacketHeader &header)
	Serialize packet header.

PacketHeader	deserializeHeader ()
	Deserialize packet header.

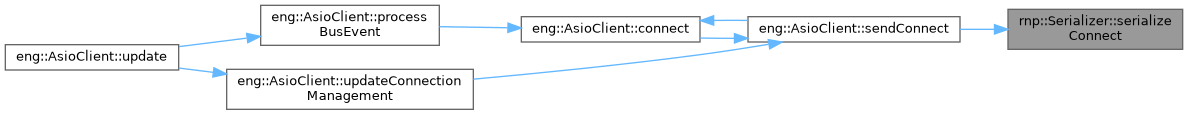

void	serializeConnect (const PacketConnect &packet)
	Serialize CONNECT packet.

PacketConnect	deserializeConnect ()
	Deserialize CONNECT packet.

void	serializeConnectAccept (const PacketConnectAccept &packet)
	Serialize CONNECT_ACCEPT packet.

PacketConnectAccept	deserializeConnectAccept ()
	Deserialize CONNECT_ACCEPT packet.

void	serializeDisconnect (const PacketDisconnect &packet)
	Serialize DISCONNECT packet.

PacketDisconnect	deserializeDisconnect ()
	Deserialize DISCONNECT packet.

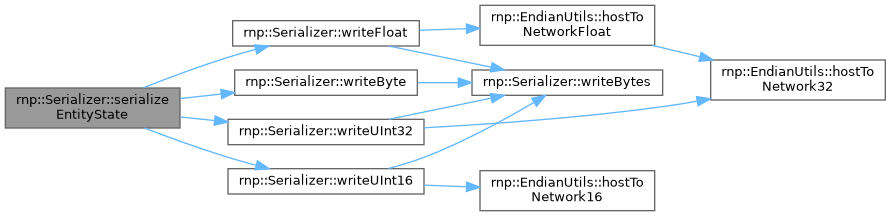

void	serializeEntityState (const EntityState &entity)
	Serialize EntityState.

EntityState	deserializeEntityState ()
	Deserialize EntityState.

void	serializeWorldState (const PacketWorldState &packet)
	Serialize WORLD_STATE packet.

PacketWorldState	deserializeWorldState ()
	Deserialize WORLD_STATE packet.

void	serializePingPong (const PacketPingPong &packet)
	Serialize PING/PONG packet.

PacketPingPong	deserializePingPong ()
	Deserialize PING/PONG packet.

void	serializeError (const PacketError &packet)
	Serialize ERROR packet.

PacketError	deserializeError ()
	Deserialize ERROR packet.

void	serializeEventRecord (const EventRecord &event)
	Serialize EventRecord for ENTITY_EVENT packets.

EventRecord	deserializeEventRecord ()
	Deserialize EventRecord from ENTITY_EVENT packets.

void	serializeEntityEvents (const std::vector< EventRecord > &events)
	Serialize multiple EventRecords for ENTITY_EVENT packet.

std::vector< EventRecord >	deserializeEntityEvents (std::size_t payloadSize)
	Deserialize multiple EventRecords from ENTITY_EVENT packet.

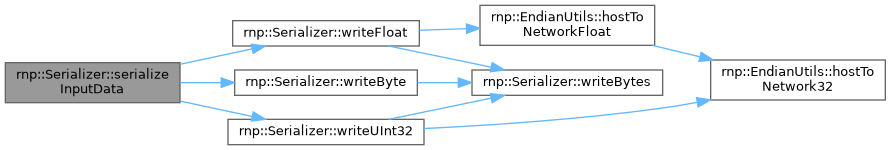

void	serializeInputData (std::uint8_t keys, float mouseX, float mouseY, std::uint8_t mouseButtons, std::uint32_t timestamp)
	Serialize input data for INPUT events.

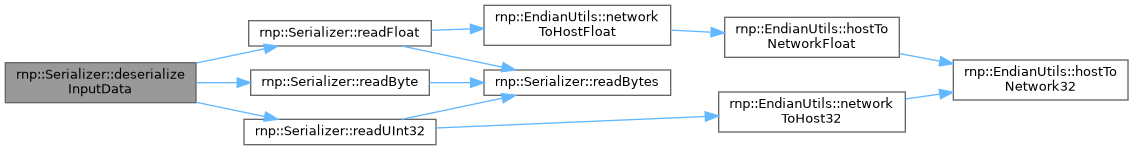

void	deserializeInputData (std::uint8_t &keys, float &mouseX, float &mouseY, std::uint8_t &mouseButtons, std::uint32_t &timestamp)
	Deserialize input data from INPUT events.

EventRecord	createDespawnEvent (std::uint32_t entityId)
	Create an EventRecord for despawn event.

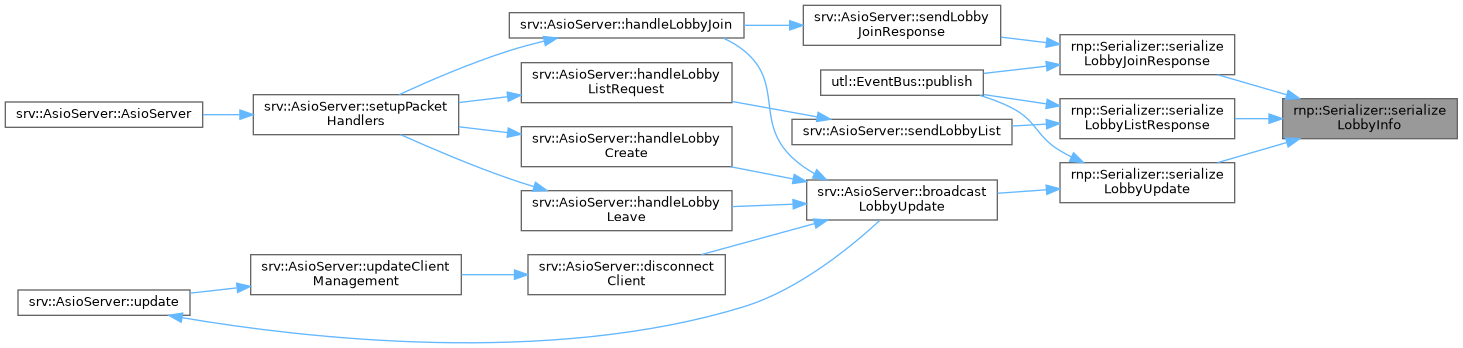

void	serializeLobbyInfo (const LobbyInfo &lobbyInfo)
	Serialize LobbyInfo structure.

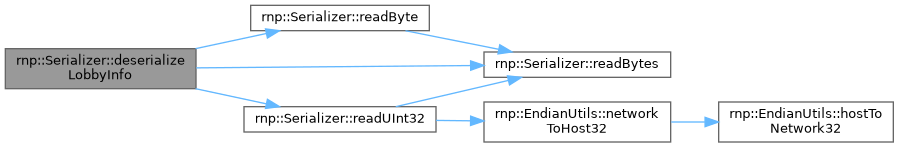

LobbyInfo	deserializeLobbyInfo ()
	Deserialize LobbyInfo structure.

void	serializeLobbyListResponse (const PacketLobbyListResponse &packet)
	Serialize LOBBY_LIST_RESPONSE packet.

PacketLobbyListResponse	deserializeLobbyListResponse ()
	Deserialize LOBBY_LIST_RESPONSE packet.

void	serializeLobbyCreate (const PacketLobbyCreate &packet)
	Serialize LOBBY_CREATE packet.

PacketLobbyCreate	deserializeLobbyCreate ()
	Deserialize LOBBY_CREATE packet.

void	serializeLobbyCreateResponse (const PacketLobbyCreateResponse &packet)
	Serialize LOBBY_CREATE_RESPONSE packet.

PacketLobbyCreateResponse	deserializeLobbyCreateResponse ()
	Deserialize LOBBY_CREATE_RESPONSE packet.

void	serializeLobbyJoin (const PacketLobbyJoin &packet)
	Serialize LOBBY_JOIN packet.

PacketLobbyJoin	deserializeLobbyJoin ()
	Deserialize LOBBY_JOIN packet.

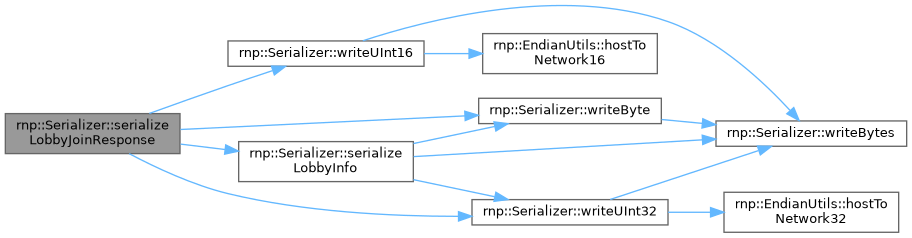

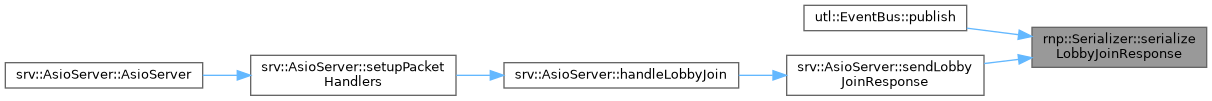

void	serializeLobbyJoinResponse (const PacketLobbyJoinResponse &packet)
	Serialize LOBBY_JOIN_RESPONSE packet.

PacketLobbyJoinResponse	deserializeLobbyJoinResponse ()
	Deserialize LOBBY_JOIN_RESPONSE packet.

void	serializeLobbyUpdate (const PacketLobbyUpdate &packet)
	Serialize LOBBY_UPDATE packet.

PacketLobbyUpdate	deserializeLobbyUpdate ()
	Deserialize LOBBY_UPDATE packet.

void	serializeGameStart (const PacketGameStart &packet)
	Serialize GAME_START packet.

PacketGameStart	deserializeGameStart ()
	Deserialize GAME_START packet.

void	serializeStartGameRequest (const PacketStartGameRequest &packet)
	Serialize START_GAME_REQUEST packet.

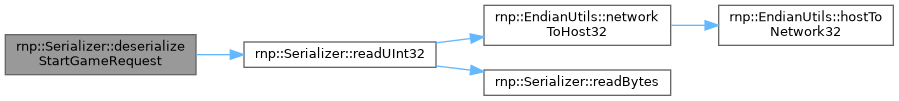

PacketStartGameRequest	deserializeStartGameRequest ()
	Deserialize START_GAME_REQUEST packet.

Static Public Member Functions
static EventRecord	createInputEvent (std::uint32_t entityId, std::uint8_t keys, float mouseX, float mouseY, std::uint8_t mouseButtons, std::uint32_t timestamp)
	Create an EventRecord for input data.

static EventRecord	createSpawnEvent (std::uint32_t entityId, EntityType entityType, float x, float y)
	Create an EventRecord for spawn event.

static EventRecord	createDamageEvent (std::uint32_t entityId, std::uint32_t damage, std::uint32_t sourceId=0)
	Create an EventRecord for damage event.

static EventRecord	createScoreEvent (std::uint32_t entityId, std::uint32_t score)
	Create an EventRecord for score event.

Private Attributes
std::vector< std::uint8_t >	buffer_

std::size_t	writePos_

std::size_t	readPos_

Detailed Description

Binary serializer for RNP protocol packets.

Definition at line 64 of file Serializer.hpp.

Constructor & Destructor Documentation

◆ Serializer() [1/3]

rnp::Serializer::Serializer ( )

inline

Constructor.

Definition at line 75 of file Serializer.hpp.

References buffer_, and rnp::MAX_PAYLOAD.

◆ Serializer() [2/3]

rnp::Serializer::Serializer ( std::size_t capacity )

inlineexplicit

Constructor with initial capacity.

Parameters

capacity Initial buffer capacity

Definition at line 86 of file Serializer.hpp.

References buffer_.

◆ Serializer() [3/3]

rnp::Serializer::Serializer ( const std::vector< std::uint8_t > & data )

inlineexplicit

Constructor from existing data.

Parameters

data	Existing data to deserialize

Definition at line 92 of file Serializer.hpp.

Member Function Documentation

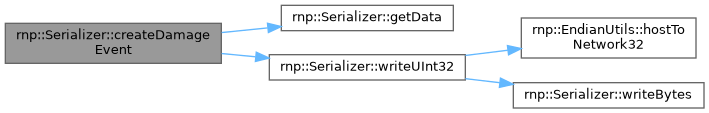

◆ createDamageEvent()

static EventRecord rnp::Serializer::createDamageEvent	(	std::uint32_t	entityId,
		std::uint32_t	damage,
		std::uint32_t	sourceId = 0 )

inlinestatic

Create an EventRecord for damage event.

Parameters

entityId	Entity taking damage
damage	Amount of damage
sourceId	Source entity causing damage

Returns: EventRecord for damage

Definition at line 653 of file Serializer.hpp.

References rnp::DAMAGE, getData(), rnp::EventRecord::type, and writeUInt32().

Here is the call graph for this function:

◆ createDespawnEvent()

EventRecord rnp::Serializer::createDespawnEvent ( std::uint32_t entityId )

inline

Create an EventRecord for despawn event.

Parameters

entityId Entity to despawn

Returns: EventRecord for despawn

Definition at line 692 of file Serializer.hpp.

References rnp::DESPAWN, and rnp::EventRecord::type.

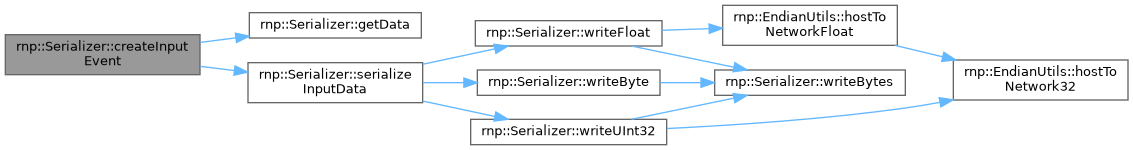

◆ createInputEvent()

static EventRecord rnp::Serializer::createInputEvent	(	std::uint32_t	entityId,
		std::uint8_t	keys,
		float	mouseX,
		float	mouseY,
		std::uint8_t	mouseButtons,
		std::uint32_t	timestamp )

inlinestatic

Create an EventRecord for input data.

Parameters

entityId	Player entity ID
keys	Keyboard input
mouseX	Mouse X
mouseY	Mouse Y
mouseButtons	Mouse buttons
timestamp	Timestamp

Returns: EventRecord ready to send

Definition at line 609 of file Serializer.hpp.

References getData(), rnp::INPUT, serializeInputData(), and rnp::EventRecord::type.

Here is the call graph for this function:

◆ createScoreEvent()

static EventRecord rnp::Serializer::createScoreEvent	(	std::uint32_t	entityId,
		std::uint32_t	score )

inlinestatic

Create an EventRecord for score event.

Parameters

entityId	Entity gaining score
score	Score amount

Returns: EventRecord for score

Definition at line 674 of file Serializer.hpp.

References getData(), rnp::SCORE, rnp::EventRecord::type, and writeUInt32().

Here is the call graph for this function:

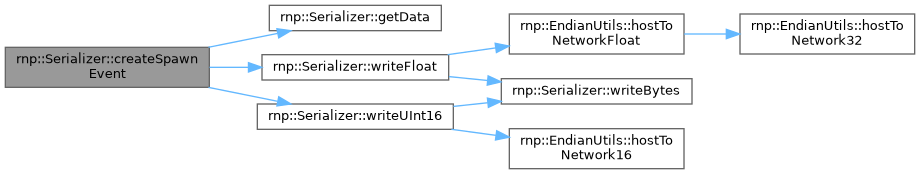

◆ createSpawnEvent()

static EventRecord rnp::Serializer::createSpawnEvent	(	std::uint32_t	entityId,
		EntityType	entityType,
		float	x,
		float	y )

inlinestatic

Create an EventRecord for spawn event.

Parameters

entityId	Entity ID to spawn
entityType	Type of entity
x	X position
y	Y position

Returns: EventRecord for spawn

Definition at line 631 of file Serializer.hpp.

References getData(), rnp::SPAWN, rnp::EventRecord::type, writeFloat(), and writeUInt16().

Here is the call graph for this function:

◆ deserializeConnect()

PacketConnect rnp::Serializer::deserializeConnect ( )

inline

Deserialize CONNECT packet.

Returns: Deserialized CONNECT packet

Definition at line 315 of file Serializer.hpp.

References rnp::PacketConnect::clientCaps, rnp::PacketConnect::nameLen, rnp::PacketConnect::playerName, readByte(), readBytes(), and readUInt32().

Referenced by rnp::HandlerPacket::processPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

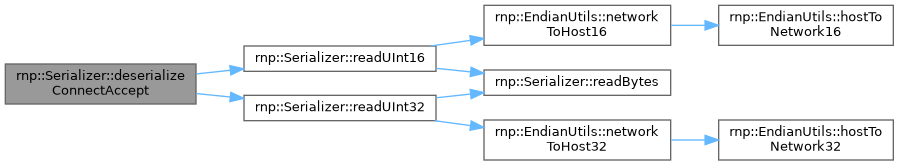

◆ deserializeConnectAccept()

PacketConnectAccept rnp::Serializer::deserializeConnectAccept ( )

inline

Deserialize CONNECT_ACCEPT packet.

Returns: Deserialized CONNECT_ACCEPT packet

Definition at line 340 of file Serializer.hpp.

References rnp::PacketConnectAccept::mtuPayloadBytes, readUInt16(), readUInt32(), rnp::PacketConnectAccept::serverCaps, rnp::PacketConnectAccept::sessionId, and rnp::PacketConnectAccept::tickRateHz.

Referenced by rnp::HandlerPacket::processPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ deserializeDisconnect()

PacketDisconnect rnp::Serializer::deserializeDisconnect ( )

inline

Deserialize DISCONNECT packet.

Returns: Deserialized DISCONNECT packet

Definition at line 360 of file Serializer.hpp.

References readUInt16(), and rnp::PacketDisconnect::reasonCode.

Referenced by rnp::HandlerPacket::processPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ deserializeEntityEvents()

std::vector< EventRecord > rnp::Serializer::deserializeEntityEvents ( std::size_t payloadSize )

inline

Deserialize multiple EventRecords from ENTITY_EVENT packet.

Parameters

payloadSize Total size of the payload to deserialize

Returns: Vector of deserialized event records

Definition at line 547 of file Serializer.hpp.

References buffer_, deserializeEventRecord(), and readPos_.

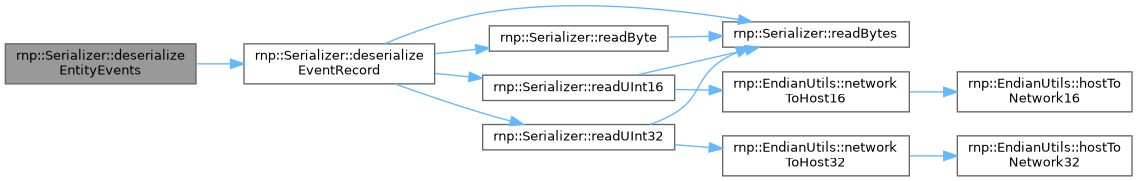

Here is the call graph for this function:

◆ deserializeEntityState()

EntityState rnp::Serializer::deserializeEntityState ( )

inline

Deserialize EntityState.

Returns: Deserialized entity state

Definition at line 389 of file Serializer.hpp.

References rnp::EntityState::healthPercent, rnp::EntityState::id, readByte(), readFloat(), readUInt16(), readUInt32(), rnp::EntityState::score, rnp::EntityState::stateFlags, rnp::EntityState::subtype, rnp::EntityState::type, rnp::EntityState::vx, rnp::EntityState::vy, rnp::EntityState::x, and rnp::EntityState::y.

Referenced by deserializeWorldState().

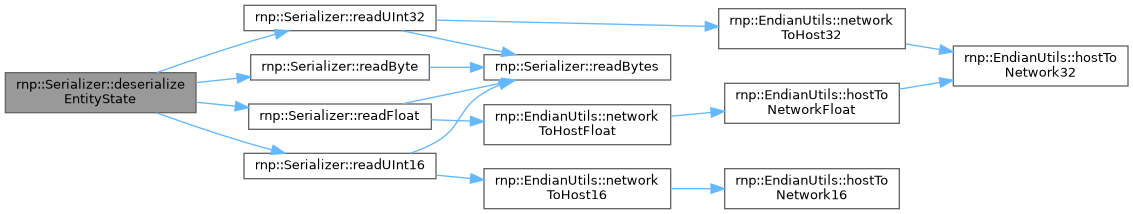

Here is the call graph for this function:

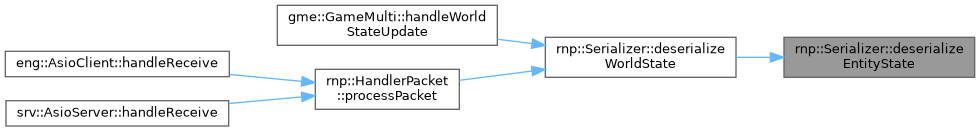

Here is the caller graph for this function:

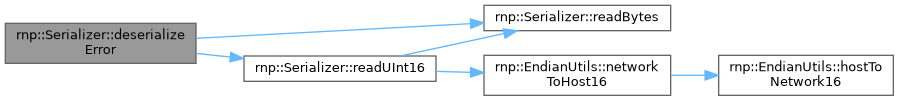

◆ deserializeError()

PacketError rnp::Serializer::deserializeError ( )

inline

Deserialize ERROR packet.

Returns: Deserialized ERROR packet

Definition at line 479 of file Serializer.hpp.

References rnp::PacketError::description, rnp::PacketError::errorCode, rnp::PacketError::msgLen, readBytes(), and readUInt16().

Referenced by rnp::HandlerPacket::processPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ deserializeEventRecord()

EventRecord rnp::Serializer::deserializeEventRecord ( )

inline

Deserialize EventRecord from ENTITY_EVENT packets.

Returns: Deserialized event record

Definition at line 514 of file Serializer.hpp.

References rnp::EventRecord::data, readByte(), readBytes(), readUInt16(), readUInt32(), and rnp::EventRecord::type.

Referenced by deserializeEntityEvents().

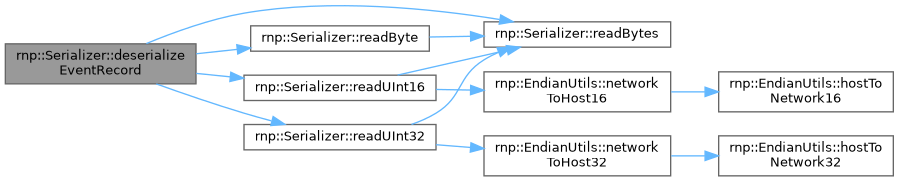

Here is the call graph for this function:

Here is the caller graph for this function:

◆ deserializeGameStart()

PacketGameStart rnp::Serializer::deserializeGameStart ( )

inline

Deserialize GAME_START packet.

Returns: Deserialized packet

Definition at line 903 of file Serializer.hpp.

References rnp::PacketGameStart::lobbyId, and readUInt32().

Referenced by gme::WaitingRoomScene::handleGameStart(), and rnp::HandlerPacket::processPacket().

Here is the call graph for this function:

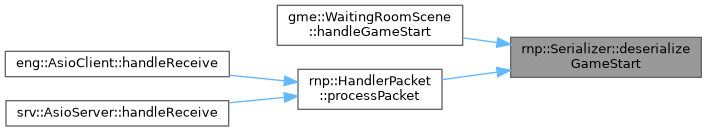

Here is the caller graph for this function:

◆ deserializeHeader()

PacketHeader rnp::Serializer::deserializeHeader ( )

inline

Deserialize packet header.

Returns: Deserialized header

Definition at line 291 of file Serializer.hpp.

References rnp::PacketHeader::length, readByte(), readUInt16(), readUInt32(), rnp::PacketHeader::sessionId, and rnp::PacketHeader::type.

Referenced by eng::AsioClient::handleReceive(), srv::AsioServer::handleReceive(), and rnp::HandlerPacket::processPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ deserializeInputData()

void rnp::Serializer::deserializeInputData	(	std::uint8_t &	keys,
		float &	mouseX,
		float &	mouseY,
		std::uint8_t &	mouseButtons,
		std::uint32_t &	timestamp )

inline

Deserialize input data from INPUT events.

Parameters

keys	Output keyboard input bitmask
mouseX	Output mouse X position
mouseY	Output mouse Y position
mouseButtons	Output mouse button bitmask
timestamp	Output input timestamp

Definition at line 589 of file Serializer.hpp.

References readByte(), readFloat(), and readUInt32().

Here is the call graph for this function:

◆ deserializeLobbyCreate()

PacketLobbyCreate rnp::Serializer::deserializeLobbyCreate ( )

inline

Deserialize LOBBY_CREATE packet.

Returns: Deserialized packet

Definition at line 793 of file Serializer.hpp.

References rnp::PacketLobbyCreate::gameMode, rnp::PacketLobbyCreate::lobbyName, rnp::PacketLobbyCreate::maxPlayers, rnp::PacketLobbyCreate::nameLen, readByte(), and readBytes().

Referenced by eng::AsioClient::processBusEvent(), and rnp::HandlerPacket::processPacket().

Here is the call graph for this function:

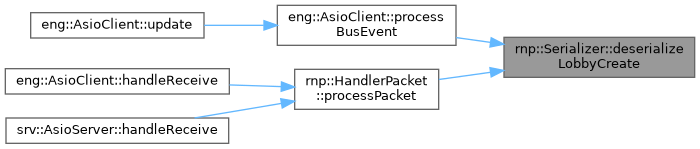

Here is the caller graph for this function:

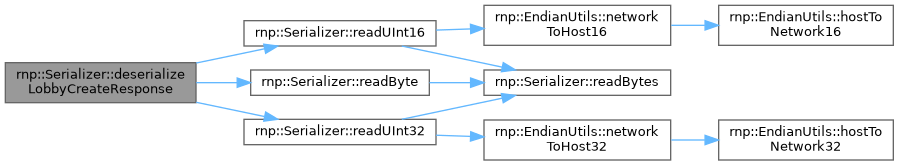

◆ deserializeLobbyCreateResponse()

PacketLobbyCreateResponse rnp::Serializer::deserializeLobbyCreateResponse ( )

inline

Deserialize LOBBY_CREATE_RESPONSE packet.

Returns: Deserialized packet

Definition at line 818 of file Serializer.hpp.

References rnp::PacketLobbyCreateResponse::errorCode, rnp::PacketLobbyCreateResponse::lobbyId, readByte(), readUInt16(), readUInt32(), and rnp::PacketLobbyCreateResponse::success.

Referenced by gme::CreateRoomScene::processEventBus(), and rnp::HandlerPacket::processPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ deserializeLobbyInfo()

LobbyInfo rnp::Serializer::deserializeLobbyInfo ( )

inline

Deserialize LobbyInfo structure.

Returns: Deserialized lobby info

Definition at line 726 of file Serializer.hpp.

References rnp::LobbyInfo::currentPlayers, rnp::LobbyInfo::gameMode, rnp::LobbyInfo::hostSessionId, rnp::LobbyInfo::lobbyId, rnp::LobbyInfo::lobbyName, rnp::LobbyInfo::maxPlayers, rnp::LobbyInfo::playerNames, readByte(), readBytes(), readUInt32(), and rnp::LobbyInfo::status.

Referenced by deserializeLobbyJoinResponse(), deserializeLobbyListResponse(), and deserializeLobbyUpdate().

Here is the call graph for this function:

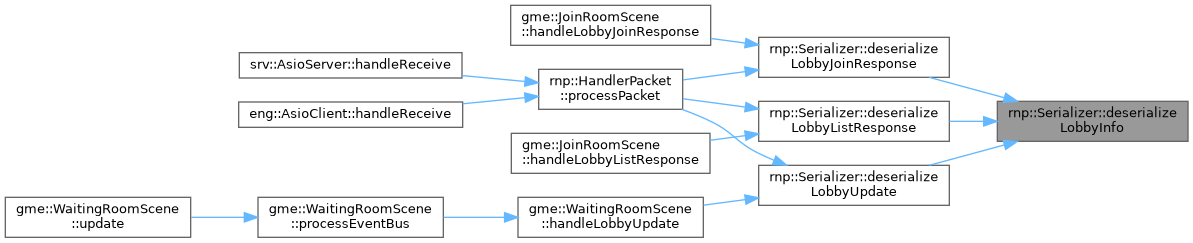

Here is the caller graph for this function:

◆ deserializeLobbyJoin()

PacketLobbyJoin rnp::Serializer::deserializeLobbyJoin ( )

inline

Deserialize LOBBY_JOIN packet.

Returns: Deserialized packet

Definition at line 837 of file Serializer.hpp.

References rnp::PacketLobbyJoin::lobbyId, and readUInt32().

Referenced by rnp::HandlerPacket::processPacket().

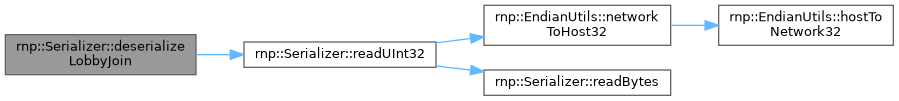

Here is the call graph for this function:

Here is the caller graph for this function:

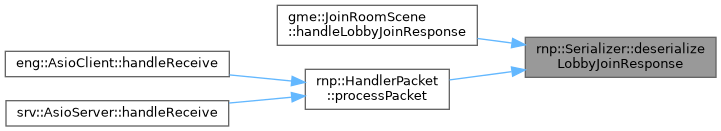

◆ deserializeLobbyJoinResponse()

PacketLobbyJoinResponse rnp::Serializer::deserializeLobbyJoinResponse ( )

inline

Deserialize LOBBY_JOIN_RESPONSE packet.

Returns: Deserialized packet

Definition at line 863 of file Serializer.hpp.

References deserializeLobbyInfo(), rnp::PacketLobbyJoinResponse::errorCode, rnp::PacketLobbyJoinResponse::lobbyId, rnp::PacketLobbyJoinResponse::lobbyInfo, readByte(), readUInt16(), readUInt32(), and rnp::PacketLobbyJoinResponse::success.

Referenced by gme::JoinRoomScene::handleLobbyJoinResponse(), and rnp::HandlerPacket::processPacket().

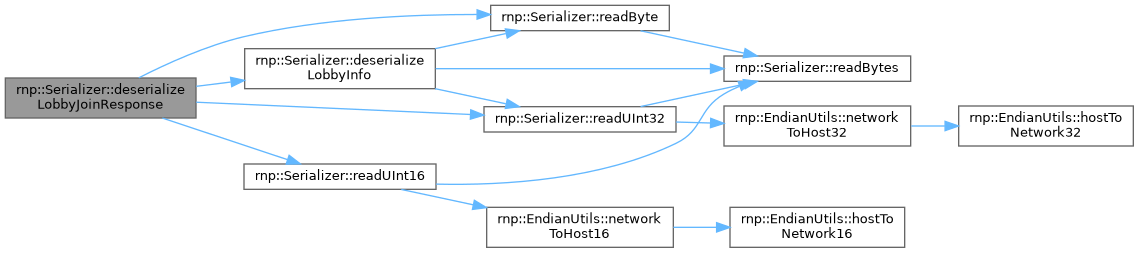

Here is the call graph for this function:

Here is the caller graph for this function:

◆ deserializeLobbyListResponse()

PacketLobbyListResponse rnp::Serializer::deserializeLobbyListResponse ( )

inline

Deserialize LOBBY_LIST_RESPONSE packet.

Returns: Deserialized packet

Definition at line 763 of file Serializer.hpp.

References deserializeLobbyInfo(), rnp::PacketLobbyListResponse::lobbies, rnp::PacketLobbyListResponse::lobbyCount, and readUInt16().

Referenced by gme::JoinRoomScene::handleLobbyListResponse(), and rnp::HandlerPacket::processPacket().

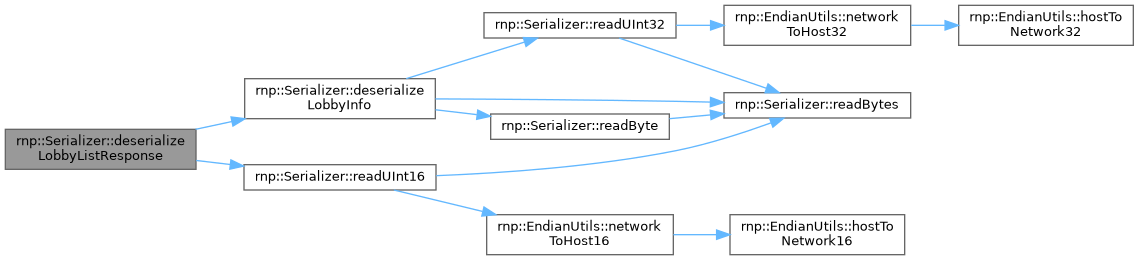

Here is the call graph for this function:

Here is the caller graph for this function:

◆ deserializeLobbyUpdate()

PacketLobbyUpdate rnp::Serializer::deserializeLobbyUpdate ( )

inline

Deserialize LOBBY_UPDATE packet.

Returns: Deserialized packet

Definition at line 886 of file Serializer.hpp.

References deserializeLobbyInfo(), and rnp::PacketLobbyUpdate::lobbyInfo.

Referenced by gme::WaitingRoomScene::handleLobbyUpdate(), and rnp::HandlerPacket::processPacket().

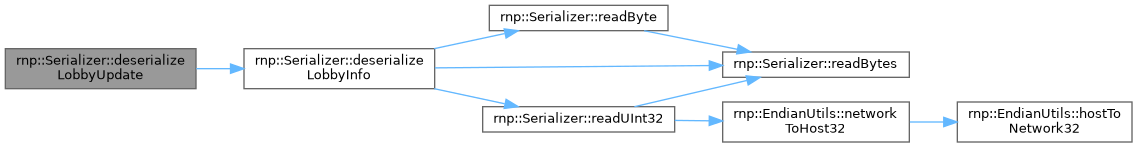

Here is the call graph for this function:

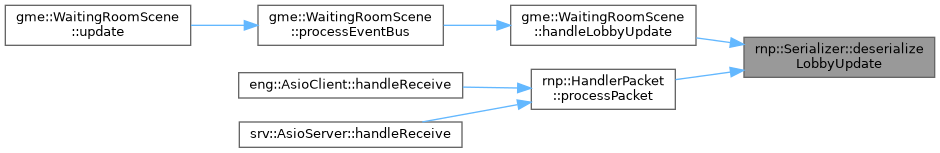

Here is the caller graph for this function:

◆ deserializePingPong()

PacketPingPong rnp::Serializer::deserializePingPong ( )

inline

Deserialize PING/PONG packet.

Returns: Deserialized PING/PONG packet

Definition at line 453 of file Serializer.hpp.

References rnp::PacketPingPong::nonce, readUInt32(), and rnp::PacketPingPong::sendTimeMs.

Referenced by rnp::HandlerPacket::processPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ deserializeStartGameRequest()

PacketStartGameRequest rnp::Serializer::deserializeStartGameRequest ( )

inline

Deserialize START_GAME_REQUEST packet.

Returns: Deserialized packet

Definition at line 920 of file Serializer.hpp.

References rnp::PacketStartGameRequest::lobbyId, and readUInt32().

Referenced by rnp::HandlerPacket::processPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ deserializeWorldState()

PacketWorldState rnp::Serializer::deserializeWorldState ( )

inline

Deserialize WORLD_STATE packet.

Returns: Deserialized WORLD_STATE packet

Definition at line 424 of file Serializer.hpp.

References deserializeEntityState(), rnp::PacketWorldState::entities, rnp::PacketWorldState::entityCount, readUInt16(), readUInt32(), and rnp::PacketWorldState::serverTick.

Referenced by gme::GameMulti::handleWorldStateUpdate(), and rnp::HandlerPacket::processPacket().

Here is the call graph for this function:

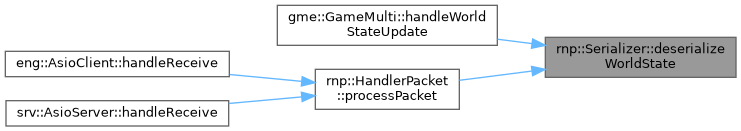

Here is the caller graph for this function:

◆ getData()

const std::vector< std::uint8_t > & rnp::Serializer::getData ( ) const

inline

Get the serialized data.

Returns: Vector containing the serialized bytes

Definition at line 111 of file Serializer.hpp.

References buffer_.

Here is the caller graph for this function:

◆ getSize()

std::size_t rnp::Serializer::getSize ( ) const

inline

Get the current size of serialized data.

Returns: Size in bytes

Definition at line 117 of file Serializer.hpp.

References writePos_.

Referenced by eng::AsioClient::createLobby(), and eng::AsioClient::requestLobbyList().

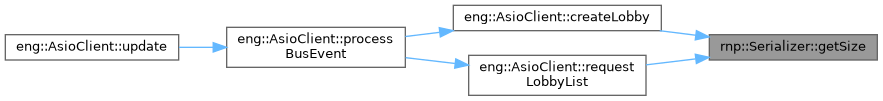

Here is the caller graph for this function:

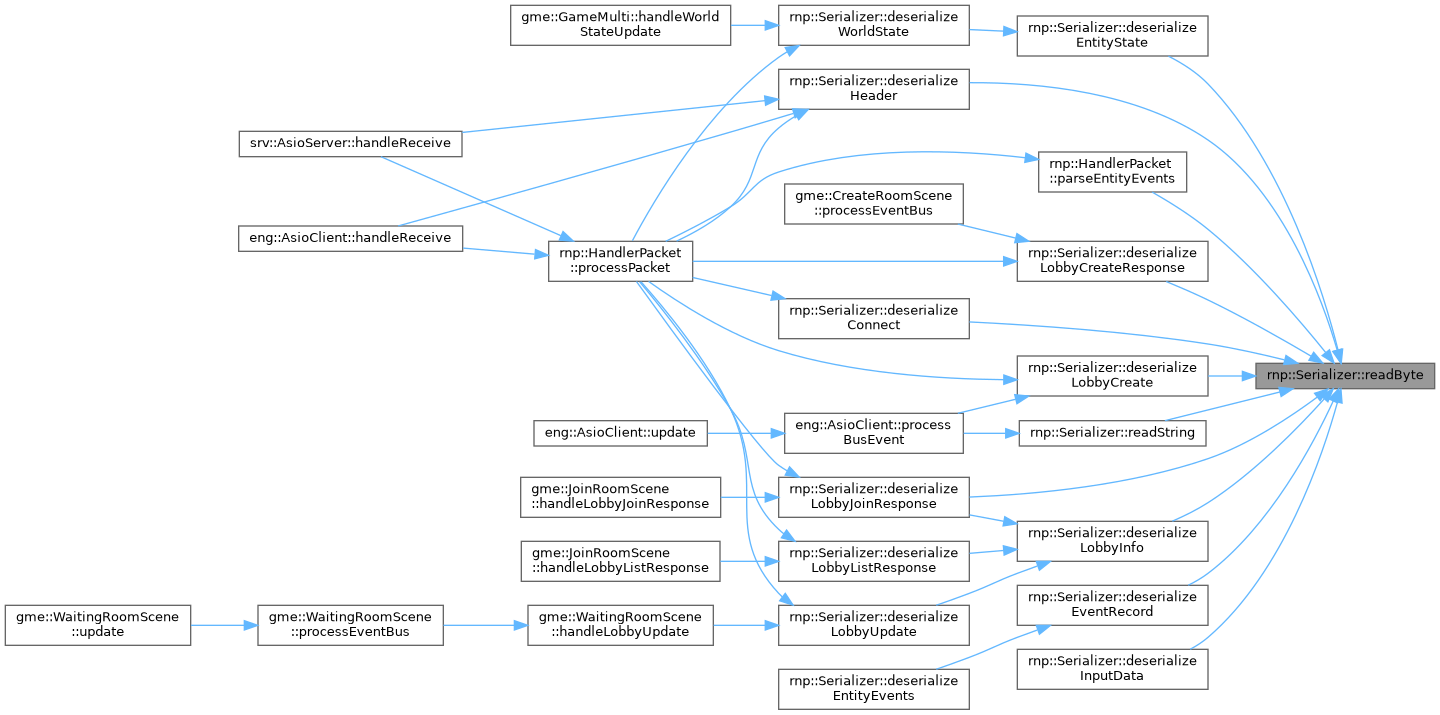

◆ readByte()

std::uint8_t rnp::Serializer::readByte ( )

inline

Read a single byte.

Returns: Byte value

Definition at line 213 of file Serializer.hpp.

References readBytes().

Referenced by deserializeConnect(), deserializeEntityState(), deserializeEventRecord(), deserializeHeader(), deserializeInputData(), deserializeLobbyCreate(), deserializeLobbyCreateResponse(), deserializeLobbyInfo(), deserializeLobbyJoinResponse(), rnp::HandlerPacket::parseEntityEvents(), and readString().

Here is the call graph for this function:

Here is the caller graph for this function:

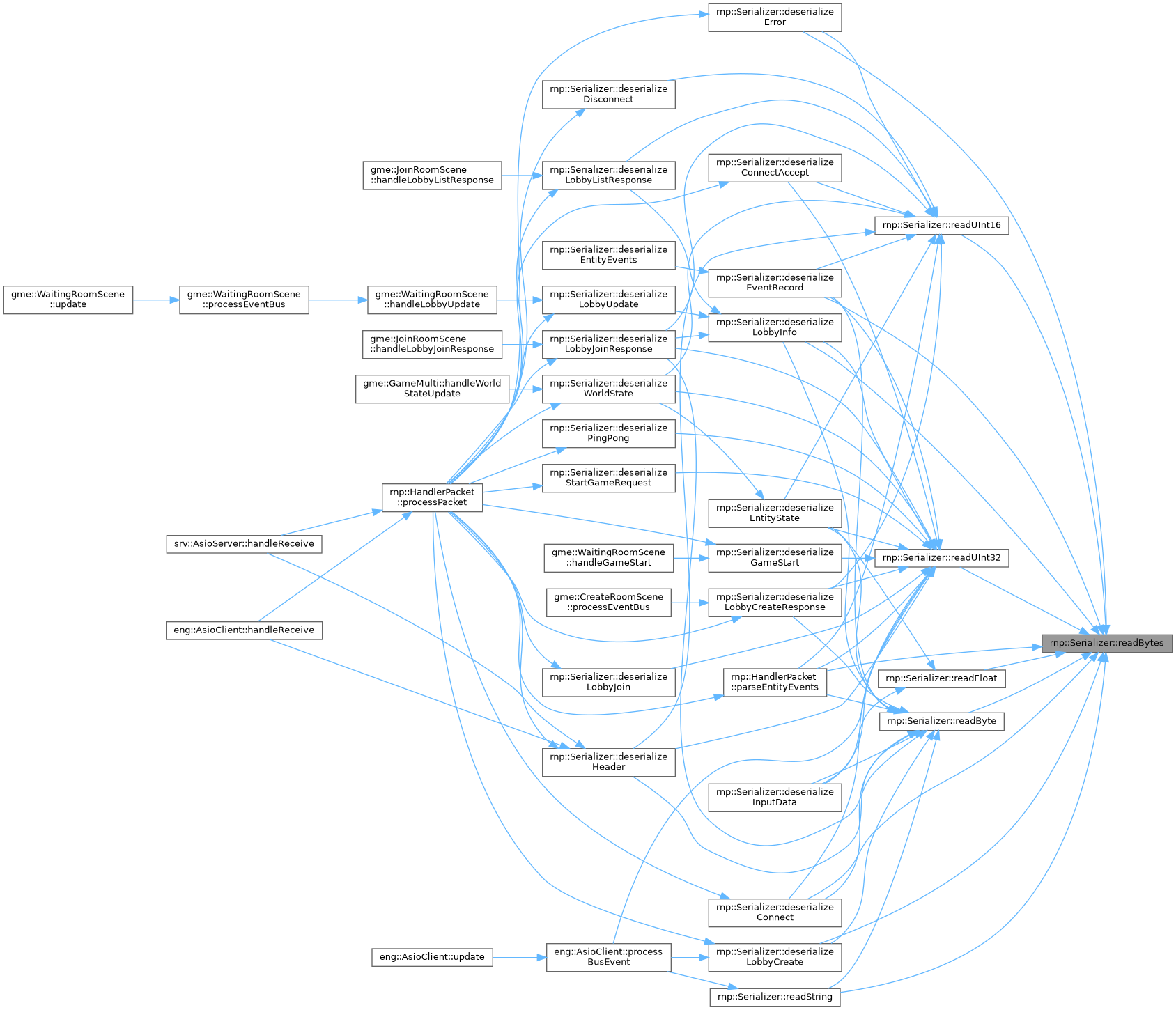

◆ readBytes()

void rnp::Serializer::readBytes	(	void *	data,
		std::size_t	size )

inline

Read raw bytes.

Parameters

data	Pointer to destination buffer
size	Number of bytes to read

Definition at line 198 of file Serializer.hpp.

References buffer_, and readPos_.

Referenced by deserializeConnect(), deserializeError(), deserializeEventRecord(), deserializeLobbyCreate(), deserializeLobbyInfo(), rnp::HandlerPacket::parseEntityEvents(), readByte(), readFloat(), readString(), readUInt16(), and readUInt32().

Here is the caller graph for this function:

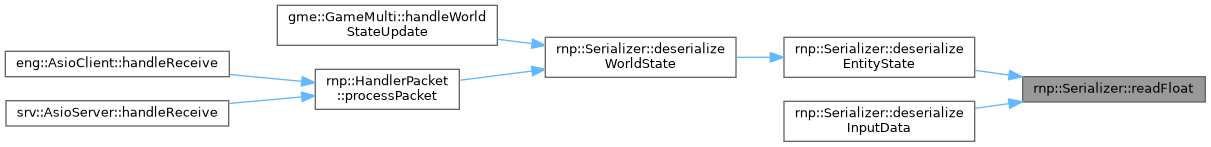

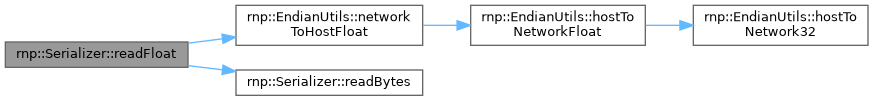

◆ readFloat()

float rnp::Serializer::readFloat ( )

inline

Read a float (network byte order)

Returns: Float in host byte order

Definition at line 246 of file Serializer.hpp.

References rnp::EndianUtils::networkToHostFloat(), and readBytes().

Referenced by deserializeEntityState(), and deserializeInputData().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readString()

std::string rnp::Serializer::readString ( std::size_t maxLength )

inline

Read a string with length prefix.

Parameters

maxLength Maximum expected length

Returns: The read string

Definition at line 258 of file Serializer.hpp.

References readByte(), and readBytes().

Referenced by eng::AsioClient::processBusEvent().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readUInt16()

std::uint16_t rnp::Serializer::readUInt16 ( )

inline

Read a 16-bit integer (network byte order)

Returns: 16-bit integer in host byte order

Definition at line 224 of file Serializer.hpp.

References rnp::EndianUtils::networkToHost16(), and readBytes().

Referenced by deserializeConnectAccept(), deserializeDisconnect(), deserializeEntityState(), deserializeError(), deserializeEventRecord(), deserializeHeader(), deserializeLobbyCreateResponse(), deserializeLobbyJoinResponse(), deserializeLobbyListResponse(), deserializeWorldState(), and rnp::HandlerPacket::parseEntityEvents().

Here is the call graph for this function:

Here is the caller graph for this function:

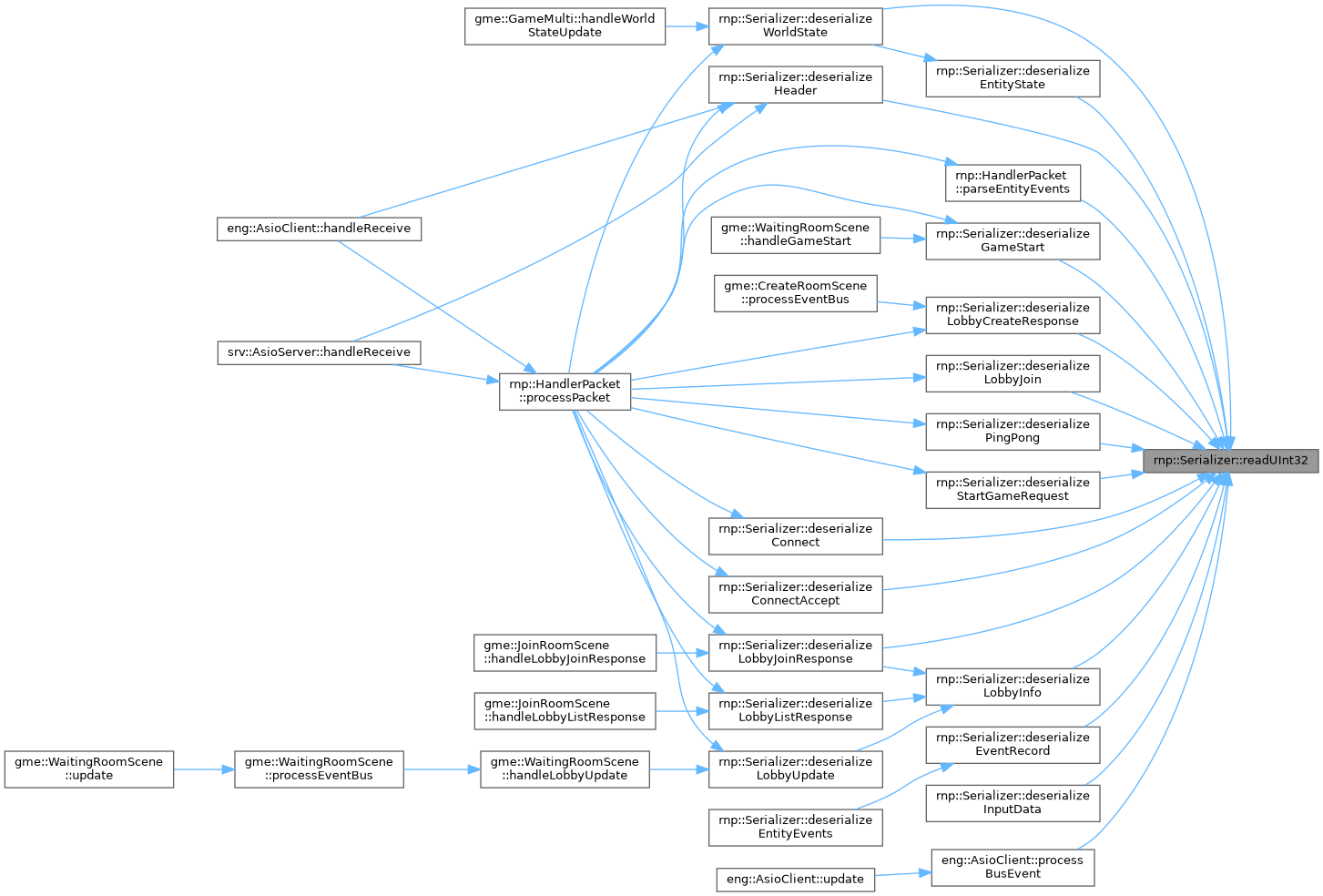

◆ readUInt32()

std::uint32_t rnp::Serializer::readUInt32 ( )

inline

Read a 32-bit integer (network byte order)

Returns: 32-bit integer in host byte order

Definition at line 235 of file Serializer.hpp.

References rnp::EndianUtils::networkToHost32(), and readBytes().

Referenced by deserializeConnect(), deserializeConnectAccept(), deserializeEntityState(), deserializeEventRecord(), deserializeGameStart(), deserializeHeader(), deserializeInputData(), deserializeLobbyCreateResponse(), deserializeLobbyInfo(), deserializeLobbyJoin(), deserializeLobbyJoinResponse(), deserializePingPong(), deserializeStartGameRequest(), deserializeWorldState(), rnp::HandlerPacket::parseEntityEvents(), and eng::AsioClient::processBusEvent().

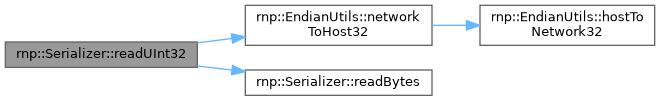

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reset()

void rnp::Serializer::reset ( )

inline

Reset the serializer for reuse.

Definition at line 100 of file Serializer.hpp.

References buffer_, readPos_, and writePos_.

◆ serializeConnect()

void rnp::Serializer::serializeConnect ( const PacketConnect & packet )

inline

Serialize CONNECT packet.

Parameters

packet CONNECT packet to serialize

Definition at line 304 of file Serializer.hpp.

References rnp::PacketConnect::clientCaps, rnp::PacketConnect::nameLen, rnp::PacketConnect::playerName, writeByte(), writeBytes(), and writeUInt32().

Referenced by eng::AsioClient::sendConnect().

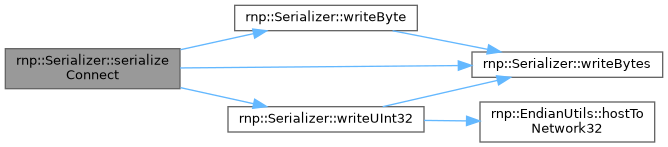

Here is the call graph for this function:

Here is the caller graph for this function:

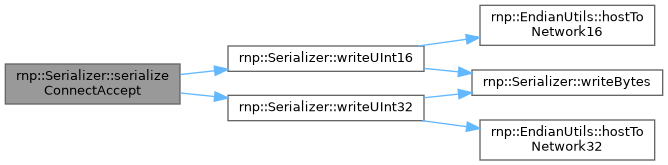

◆ serializeConnectAccept()

void rnp::Serializer::serializeConnectAccept ( const PacketConnectAccept & packet )

inline

Serialize CONNECT_ACCEPT packet.

Parameters

packet CONNECT_ACCEPT packet to serialize

Definition at line 328 of file Serializer.hpp.

References rnp::PacketConnectAccept::mtuPayloadBytes, rnp::PacketConnectAccept::serverCaps, rnp::PacketConnectAccept::sessionId, rnp::PacketConnectAccept::tickRateHz, writeUInt16(), and writeUInt32().

Referenced by srv::AsioServer::sendConnectAccept().

Here is the call graph for this function:

Here is the caller graph for this function:

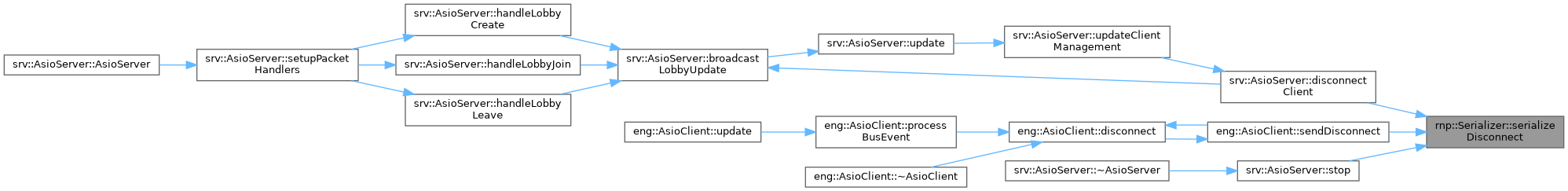

◆ serializeDisconnect()

void rnp::Serializer::serializeDisconnect ( const PacketDisconnect & packet )

inline

Serialize DISCONNECT packet.

Parameters

packet DISCONNECT packet to serialize

Definition at line 354 of file Serializer.hpp.

References rnp::PacketDisconnect::reasonCode, and writeUInt16().

Referenced by srv::AsioServer::disconnectClient(), eng::AsioClient::sendDisconnect(), and srv::AsioServer::stop().

Here is the call graph for this function:

Here is the caller graph for this function:

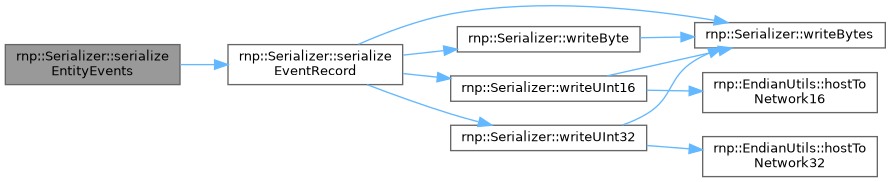

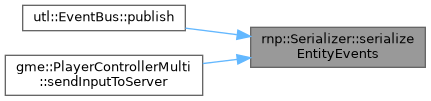

◆ serializeEntityEvents()

void rnp::Serializer::serializeEntityEvents ( const std::vector< EventRecord > & events )

inline

Serialize multiple EventRecords for ENTITY_EVENT packet.

Parameters

events Vector of event records to serialize

Definition at line 534 of file Serializer.hpp.

References serializeEventRecord().

Referenced by utl::EventBus::publish(), and gme::PlayerControllerMulti::sendInputToServer().

Here is the call graph for this function:

Here is the caller graph for this function:

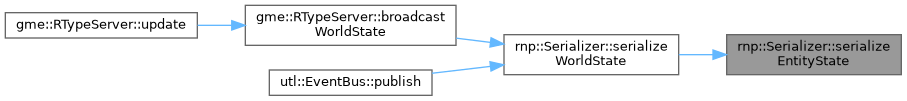

◆ serializeEntityState()

void rnp::Serializer::serializeEntityState ( const EntityState & entity )

inline

Serialize EntityState.

Parameters

entity Entity state to serialize

Definition at line 371 of file Serializer.hpp.

References rnp::EntityState::healthPercent, rnp::EntityState::id, rnp::EntityState::score, rnp::EntityState::stateFlags, rnp::EntityState::subtype, rnp::EntityState::type, rnp::EntityState::vx, rnp::EntityState::vy, writeByte(), writeFloat(), writeUInt16(), writeUInt32(), rnp::EntityState::x, and rnp::EntityState::y.

Referenced by serializeWorldState().

Here is the call graph for this function:

Here is the caller graph for this function:

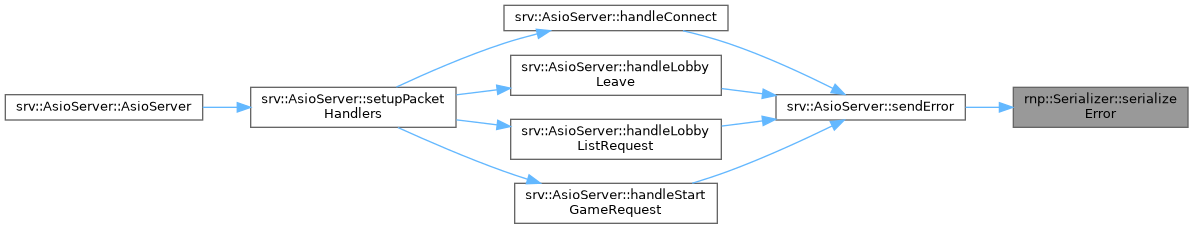

◆ serializeError()

void rnp::Serializer::serializeError ( const PacketError & packet )

inline

Serialize ERROR packet.

Parameters

packet ERROR packet to serialize

Definition at line 465 of file Serializer.hpp.

References rnp::PacketError::description, rnp::PacketError::errorCode, rnp::PacketError::msgLen, writeBytes(), and writeUInt16().

Referenced by srv::AsioServer::sendError().

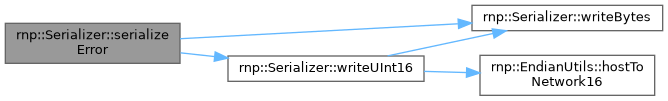

Here is the call graph for this function:

Here is the caller graph for this function:

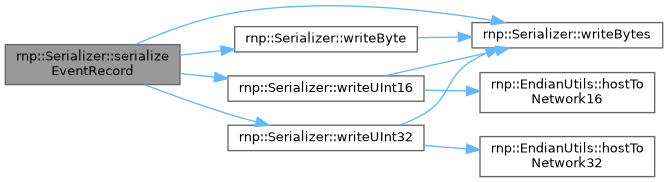

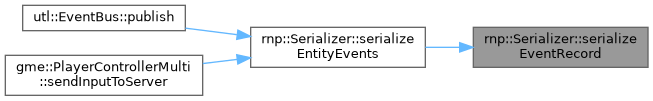

◆ serializeEventRecord()

void rnp::Serializer::serializeEventRecord ( const EventRecord & event )

inline

Serialize EventRecord for ENTITY_EVENT packets.

Parameters

event Event record to serialize

Definition at line 498 of file Serializer.hpp.

References rnp::EventRecord::data, rnp::EventRecord::entityId, rnp::EventRecord::type, writeByte(), writeBytes(), writeUInt16(), and writeUInt32().

Referenced by serializeEntityEvents().

Here is the call graph for this function:

Here is the caller graph for this function:

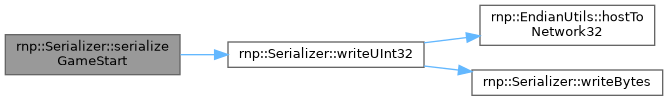

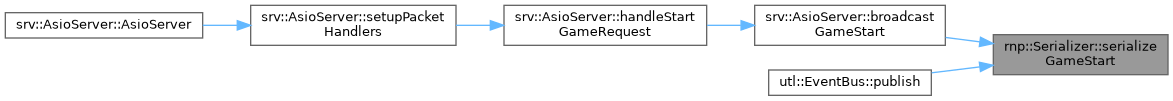

◆ serializeGameStart()

void rnp::Serializer::serializeGameStart ( const PacketGameStart & packet )

inline

Serialize GAME_START packet.

Parameters

packet The packet to serialize

Definition at line 897 of file Serializer.hpp.

References rnp::PacketGameStart::lobbyId, and writeUInt32().

Referenced by srv::AsioServer::broadcastGameStart(), and utl::EventBus::publish().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ serializeHeader()

void rnp::Serializer::serializeHeader ( const PacketHeader & header )

inline

Serialize packet header.

Parameters

header Header to serialize

Definition at line 280 of file Serializer.hpp.

References rnp::PacketHeader::length, rnp::PacketHeader::sessionId, rnp::PacketHeader::type, writeByte(), writeUInt16(), and writeUInt32().

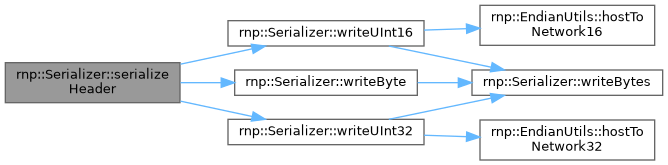

Here is the call graph for this function:

Here is the caller graph for this function:

◆ serializeInputData()

void rnp::Serializer::serializeInputData	(	std::uint8_t	keys,
		float	mouseX,
		float	mouseY,
		std::uint8_t	mouseButtons,
		std::uint32_t	timestamp )

inline

Serialize input data for INPUT events.

Parameters

keys	Keyboard input bitmask
mouseX	Mouse X position
mouseY	Mouse Y position
mouseButtons	Mouse button bitmask
timestamp	Input timestamp

Definition at line 571 of file Serializer.hpp.

References writeByte(), writeFloat(), and writeUInt32().

Referenced by createInputEvent().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ serializeLobbyCreate()

void rnp::Serializer::serializeLobbyCreate ( const PacketLobbyCreate & packet )

inline

Serialize LOBBY_CREATE packet.

Parameters

packet The packet to serialize

Definition at line 781 of file Serializer.hpp.

References rnp::PacketLobbyCreate::gameMode, rnp::PacketLobbyCreate::lobbyName, rnp::PacketLobbyCreate::maxPlayers, rnp::PacketLobbyCreate::nameLen, writeByte(), and writeBytes().

Referenced by eng::AsioClient::createLobby(), and utl::EventBus::publish().

Here is the call graph for this function:

Here is the caller graph for this function:

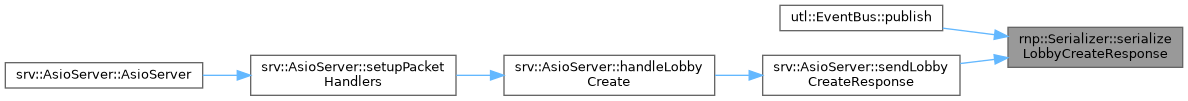

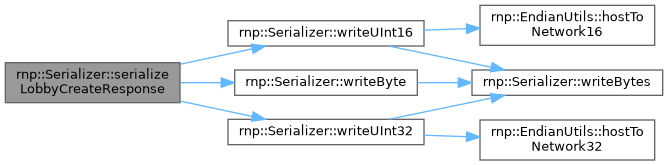

◆ serializeLobbyCreateResponse()

void rnp::Serializer::serializeLobbyCreateResponse ( const PacketLobbyCreateResponse & packet )

inline

Serialize LOBBY_CREATE_RESPONSE packet.

Parameters

packet The packet to serialize

Definition at line 807 of file Serializer.hpp.

References rnp::PacketLobbyCreateResponse::errorCode, rnp::PacketLobbyCreateResponse::lobbyId, rnp::PacketLobbyCreateResponse::success, writeByte(), writeUInt16(), and writeUInt32().

Referenced by utl::EventBus::publish(), and srv::AsioServer::sendLobbyCreateResponse().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ serializeLobbyInfo()

void rnp::Serializer::serializeLobbyInfo ( const LobbyInfo & lobbyInfo )

inline

Serialize LobbyInfo structure.

Parameters

lobbyInfo The lobby info to serialize

Definition at line 704 of file Serializer.hpp.

References rnp::LobbyInfo::currentPlayers, rnp::LobbyInfo::gameMode, rnp::LobbyInfo::hostSessionId, rnp::LobbyInfo::lobbyId, rnp::LobbyInfo::lobbyName, rnp::LobbyInfo::maxPlayers, rnp::LobbyInfo::playerNames, rnp::LobbyInfo::status, writeByte(), writeBytes(), and writeUInt32().

Referenced by serializeLobbyJoinResponse(), serializeLobbyListResponse(), and serializeLobbyUpdate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ serializeLobbyJoin()

void rnp::Serializer::serializeLobbyJoin ( const PacketLobbyJoin & packet )

inline

Serialize LOBBY_JOIN packet.

Parameters

packet The packet to serialize

Definition at line 831 of file Serializer.hpp.

References rnp::PacketLobbyJoin::lobbyId, and writeUInt32().

Referenced by eng::AsioClient::joinLobby(), and utl::EventBus::publish().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ serializeLobbyJoinResponse()

void rnp::Serializer::serializeLobbyJoinResponse ( const PacketLobbyJoinResponse & packet )

inline

Serialize LOBBY_JOIN_RESPONSE packet.

Parameters

packet The packet to serialize

Definition at line 848 of file Serializer.hpp.

References rnp::PacketLobbyJoinResponse::errorCode, rnp::PacketLobbyJoinResponse::lobbyId, rnp::PacketLobbyJoinResponse::lobbyInfo, serializeLobbyInfo(), rnp::PacketLobbyJoinResponse::success, writeByte(), writeUInt16(), and writeUInt32().

Referenced by utl::EventBus::publish(), and srv::AsioServer::sendLobbyJoinResponse().

Here is the call graph for this function:

Here is the caller graph for this function:

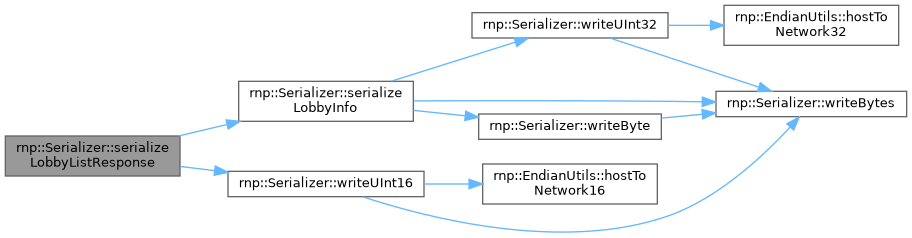

◆ serializeLobbyListResponse()

void rnp::Serializer::serializeLobbyListResponse ( const PacketLobbyListResponse & packet )

inline

Serialize LOBBY_LIST_RESPONSE packet.

Parameters

packet The packet to serialize

Definition at line 750 of file Serializer.hpp.

References rnp::PacketLobbyListResponse::lobbies, rnp::PacketLobbyListResponse::lobbyCount, serializeLobbyInfo(), and writeUInt16().

Referenced by utl::EventBus::publish(), and srv::AsioServer::sendLobbyList().

Here is the call graph for this function:

Here is the caller graph for this function:

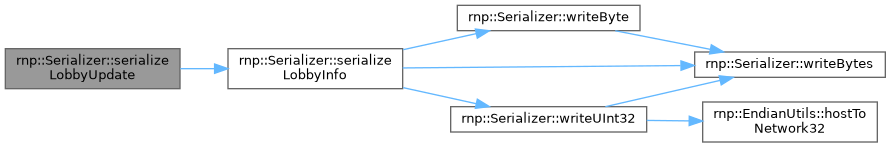

◆ serializeLobbyUpdate()

void rnp::Serializer::serializeLobbyUpdate ( const PacketLobbyUpdate & packet )

inline

Serialize LOBBY_UPDATE packet.

Parameters

packet The packet to serialize

Definition at line 880 of file Serializer.hpp.

References rnp::PacketLobbyUpdate::lobbyInfo, and serializeLobbyInfo().

Referenced by srv::AsioServer::broadcastLobbyUpdate(), and utl::EventBus::publish().

Here is the call graph for this function:

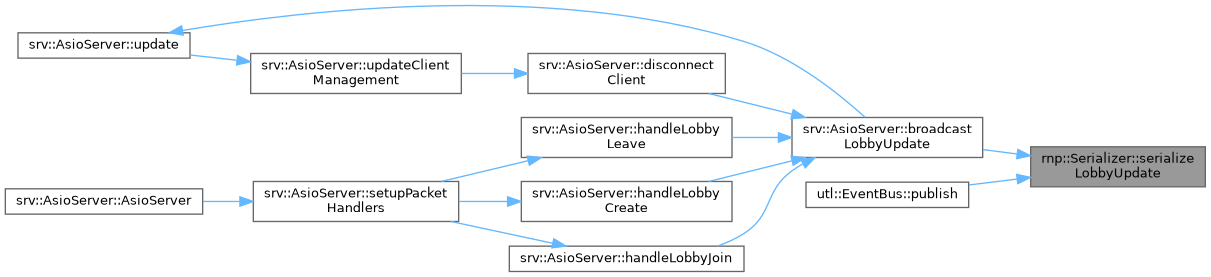

Here is the caller graph for this function:

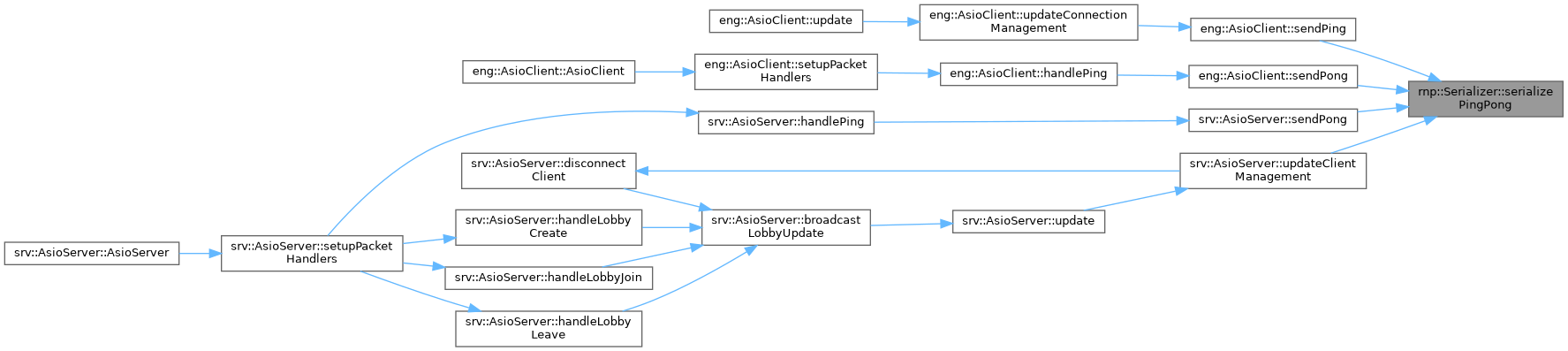

◆ serializePingPong()

void rnp::Serializer::serializePingPong ( const PacketPingPong & packet )

inline

Serialize PING/PONG packet.

Parameters

packet PING/PONG packet to serialize

Definition at line 443 of file Serializer.hpp.

References rnp::PacketPingPong::nonce, rnp::PacketPingPong::sendTimeMs, and writeUInt32().

Referenced by eng::AsioClient::sendPing(), eng::AsioClient::sendPong(), srv::AsioServer::sendPong(), and srv::AsioServer::updateClientManagement().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ serializeStartGameRequest()

void rnp::Serializer::serializeStartGameRequest ( const PacketStartGameRequest & packet )

inline

Serialize START_GAME_REQUEST packet.

Parameters

packet The packet to serialize

Definition at line 914 of file Serializer.hpp.

References rnp::PacketStartGameRequest::lobbyId, and writeUInt32().

Referenced by eng::AsioClient::requestStartGame().

Here is the call graph for this function:

Here is the caller graph for this function:

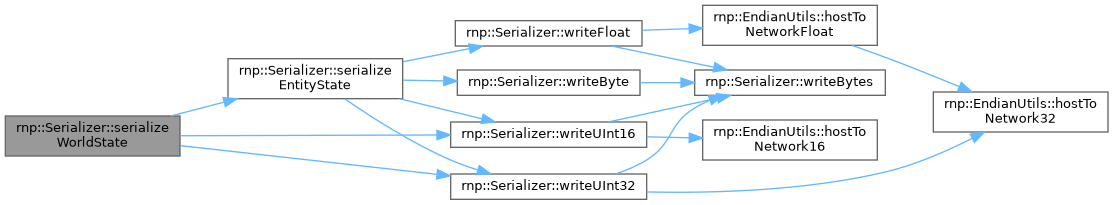

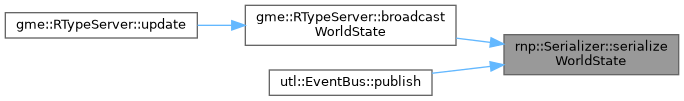

◆ serializeWorldState()

void rnp::Serializer::serializeWorldState ( const PacketWorldState & packet )

inline

Serialize WORLD_STATE packet.

Parameters

packet WORLD_STATE packet to serialize

Definition at line 409 of file Serializer.hpp.

References rnp::PacketWorldState::entities, rnp::PacketWorldState::entityCount, serializeEntityState(), rnp::PacketWorldState::serverTick, writeUInt16(), and writeUInt32().

Referenced by gme::RTypeServer::broadcastWorldState(), and utl::EventBus::publish().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeByte()

void rnp::Serializer::writeByte ( std::uint8_t value )

inline

Write a single byte.

Parameters

value Byte value to write

Definition at line 142 of file Serializer.hpp.

References writeBytes().

Referenced by utl::EventBus::publish(), serializeConnect(), serializeEntityState(), serializeEventRecord(), serializeHeader(), serializeInputData(), serializeLobbyCreate(), serializeLobbyCreateResponse(), serializeLobbyInfo(), serializeLobbyJoinResponse(), and writeString().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeBytes()

void rnp::Serializer::writeBytes	(	const void *	data,
		std::size_t	size )

inline

Write raw bytes.

Parameters

data	Pointer to data
size	Number of bytes to write

Definition at line 124 of file Serializer.hpp.

References buffer_, rnp::MAX_PAYLOAD, and writePos_.

Referenced by eng::AsioClient::processBusEvent(), serializeConnect(), serializeError(), serializeEventRecord(), serializeLobbyCreate(), serializeLobbyInfo(), writeByte(), writeFloat(), writeString(), writeUInt16(), and writeUInt32().

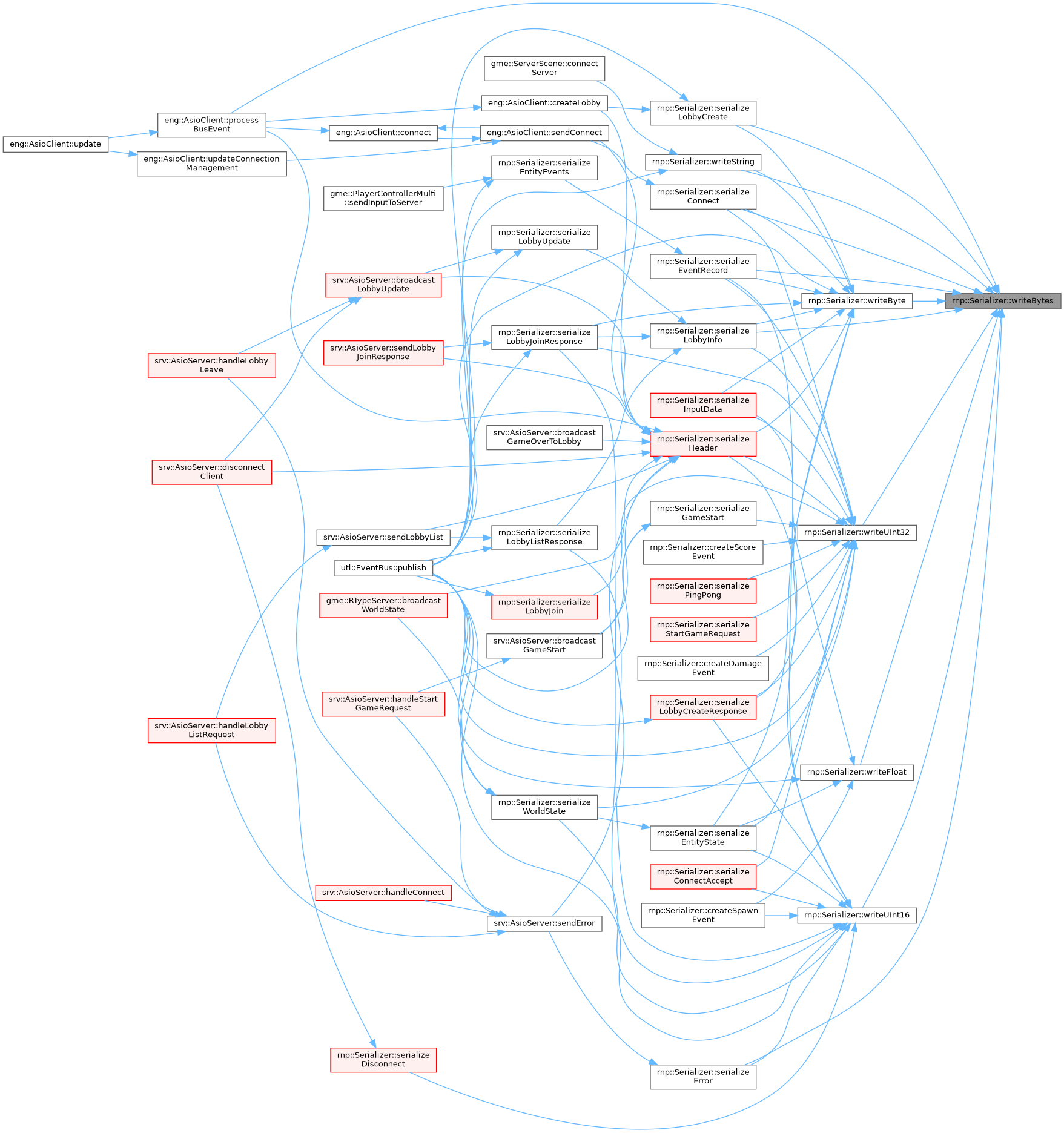

Here is the caller graph for this function:

◆ writeFloat()

void rnp::Serializer::writeFloat ( float value )

inline

Write a float (network byte order)

Parameters

value Float to write

Definition at line 168 of file Serializer.hpp.

References rnp::EndianUtils::hostToNetworkFloat(), and writeBytes().

Referenced by createSpawnEvent(), utl::EventBus::publish(), serializeEntityState(), and serializeInputData().

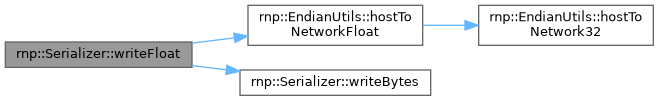

Here is the call graph for this function:

Here is the caller graph for this function:

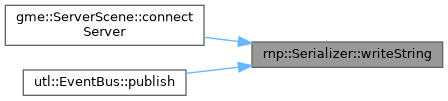

◆ writeString()

void rnp::Serializer::writeString	(	const std::string &	str,
		std::size_t	maxLength )

inline

Write a string with length prefix.

Parameters

str	String to write
maxLength	Maximum allowed length

Definition at line 179 of file Serializer.hpp.

References writeByte(), and writeBytes().

Referenced by gme::ServerScene::connectServer(), and utl::EventBus::publish().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeUInt16()

void rnp::Serializer::writeUInt16 ( std::uint16_t value )

inline

Write a 16-bit integer (network byte order)

Parameters

value 16-bit integer to write

Definition at line 148 of file Serializer.hpp.

References rnp::EndianUtils::hostToNetwork16(), and writeBytes().

Referenced by createSpawnEvent(), utl::EventBus::publish(), serializeConnectAccept(), serializeDisconnect(), serializeEntityState(), serializeError(), serializeEventRecord(), serializeHeader(), serializeLobbyCreateResponse(), serializeLobbyJoinResponse(), serializeLobbyListResponse(), and serializeWorldState().

Here is the call graph for this function:

Here is the caller graph for this function:

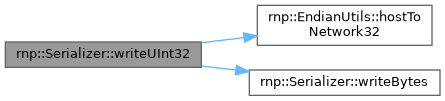

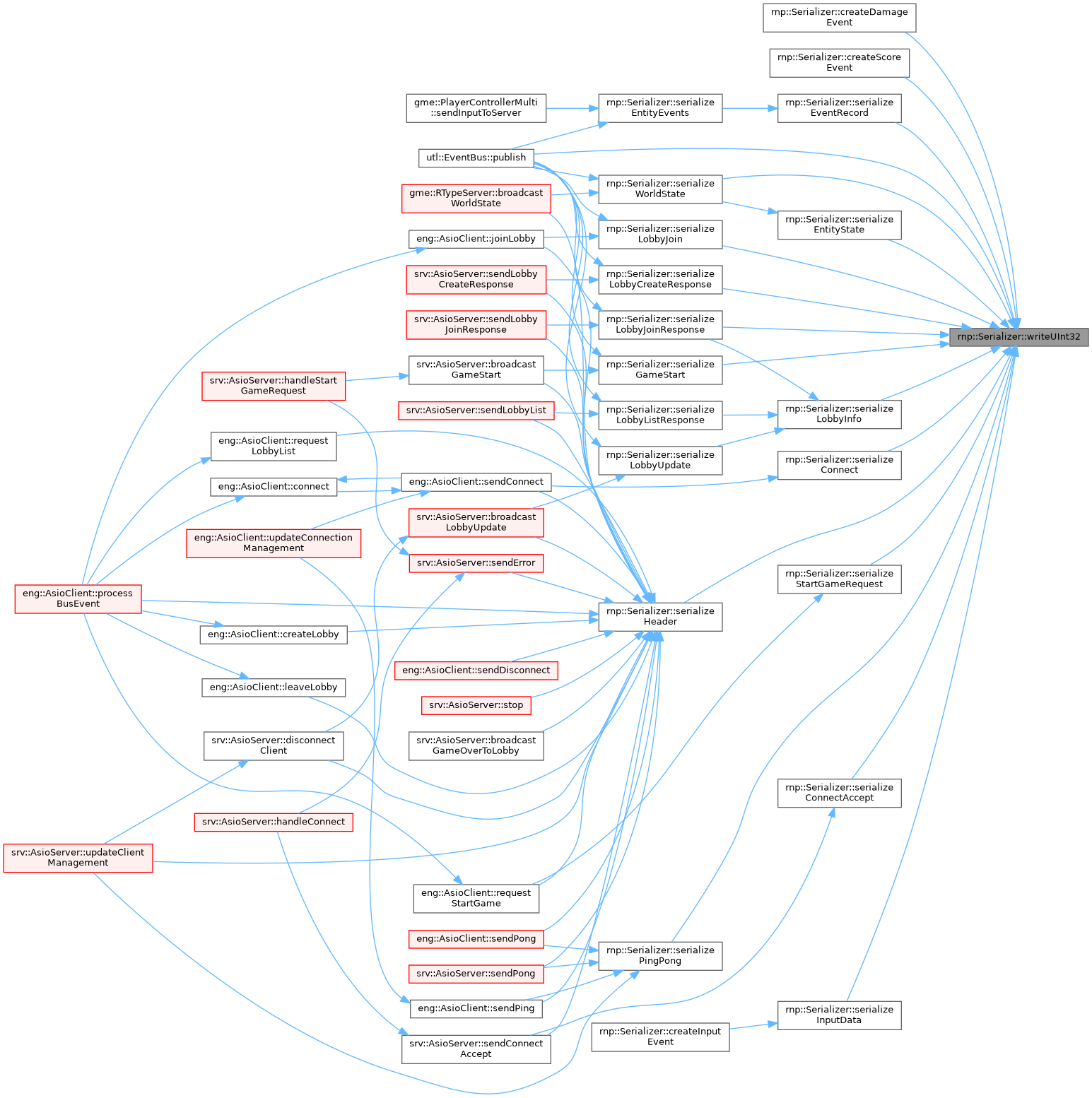

◆ writeUInt32()

void rnp::Serializer::writeUInt32 ( std::uint32_t value )

inline

Write a 32-bit integer (network byte order)

Parameters

value 32-bit integer to write

Definition at line 158 of file Serializer.hpp.

References rnp::EndianUtils::hostToNetwork32(), and writeBytes().

Referenced by createDamageEvent(), createScoreEvent(), utl::EventBus::publish(), serializeConnect(), serializeConnectAccept(), serializeEntityState(), serializeEventRecord(), serializeGameStart(), serializeHeader(), serializeInputData(), serializeLobbyCreateResponse(), serializeLobbyInfo(), serializeLobbyJoin(), serializeLobbyJoinResponse(), serializePingPong(), serializeStartGameRequest(), and serializeWorldState().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ buffer_

std::vector<std::uint8_t> rnp::Serializer::buffer_

private

Definition at line 67 of file Serializer.hpp.

Referenced by deserializeEntityEvents(), getData(), readBytes(), reset(), Serializer(), Serializer(), and writeBytes().

◆ readPos_

std::size_t rnp::Serializer::readPos_

private

Definition at line 69 of file Serializer.hpp.

Referenced by deserializeEntityEvents(), readBytes(), and reset().

◆ writePos_

std::size_t rnp::Serializer::writePos_

private

Definition at line 68 of file Serializer.hpp.

Referenced by getSize(), reset(), and writeBytes().

The documentation for this class was generated from the following file:

/home/runner/work/R-Type/R-Type/modules/Interfaces/include/Interfaces/Protocol/Serializer.hpp

Public Member Functions

Static Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Serializer() [1/3]

◆ Serializer() [2/3]

◆ Serializer() [3/3]

Member Function Documentation

◆ createDamageEvent()

◆ createDespawnEvent()

◆ createInputEvent()

◆ createScoreEvent()

◆ createSpawnEvent()

◆ deserializeConnect()

◆ deserializeConnectAccept()

◆ deserializeDisconnect()

◆ deserializeEntityEvents()

◆ deserializeEntityState()

◆ deserializeError()

◆ deserializeEventRecord()

◆ deserializeGameStart()

◆ deserializeHeader()

◆ deserializeInputData()

◆ deserializeLobbyCreate()

◆ deserializeLobbyCreateResponse()

◆ deserializeLobbyInfo()

◆ deserializeLobbyJoin()

◆ deserializeLobbyJoinResponse()

◆ deserializeLobbyListResponse()

◆ deserializeLobbyUpdate()

◆ deserializePingPong()

◆ deserializeStartGameRequest()

◆ deserializeWorldState()

◆ getData()

◆ getSize()

◆ readByte()

◆ readBytes()

◆ readFloat()

◆ readString()

◆ readUInt16()

◆ readUInt32()

◆ reset()

◆ serializeConnect()

◆ serializeConnectAccept()

◆ serializeDisconnect()

◆ serializeEntityEvents()

◆ serializeEntityState()

◆ serializeError()

◆ serializeEventRecord()

◆ serializeGameStart()

◆ serializeHeader()

◆ serializeInputData()

◆ serializeLobbyCreate()

◆ serializeLobbyCreateResponse()

◆ serializeLobbyInfo()

◆ serializeLobbyJoin()

◆ serializeLobbyJoinResponse()

◆ serializeLobbyListResponse()

◆ serializeLobbyUpdate()

◆ serializePingPong()

◆ serializeStartGameRequest()

◆ serializeWorldState()

◆ writeByte()

◆ writeBytes()

◆ writeFloat()

◆ writeString()

◆ writeUInt16()

◆ writeUInt32()

Member Data Documentation

◆ buffer_

◆ readPos_

◆ writePos_
