Classes
struct	EntityState
	Entity state for WORLD_STATE packet. More...

struct	EventRecord
	Event record for ENTITY_EVENT packets (TLV format) More...

struct	FragmentHeader
	Fragmentation header (when FRAG flag is set) More...

struct	PacketAck
	ACK packet payload. More...

struct	PacketConnect
	CONNECT packet payload. More...

struct	PacketConnectAccept
	CONNECT_ACCEPT packet payload. More...

struct	PacketDisconnect
	DISCONNECT packet payload. More...

struct	PacketError
	ERROR packet payload. More...

struct	PacketHeader
	Packet header according to RNP specification (Big Endian) Total size: 16 bytes. More...

struct	PacketPingPong
	PING/PONG packet payload. More...

struct	PacketWorldState
	WORLD_STATE packet payload. More...

Enumerations
enum class	PacketType : std::uint8_t { CONNECT = 0x01 , DISCONNECT = 0x02 , WORLD_STATE = 0x03 , PING = 0x04 , PONG = 0x05 , PACKET_ERROR = 0x06 , ACK = 0x07 , ENTITY_EVENT = 0x08 , CONNECT_ACCEPT = 0x09 , PLAYER_INPUT = 0x03 }
	Packet types according to RNP specification. More...

enum class	PacketFlags : std::uint16_t { NONE = 0x0000 , ACK_REQ = 0x0001 , RELIABLE = 0x0002 , FRAG = 0x0004 , COMPRESSED = 0x0008 }
	Packet flags for reliability and fragmentation. More...

enum class	DisconnectReason : std::uint16_t { UNSPECIFIED = 0 , CLIENT_REQUEST = 1 , TIMEOUT = 2 , PROTOCOL_ERROR = 3 , SERVER_SHUTDOWN = 4 , SERVER_FULL = 5 , BANNED = 6 }
	Disconnect reason codes. More...

enum class	ErrorCode : std::uint16_t { INVALID_PAYLOAD = 1 , UNAUTHORIZED_SESSION = 2 , RATE_LIMITED = 3 , INTERNAL_ERROR = 4 }
	Error codes. More...

enum class	EventType : std::uint8_t { SPAWN = 0x01 , DESPAWN = 0x02 , DAMAGE = 0x03 , SCORE = 0x04 , POWERUP = 0x05 , INPUT = 0x06 , CUSTOM = 0xFF }
	Event types for ENTITY_EVENT packets. More...

enum class	EntityType : std::uint16_t { PLAYER = 0x01 , ENEMY = 0x02 , PROJECTILE = 0x03 , POWERUP = 0x04 , OBSTACLE = 0x05 }
	Entity types for world state. More...

Functions
std::vector< std::uint8_t >	serializeEvents (const std::vector< EventRecord > &events)
	Serialize events in ENTITY_EVENT format (TLV with entity_id) Format per event: type(1) \| entity_id(4, BE) \| data_len(1) \| data(data_len)

std::vector< EventRecord >	deserializeEvents (const std::uint8_t *payload, const std::size_t length)
	Deserialize ENTITY_EVENT payload into event records Format per event: type(1) \| entity_id(4, BE) \| data_len(1) \| data(data_len)

std::vector< uint8_t >	serializeHeader (const PacketHeader &header)
	Serialize packet header (Big Endian as per RNP spec)

std::vector< uint8_t >	serialize (const PacketHeader &header, const uint8_t *payload=nullptr)
	Serialize packet with header and optional payload (Big Endian)

PacketHeader	deserializeHeader (const uint8_t *data, const std::size_t size)
	Deserialize packet header (Big Endian)

Variables
constexpr std::uint8_t	PROTOCOL_VERSION = 1

constexpr std::size_t	MAX_PAYLOAD = 512

Enumeration Type Documentation

◆ DisconnectReason

enum class rnp::DisconnectReason : std::uint16_t

strong

Disconnect reason codes.

Enumerator
UNSPECIFIED
CLIENT_REQUEST
TIMEOUT
PROTOCOL_ERROR
SERVER_SHUTDOWN
SERVER_FULL
BANNED

Definition at line 52 of file Protocol.hpp.

◆ EntityType

enum class rnp::EntityType : std::uint16_t

strong

Entity types for world state.

Enumerator
PLAYER
ENEMY
PROJECTILE
POWERUP
OBSTACLE

Definition at line 91 of file Protocol.hpp.

◆ ErrorCode

enum class rnp::ErrorCode : std::uint16_t

strong

Error codes.

Enumerator
INVALID_PAYLOAD
UNAUTHORIZED_SESSION
RATE_LIMITED
INTERNAL_ERROR

Definition at line 66 of file Protocol.hpp.

◆ EventType

enum class rnp::EventType : std::uint8_t

strong

Event types for ENTITY_EVENT packets.

Enumerator
SPAWN
DESPAWN
DAMAGE
SCORE
POWERUP
INPUT
CUSTOM

Definition at line 77 of file Protocol.hpp.

◆ PacketFlags

enum class rnp::PacketFlags : std::uint16_t

strong

Packet flags for reliability and fragmentation.

Enumerator
NONE
ACK_REQ
RELIABLE
FRAG
COMPRESSED

Definition at line 40 of file Protocol.hpp.

◆ PacketType

enum class rnp::PacketType : std::uint8_t

strong

Packet types according to RNP specification.

Enumerator
CONNECT
DISCONNECT
WORLD_STATE
PING
PONG
PACKET_ERROR
ACK
ENTITY_EVENT
CONNECT_ACCEPT
PLAYER_INPUT

Definition at line 23 of file Protocol.hpp.

Function Documentation

◆ deserializeEvents()

std::vector< EventRecord > rnp::deserializeEvents	(	const std::uint8_t *	payload,
		const std::size_t	length )

inline

Deserialize ENTITY_EVENT payload into event records Format per event: type(1) | entity_id(4, BE) | data_len(1) | data(data_len)

Definition at line 253 of file Protocol.hpp.

References rnp::EventRecord::data.

Referenced by eng::AsioClient::processEntityEvent(), and srv::AsioServer::processPacket().

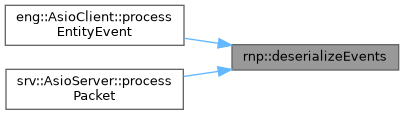

Here is the caller graph for this function:

◆ deserializeHeader()

PacketHeader rnp::deserializeHeader	(	const uint8_t *	data,
		const std::size_t	size )

inline

Deserialize packet header (Big Endian)

Definition at line 345 of file Protocol.hpp.

References rnp::PacketHeader::flags, rnp::PacketHeader::length, rnp::PacketHeader::reserved, rnp::PacketHeader::sequence, rnp::PacketHeader::sessionId, and rnp::PacketHeader::type.

Referenced by eng::AsioClient::processPacket(), and srv::AsioServer::processPacket().

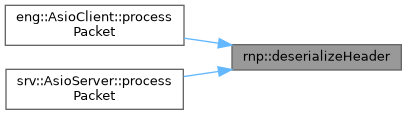

Here is the caller graph for this function:

◆ serialize()

std::vector< uint8_t > rnp::serialize	(	const PacketHeader &	header,
		const uint8_t *	payload = nullptr )

inline

Serialize packet with header and optional payload (Big Endian)

Definition at line 330 of file Protocol.hpp.

References rnp::PacketHeader::length, and serializeHeader().

Referenced by srv::AsioServer::broadcastEntityEvents(), srv::AsioServer::broadcastEvents(), eng::AsioClient::sendAck(), srv::AsioServer::sendAck(), srv::AsioServer::sendConnectAccept(), eng::AsioClient::sendConnectWithCaps(), eng::AsioClient::sendDisconnect(), srv::AsioServer::sendEntityEvent(), srv::AsioServer::sendError(), srv::AsioServer::sendEvents(), eng::AsioClient::sendPing(), eng::AsioClient::sendPing(), eng::AsioClient::sendPlayerInput(), eng::AsioClient::sendPlayerInputAsEvent(), srv::AsioServer::sendPong(), srv::AsioServer::sendPong(), srv::AsioServer::sendWorldState(), and srv::AsioServer::sendWorldState().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ serializeEvents()

std::vector< std::uint8_t > rnp::serializeEvents ( const std::vector< EventRecord > & events )

inline

Serialize events in ENTITY_EVENT format (TLV with entity_id) Format per event: type(1) | entity_id(4, BE) | data_len(1) | data(data_len)

Definition at line 217 of file Protocol.hpp.

References MAX_PAYLOAD.

Referenced by srv::AsioServer::broadcastEntityEvents(), srv::AsioServer::broadcastEvents(), srv::AsioServer::sendEntityEvent(), srv::AsioServer::sendEvents(), and eng::AsioClient::sendPlayerInputAsEvent().

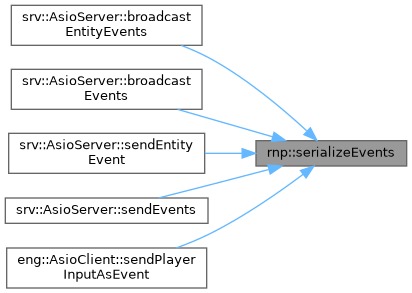

Here is the caller graph for this function:

◆ serializeHeader()

std::vector< uint8_t > rnp::serializeHeader ( const PacketHeader & header )

inline

Serialize packet header (Big Endian as per RNP spec)

Definition at line 292 of file Protocol.hpp.

References rnp::PacketHeader::flags, rnp::PacketHeader::length, rnp::PacketHeader::reserved, rnp::PacketHeader::sequence, rnp::PacketHeader::sessionId, and rnp::PacketHeader::type.

Referenced by serialize().

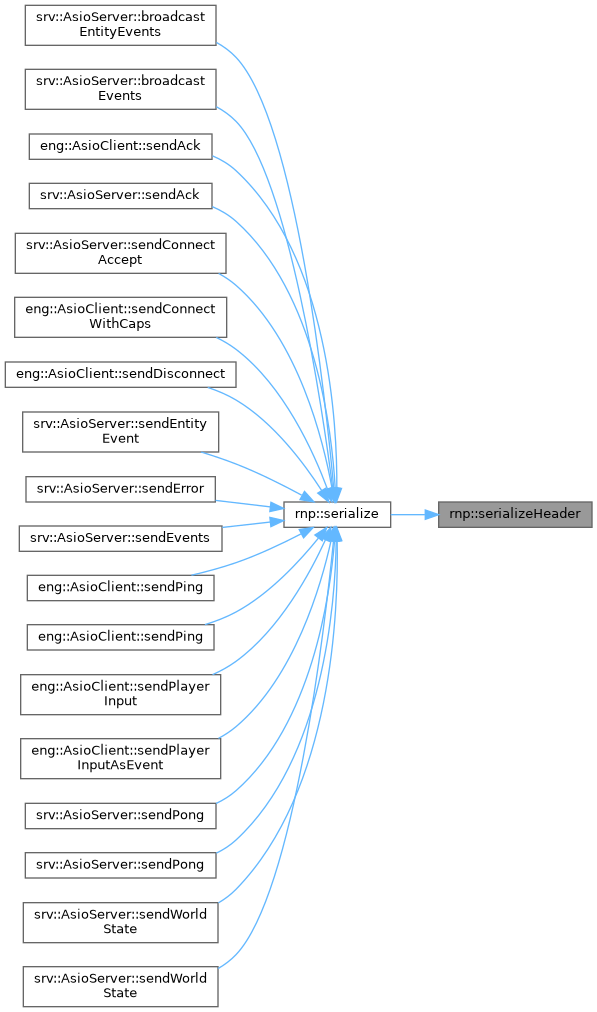

Here is the caller graph for this function:

Variable Documentation

◆ MAX_PAYLOAD

std::size_t rnp::MAX_PAYLOAD = 512

inlineconstexpr

Definition at line 18 of file Protocol.hpp.

Referenced by serializeEvents().

◆ PROTOCOL_VERSION

std::uint8_t rnp::PROTOCOL_VERSION = 1

inlineconstexpr

Definition at line 17 of file Protocol.hpp.
