Main multiplayer game scene handling networked gameplay. More...

#include <GameMulti.hpp>

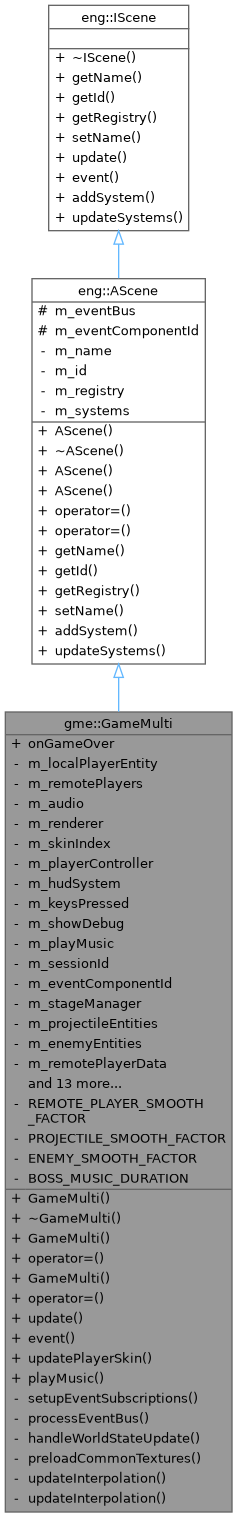

Inheritance diagram for gme::GameMulti:

Collaboration diagram for gme::GameMulti:

Classes
struct	PendingInput
	Input command pending server acknowledgment. More...

Public Member Functions
	GameMulti (eng::id assignedId, const std::shared_ptr< eng::IRenderer > &renderer, const std::shared_ptr< eng::IAudio > &audio, float skinIndex, bool &showDebug, uint32_t sessionId)
	Constructor.

	~GameMulti () override=default
	Destructor.

	GameMulti (const GameMulti &other)=delete
	Deleted copy constructor (non-copyable)

GameMulti &	operator= (const GameMulti &other)=delete
	Deleted copy assignment operator (non-copyable)

	GameMulti (GameMulti &&other)=delete
	Deleted move constructor (non-movable)

GameMulti &	operator= (GameMulti &&other)=delete
	Deleted move assignment operator (non-movable)

void	update (float dt, const eng::WindowSize &size) override
	Update the game scene (called each frame)

void	event (const eng::Event &event) override
	Handle input events.

void	updatePlayerSkin ()
	Update the local player's visual skin/appearance.

bool &	playMusic ()
	Get reference to music playback flag.

Public Member Functions inherited from eng::AScene
	AScene (const id assignedId)

	~AScene () override=default

	AScene (const AScene &other)=delete

	AScene (AScene &&other)=delete

AScene &	operator= (const AScene &other)=delete

AScene &	operator= (AScene &&other)=delete

std::string &	getName () override

id	getId () const override

ecs::Registry &	getRegistry () override

void	setName (const std::string &newName) override

void	addSystem (std::unique_ptr< ecs::ISystem > system) override

void	updateSystems (const float dt) override

Public Member Functions inherited from eng::IScene
virtual	~IScene ()=default

Public Attributes
std::function< void()>	onGameOver
	Callback invoked when game ends.

Private Member Functions
void	setupEventSubscriptions () const
	Subscribe to event bus events.

void	processEventBus ()
	Process pending events from the event bus.

void	handleWorldStateUpdate (const utl::Event &event)
	Handle world state update from server.

void	preloadCommonTextures ()
	Preload commonly used textures.

void	updateInterpolation (std::unordered_map< uint32_t, InterpolationData > &dataMap, std::unordered_map< uint32_t, ecs::Entity > &entityMap, float smoothFactor, float dt, ecs::Registry &registry)
	Update entity position interpolation.

void	updateInterpolation (std::unordered_map< uint32_t, InterpolationData > &dataMap, std::unordered_map< uint32_t, ecs::Entity > &entityMap, float smoothFactor, float dt, ecs::Registry &registry) const
	Update entity position interpolation (const version)

Private Attributes
ecs::Entity	m_localPlayerEntity
	Local player entity.

std::unordered_map< uint32_t, ecs::Entity >	m_remotePlayers
	Map of session ID to remote player entities.

const std::shared_ptr< eng::IAudio > &	m_audio
	Audio interface reference.

const std::shared_ptr< eng::IRenderer > &	m_renderer
	Renderer interface reference.

float	m_skinIndex
	Local player skin index.

std::unique_ptr< PlayerControllerMulti >	m_playerController
	Player input controller.

std::unique_ptr< HUDSystem >	m_hudSystem
	HUD rendering system.

std::unordered_map< eng::Key, bool >	m_keysPressed
	Current key press states.

bool &	m_showDebug
	Debug mode flag reference.

bool	m_playMusic = false
	Music playback flag.

uint32_t	m_sessionId
	Local player session ID.

uint32_t	m_eventComponentId = 10
	Event bus component ID.

std::unique_ptr< StageManager >	m_stageManager
	Stage/level manager.

std::unordered_map< uint32_t, ecs::Entity >	m_projectileEntities
	Map of projectile ID to entity.

std::unordered_map< uint32_t, ecs::Entity >	m_enemyEntities
	Map of enemy ID to entity.

std::unordered_map< uint32_t, InterpolationData >	m_remotePlayerData
	Interpolation data for remote players.

std::unordered_map< uint32_t, InterpolationData >	m_projectileData
	Interpolation data for projectiles.

std::unordered_map< uint32_t, InterpolationData >	m_enemyData
	Interpolation data for enemies.

std::unordered_map< uint32_t, uint32_t >	m_playerSkinMap
	Map of player session ID to skin index.

std::deque< PendingInput >	m_inputHistory
	History of unacknowledged inputs.

uint32_t	m_lastAckSeqId = 0
	Last acknowledged input sequence ID.

bool	m_starfieldCreated = false
	Flag indicating if starfield background was created.

ecs::Entity	m_beginSoundEntity {}
	Entity for game start sound.

ecs::Entity	m_bossMusicEntity {}
	Entity for boss music.

float	m_bossMusicTimer = 0.0f
	Timer for boss music duration.

bool	m_bossMusicStarted = false
	Flag indicating if boss music has started.

std::unordered_set< std::string >	m_loadedTextures
	Cache of loaded texture paths.

std::unordered_set< std::string >	m_loadedFonts
	Cache of loaded font paths.

bool	m_firstWorldState = true
	Flag indicating if this is the first world state (for player skin init)

Static Private Attributes
static constexpr float	REMOTE_PLAYER_SMOOTH_FACTOR = 0.25f
	Interpolation speed for remote players.

static constexpr float	PROJECTILE_SMOOTH_FACTOR = 0.5f
	Interpolation speed for projectiles.

static constexpr float	ENEMY_SMOOTH_FACTOR = 0.18f
	Interpolation speed for enemies.

static constexpr float	BOSS_MUSIC_DURATION = 40.0f
	Duration of boss music in seconds.

Additional Inherited Members
Protected Attributes inherited from eng::AScene
utl::EventBus &	m_eventBus = utl::EventBus::getInstance()

std::uint32_t	m_eventComponentId = 0

Detailed Description

Main multiplayer game scene handling networked gameplay.

This scene manages the core multiplayer game loop including:

Network synchronization with game server
Local and remote player entity management
Entity interpolation for smooth rendering
Client-side prediction for responsive controls
Enemy and projectile synchronization
HUD and game state display
Audio management (music and sound effects)
Stage progression

The scene uses event bus communication to receive world state updates from the network client and applies interpolation to create smooth visuals despite network latency and packet timing.

Definition at line 67 of file GameMulti.hpp.

Constructor & Destructor Documentation

◆ GameMulti() [1/3]

gme::GameMulti::GameMulti	(	eng::id	assignedId,
		const std::shared_ptr< eng::IRenderer > &	renderer,
		const std::shared_ptr< eng::IAudio > &	audio,
		float	skinIndex,
		bool &	showDebug,
		uint32_t	sessionId )

Constructor.

Parameters

assignedId	Scene ID assigned by the engine
renderer	Shared pointer to the renderer interface
audio	Shared pointer to the audio interface
skinIndex	Player skin/appearance index
showDebug	Reference to debug mode flag
sessionId	Network session ID of the local player

Definition at line 16 of file gameMulti.cpp.

References utl::Path::Audio::AUDIO_BEGIN, ecs::IComponent::id, m_beginSoundEntity, m_hudSystem, m_loadedFonts, m_loadedTextures, m_localPlayerEntity, m_playerController, m_playerSkinMap, m_sessionId, m_stageManager, preloadCommonTextures(), setupEventSubscriptions(), utl::GameConfig::Player::SPRITE_HEIGHT, ecs::Scale::x, ecs::Transform::x, and ecs::Transform::y.

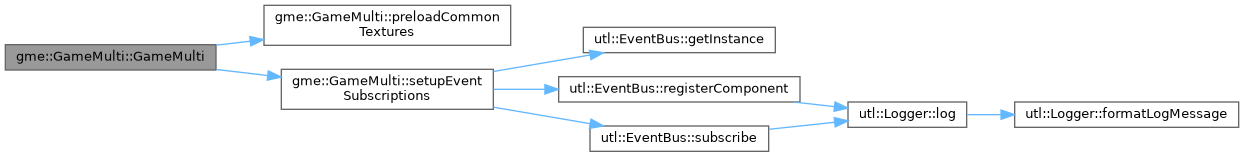

Here is the call graph for this function:

◆ ~GameMulti()

gme::GameMulti::~GameMulti ( )

overridedefault

Destructor.

◆ GameMulti() [2/3]

gme::GameMulti::GameMulti ( const GameMulti & other )

delete

Deleted copy constructor (non-copyable)

◆ GameMulti() [3/3]

gme::GameMulti::GameMulti ( GameMulti && other )

delete

Deleted move constructor (non-movable)

Member Function Documentation

◆ event()

void gme::GameMulti::event ( const eng::Event & event )

overridevirtual

Handle input events.

Parameters

event Input event (keyboard, mouse, etc.)

Implements eng::IScene.

Definition at line 766 of file gameMulti.cpp.

◆ handleWorldStateUpdate()

void gme::GameMulti::handleWorldStateUpdate ( const utl::Event & event )

private

Handle world state update from server.

Parameters

event World state event containing entity data

Updates entity positions, creates/destroys entities as needed

Definition at line 217 of file gameMulti.cpp.

Here is the call graph for this function:

◆ operator=() [1/2]

GameMulti & gme::GameMulti::operator= ( const GameMulti & other )

delete

Deleted copy assignment operator (non-copyable)

◆ operator=() [2/2]

GameMulti & gme::GameMulti::operator= ( GameMulti && other )

delete

Deleted move assignment operator (non-movable)

◆ playMusic()

bool & gme::GameMulti::playMusic ( )

inline

Get reference to music playback flag.

Returns: Reference to music flag

Definition at line 120 of file GameMulti.hpp.

References m_playMusic.

◆ preloadCommonTextures()

void gme::GameMulti::preloadCommonTextures ( )

private

Preload commonly used textures.

Loads textures into cache to avoid runtime loading hitches

Definition at line 150 of file gameMulti.cpp.

References utl::Path::Texture::TEXTURE_BOSS, utl::Path::Texture::TEXTURE_ENEMY_ADVANCED, utl::Path::Texture::TEXTURE_ENEMY_BASIC, utl::Path::Texture::TEXTURE_ENEMY_PROJECTILE, utl::Path::Texture::TEXTURE_EXPLOSION, utl::Path::Texture::TEXTURE_PLAYER, utl::Path::Texture::TEXTURE_SHOOT, and utl::Path::Texture::TEXTURE_SHOOT_CHARGED.

Referenced by GameMulti().

Here is the caller graph for this function:

◆ processEventBus()

void gme::GameMulti::processEventBus ( )

private

Process pending events from the event bus.

Polls and handles network events from the event bus

Definition at line 185 of file gameMulti.cpp.

References utl::GAME_OVER, utl::GAME_START, utl::EventBus::getInstance(), utl::INFO, utl::Logger::log(), utl::PLAYER_INPUT_RECEIVED, and utl::WORLD_STATE_RECEIVED.

Here is the call graph for this function:

◆ setupEventSubscriptions()

void gme::GameMulti::setupEventSubscriptions ( ) const

private

Subscribe to event bus events.

Registers callbacks for world state updates and entity events

Definition at line 175 of file gameMulti.cpp.

References utl::GAME_OVER, utl::GAME_START, utl::EventBus::getInstance(), utl::PLAYER_INPUT_RECEIVED, utl::EventBus::registerComponent(), utl::EventBus::subscribe(), and utl::WORLD_STATE_RECEIVED.

Referenced by GameMulti().

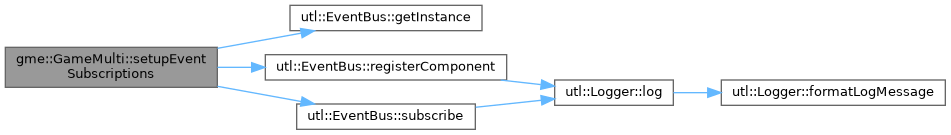

Here is the call graph for this function:

Here is the caller graph for this function:

◆ update()

void gme::GameMulti::update	(	float	dt,
		const eng::WindowSize &	size )

overridevirtual

Update the game scene (called each frame)

Parameters

dt	Delta time since last frame (in seconds)
size	Current window size

Processes network events, updates interpolation, runs game systems

Implements eng::IScene.

Definition at line 688 of file gameMulti.cpp.

References utl::Path::Audio::AUDIO_BOSS, eng::Playing, and gme::StageManager::stopScrolling().

Here is the call graph for this function:

◆ updateInterpolation() [1/2]

void gme::GameMulti::updateInterpolation	(	std::unordered_map< uint32_t, InterpolationData > &	dataMap,
		std::unordered_map< uint32_t, ecs::Entity > &	entityMap,
		float	smoothFactor,
		float	dt,
		ecs::Registry &	registry )

private

Update entity position interpolation.

Parameters

dataMap	Map of entity ID to interpolation data
entityMap	Map of entity ID to ECS entity
smoothFactor	Interpolation smoothing factor (0.0-1.0)
dt	Delta time for frame-rate independent interpolation
registry	ECS registry containing entities

Smoothly interpolates entity positions between server updates

Definition at line 772 of file gameMulti.cpp.

References ecs::Registry::getComponent().

Here is the call graph for this function:

◆ updateInterpolation() [2/2]

void gme::GameMulti::updateInterpolation	(	std::unordered_map< uint32_t, InterpolationData > &	dataMap,
		std::unordered_map< uint32_t, ecs::Entity > &	entityMap,
		float	smoothFactor,
		float	dt,
		ecs::Registry &	registry ) const

private

Update entity position interpolation (const version)

Parameters

dataMap	Map of entity ID to interpolation data
entityMap	Map of entity ID to ECS entity
smoothFactor	Interpolation smoothing factor (0.0-1.0)
dt	Delta time for frame-rate independent interpolation
registry	ECS registry containing entities

◆ updatePlayerSkin()

void gme::GameMulti::updatePlayerSkin ( )

Update the local player's visual skin/appearance.

Updates player sprite based on skin index

Definition at line 808 of file gameMulti.cpp.

References utl::GameConfig::Player::SPRITE_HEIGHT.

Member Data Documentation

◆ BOSS_MUSIC_DURATION

float gme::GameMulti::BOSS_MUSIC_DURATION = 40.0f

staticconstexprprivate

Duration of boss music in seconds.

Definition at line 223 of file GameMulti.hpp.

◆ ENEMY_SMOOTH_FACTOR

float gme::GameMulti::ENEMY_SMOOTH_FACTOR = 0.18f

staticconstexprprivate

Interpolation speed for enemies.

Definition at line 216 of file GameMulti.hpp.

◆ m_audio

const std::shared_ptr<eng::IAudio>& gme::GameMulti::m_audio

private

Audio interface reference.

Definition at line 179 of file GameMulti.hpp.

◆ m_beginSoundEntity

ecs::Entity gme::GameMulti::m_beginSoundEntity {}

private

Entity for game start sound.

Definition at line 219 of file GameMulti.hpp.

Referenced by GameMulti().

◆ m_bossMusicEntity

ecs::Entity gme::GameMulti::m_bossMusicEntity {}

private

Entity for boss music.

Definition at line 220 of file GameMulti.hpp.

◆ m_bossMusicStarted

bool gme::GameMulti::m_bossMusicStarted = false

private

Flag indicating if boss music has started.

Definition at line 222 of file GameMulti.hpp.

◆ m_bossMusicTimer

float gme::GameMulti::m_bossMusicTimer = 0.0f

private

Timer for boss music duration.

Definition at line 221 of file GameMulti.hpp.

◆ m_enemyData

std::unordered_map<uint32_t, InterpolationData> gme::GameMulti::m_enemyData

private

Interpolation data for enemies.

Definition at line 198 of file GameMulti.hpp.

◆ m_enemyEntities

std::unordered_map<uint32_t, ecs::Entity> gme::GameMulti::m_enemyEntities

private

Map of enemy ID to entity.

Definition at line 193 of file GameMulti.hpp.

◆ m_eventComponentId

uint32_t gme::GameMulti::m_eventComponentId = 10

private

Event bus component ID.

Definition at line 189 of file GameMulti.hpp.

◆ m_firstWorldState

bool gme::GameMulti::m_firstWorldState = true

private

Flag indicating if this is the first world state (for player skin init)

Definition at line 228 of file GameMulti.hpp.

◆ m_hudSystem

std::unique_ptr<HUDSystem> gme::GameMulti::m_hudSystem

private

HUD rendering system.

Definition at line 183 of file GameMulti.hpp.

Referenced by GameMulti().

◆ m_inputHistory

std::deque<PendingInput> gme::GameMulti::m_inputHistory

private

History of unacknowledged inputs.

Definition at line 211 of file GameMulti.hpp.

◆ m_keysPressed

std::unordered_map<eng::Key, bool> gme::GameMulti::m_keysPressed

private

Current key press states.

Definition at line 184 of file GameMulti.hpp.

◆ m_lastAckSeqId

uint32_t gme::GameMulti::m_lastAckSeqId = 0

private

Last acknowledged input sequence ID.

Definition at line 212 of file GameMulti.hpp.

◆ m_loadedFonts

std::unordered_set<std::string> gme::GameMulti::m_loadedFonts

private

Cache of loaded font paths.

Definition at line 226 of file GameMulti.hpp.

Referenced by GameMulti().

◆ m_loadedTextures

std::unordered_set<std::string> gme::GameMulti::m_loadedTextures

private

Cache of loaded texture paths.

Definition at line 225 of file GameMulti.hpp.

Referenced by GameMulti().

◆ m_localPlayerEntity

ecs::Entity gme::GameMulti::m_localPlayerEntity

private

Local player entity.

Definition at line 176 of file GameMulti.hpp.

Referenced by GameMulti().

◆ m_playerController

std::unique_ptr<PlayerControllerMulti> gme::GameMulti::m_playerController

private

Player input controller.

Definition at line 182 of file GameMulti.hpp.

Referenced by GameMulti().

◆ m_playerSkinMap

std::unordered_map<uint32_t, uint32_t> gme::GameMulti::m_playerSkinMap

private

Map of player session ID to skin index.

Definition at line 199 of file GameMulti.hpp.

Referenced by GameMulti().

◆ m_playMusic

bool gme::GameMulti::m_playMusic = false

private

Music playback flag.

Definition at line 186 of file GameMulti.hpp.

Referenced by playMusic().

◆ m_projectileData

std::unordered_map<uint32_t, InterpolationData> gme::GameMulti::m_projectileData

private

Interpolation data for projectiles.

Definition at line 197 of file GameMulti.hpp.

◆ m_projectileEntities

std::unordered_map<uint32_t, ecs::Entity> gme::GameMulti::m_projectileEntities

private

Map of projectile ID to entity.

Definition at line 192 of file GameMulti.hpp.

◆ m_remotePlayerData

std::unordered_map<uint32_t, InterpolationData> gme::GameMulti::m_remotePlayerData

private

Interpolation data for remote players.

Definition at line 196 of file GameMulti.hpp.

◆ m_remotePlayers

std::unordered_map<uint32_t, ecs::Entity> gme::GameMulti::m_remotePlayers

private

Map of session ID to remote player entities.

Definition at line 177 of file GameMulti.hpp.

◆ m_renderer

const std::shared_ptr<eng::IRenderer>& gme::GameMulti::m_renderer

private

Renderer interface reference.

Definition at line 180 of file GameMulti.hpp.

◆ m_sessionId

uint32_t gme::GameMulti::m_sessionId

private

Local player session ID.

Definition at line 188 of file GameMulti.hpp.

Referenced by GameMulti().

◆ m_showDebug

bool& gme::GameMulti::m_showDebug

private

Debug mode flag reference.

Definition at line 185 of file GameMulti.hpp.

◆ m_skinIndex

float gme::GameMulti::m_skinIndex

private

Local player skin index.

Definition at line 181 of file GameMulti.hpp.

◆ m_stageManager

std::unique_ptr<StageManager> gme::GameMulti::m_stageManager

private

Stage/level manager.

Definition at line 190 of file GameMulti.hpp.

Referenced by GameMulti().

◆ m_starfieldCreated

bool gme::GameMulti::m_starfieldCreated = false

private

Flag indicating if starfield background was created.

Definition at line 218 of file GameMulti.hpp.

◆ onGameOver

std::function<void()> gme::GameMulti::onGameOver

Callback invoked when game ends.

Definition at line 123 of file GameMulti.hpp.

◆ PROJECTILE_SMOOTH_FACTOR

float gme::GameMulti::PROJECTILE_SMOOTH_FACTOR = 0.5f

staticconstexprprivate

Interpolation speed for projectiles.

Definition at line 215 of file GameMulti.hpp.

◆ REMOTE_PLAYER_SMOOTH_FACTOR

float gme::GameMulti::REMOTE_PLAYER_SMOOTH_FACTOR = 0.25f

staticconstexprprivate

Interpolation speed for remote players.

Definition at line 214 of file GameMulti.hpp.

The documentation for this class was generated from the following files:

/home/runner/work/R-Type/R-Type/plugins/Game/RType/Client/Multi/include/RTypeClientMulti/Scenes/GameMulti.hpp
/home/runner/work/R-Type/R-Type/plugins/Game/RType/Client/Multi/src/scenes/gameMulti.cpp

Classes

Public Member Functions

Public Attributes

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ GameMulti() [1/3]

◆ ~GameMulti()

◆ GameMulti() [2/3]

◆ GameMulti() [3/3]

Member Function Documentation

◆ event()

◆ handleWorldStateUpdate()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ playMusic()

◆ preloadCommonTextures()

◆ processEventBus()

◆ setupEventSubscriptions()

◆ update()

◆ updateInterpolation() [1/2]

◆ updateInterpolation() [2/2]

◆ updatePlayerSkin()

Member Data Documentation

◆ BOSS_MUSIC_DURATION

◆ ENEMY_SMOOTH_FACTOR

◆ m_audio

◆ m_beginSoundEntity

◆ m_bossMusicEntity

◆ m_bossMusicStarted

◆ m_bossMusicTimer

◆ m_enemyData

◆ m_enemyEntities

◆ m_eventComponentId

◆ m_firstWorldState

◆ m_hudSystem

◆ m_inputHistory

◆ m_keysPressed

◆ m_lastAckSeqId

◆ m_loadedFonts

◆ m_loadedTextures

◆ m_localPlayerEntity

◆ m_playerController

◆ m_playerSkinMap

◆ m_playMusic

◆ m_projectileData

◆ m_projectileEntities

◆ m_remotePlayerData

◆ m_remotePlayers

◆ m_renderer

◆ m_sessionId

◆ m_showDebug

◆ m_skinIndex

◆ m_stageManager

◆ m_starfieldCreated

◆ onGameOver

◆ PROJECTILE_SMOOTH_FACTOR

◆ REMOTE_PLAYER_SMOOTH_FACTOR
