Manages local player input and network communication for multiplayer. More...

#include <PlayerControllerMulti.hpp>

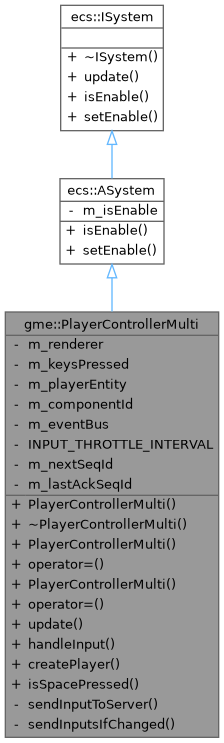

Inheritance diagram for gme::PlayerControllerMulti:

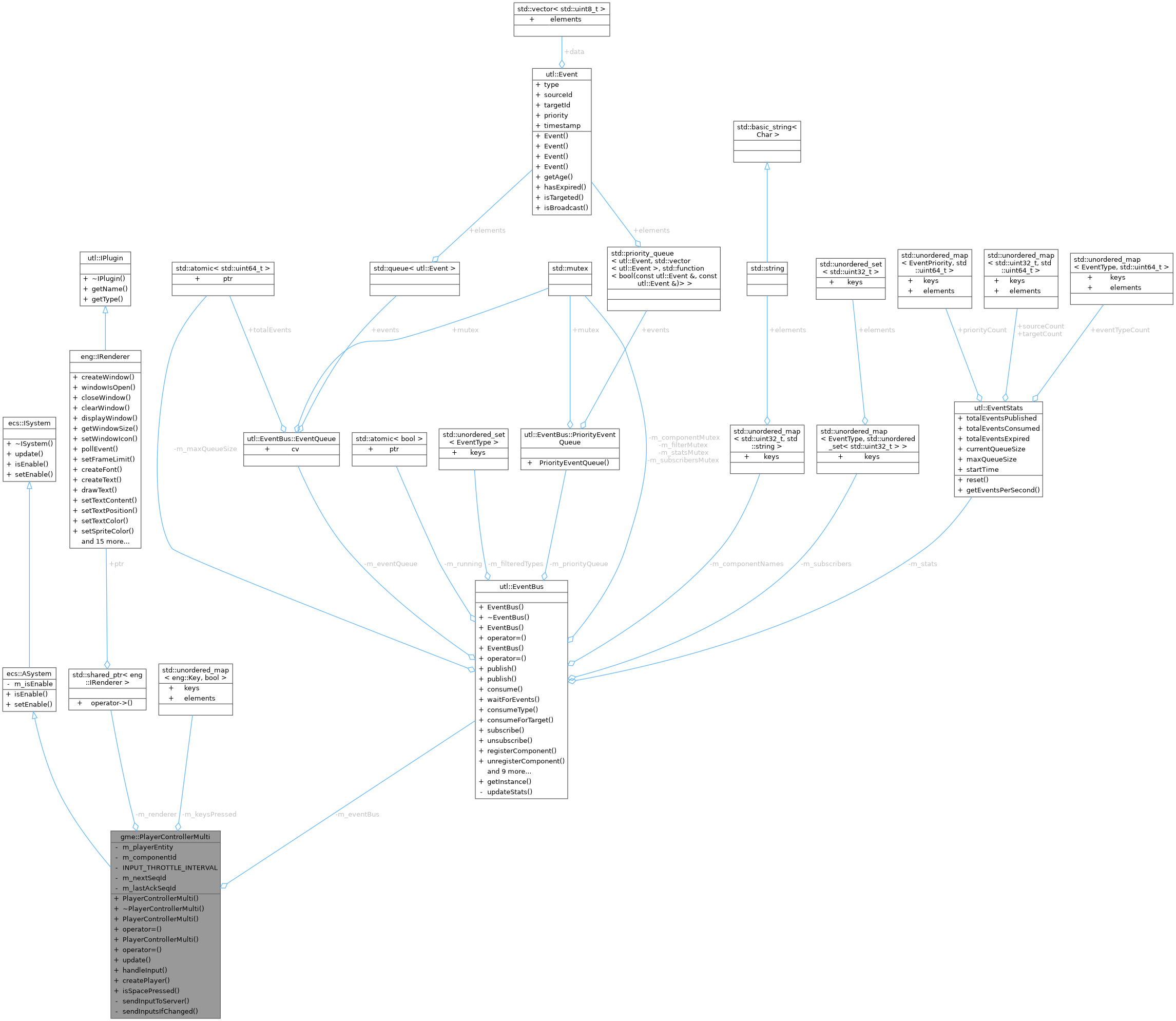

Collaboration diagram for gme::PlayerControllerMulti:

Classes
struct	PendingInput
	Represents an input command awaiting server acknowledgment. More...

Public Member Functions
	PlayerControllerMulti (const std::shared_ptr< eng::IRenderer > &renderer, uint32_t sessionId)
	Constructor.

	~PlayerControllerMulti () override=default
	Destructor.

	PlayerControllerMulti (const PlayerControllerMulti &)=delete
	Deleted copy constructor (non-copyable)

PlayerControllerMulti &	operator= (const PlayerControllerMulti &)=delete
	Deleted copy assignment operator (non-copyable)

	PlayerControllerMulti (PlayerControllerMulti &&)=delete
	Deleted move constructor (non-movable)

PlayerControllerMulti &	operator= (PlayerControllerMulti &&)=delete
	Deleted move assignment operator (non-movable)

void	update (ecs::Registry &registry, float dt) override
	Update the player controller system (called each frame)

void	handleInput (ecs::Registry &registry, const eng::Event &event)
	Handle input events from the window.

ecs::Entity	createPlayer (ecs::Registry &registry, float x, float y)
	Create the local player entity.

bool	isSpacePressed () const
	Check if space bar is currently pressed.

Public Member Functions inherited from ecs::ASystem
bool	isEnable () override

void	setEnable (const bool enable) override

Public Member Functions inherited from ecs::ISystem
virtual	~ISystem ()=default

Private Member Functions
void	sendInputToServer (bool up, bool down, bool left, bool right, bool shoot) const
	Send input command to server via event bus.

void	sendInputsIfChanged ()
	Send input update if state has changed.

Private Attributes
const std::shared_ptr< eng::IRenderer > &	m_renderer
	Renderer interface reference.

std::unordered_map< eng::Key, bool >	m_keysPressed
	Current state of all keys.

ecs::Entity	m_playerEntity
	Local player entity ID.

uint32_t	m_componentId
	Event bus component ID.

utl::EventBus &	m_eventBus
	Event bus reference.

const float	INPUT_THROTTLE_INTERVAL = 1.0f / 144.0f
	Maximum input send rate (144 Hz)

uint32_t	m_nextSeqId = 1
	Next sequence ID for input packets.

uint32_t	m_lastAckSeqId = 0
	Last acknowledged sequence ID from server.

Detailed Description

Manages local player input and network communication for multiplayer.

This system handles:

Capturing and processing player keyboard input
Sending input commands to the game server
Client-side prediction for responsive controls
Input throttling to reduce network bandwidth
Sequence numbering for input acknowledgment

The controller sends input updates to the server at a maximum rate of 144 Hz and maintains a history of pending inputs for reconciliation.

Definition at line 41 of file PlayerControllerMulti.hpp.

Constructor & Destructor Documentation

◆ PlayerControllerMulti() [1/3]

gme::PlayerControllerMulti::PlayerControllerMulti	(	const std::shared_ptr< eng::IRenderer > &	renderer,
		uint32_t	sessionId )

inlineexplicit

Constructor.

Parameters

renderer	Shared pointer to the renderer interface
sessionId	Player's network session ID

Initializes the controller and registers with the event bus

Definition at line 50 of file PlayerControllerMulti.hpp.

References m_componentId, m_eventBus, and utl::EventBus::registerComponent().

Here is the call graph for this function:

◆ ~PlayerControllerMulti()

gme::PlayerControllerMulti::~PlayerControllerMulti ( )

overridedefault

Destructor.

◆ PlayerControllerMulti() [2/3]

gme::PlayerControllerMulti::PlayerControllerMulti ( const PlayerControllerMulti & )

delete

Deleted copy constructor (non-copyable)

◆ PlayerControllerMulti() [3/3]

gme::PlayerControllerMulti::PlayerControllerMulti ( PlayerControllerMulti && )

delete

Deleted move constructor (non-movable)

Member Function Documentation

◆ createPlayer()

ecs::Entity gme::PlayerControllerMulti::createPlayer	(	ecs::Registry &	registry,
		float	x,
		float	y )

Create the local player entity.

Parameters

registry	ECS registry to create entity in
x	Initial X position
y	Initial Y position

Returns: Created player entity ID

Creates a player entity with all necessary components for gameplay

Definition at line 8 of file playerControllerMulti.cpp.

References utl::calculateHitboxOffsets(), ecs::Registry::createEntity(), m_playerEntity, utl::GameConfig::Beam::MAX_CHARGE, utl::GameConfig::Hitbox::PLAYER_RADIUS, utl::GameConfig::Player::SCALE, utl::GameConfig::Player::SPRITE_HEIGHT, utl::GameConfig::Player::SPRITE_WIDTH, utl::Path::Texture::TEXTURE_PLAYER, and ecs::Registry::EntityBuilder::with().

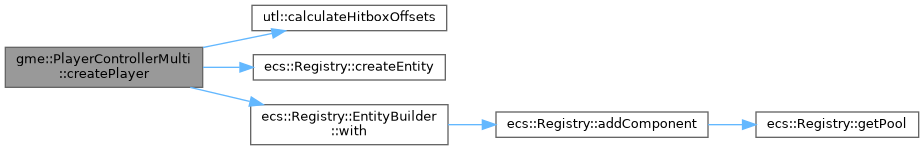

Here is the call graph for this function:

◆ handleInput()

void gme::PlayerControllerMulti::handleInput	(	ecs::Registry &	registry,
		const eng::Event &	event )

Handle input events from the window.

Parameters

registry	ECS registry
event	Input event (keyboard press/release)

Updates internal key state for the player's controls

Definition at line 29 of file playerControllerMulti.cpp.

References eng::Down, eng::Event::key, eng::KeyPressed, eng::KeyReleased, eng::Left, eng::Right, eng::Space, eng::Event::type, and eng::Up.

◆ isSpacePressed()

bool gme::PlayerControllerMulti::isSpacePressed ( ) const

Check if space bar is currently pressed.

Returns: True if space is pressed (shooting)

Definition at line 212 of file playerControllerMulti.cpp.

References eng::Space.

◆ operator=() [1/2]

PlayerControllerMulti & gme::PlayerControllerMulti::operator= ( const PlayerControllerMulti & )

delete

Deleted copy assignment operator (non-copyable)

◆ operator=() [2/2]

PlayerControllerMulti & gme::PlayerControllerMulti::operator= ( PlayerControllerMulti && )

delete

Deleted move assignment operator (non-movable)

◆ sendInputsIfChanged()

void gme::PlayerControllerMulti::sendInputsIfChanged ( )

private

Send input update if state has changed.

Only sends updates when input state changes to reduce network traffic

Definition at line 86 of file playerControllerMulti.cpp.

References eng::Down, eng::Left, eng::Right, eng::Space, and eng::Up.

◆ sendInputToServer()

void gme::PlayerControllerMulti::sendInputToServer	(	bool	up,
		bool	down,
		bool	left,
		bool	right,
		bool	shoot ) const

private

Send input command to server via event bus.

Parameters

up	Move up key pressed
down	Move down key pressed
left	Move left key pressed
right	Move right key pressed
shoot	Shoot key pressed

Serializes input state and sends to server as INPUT event

Definition at line 106 of file playerControllerMulti.cpp.

References rnp::EventRecord::data, rnp::EventRecord::entityId, rnp::Serializer::getData(), rnp::INPUT, utl::NETWORK_CLIENT, utl::SEND_ENTITY_EVENT, rnp::Serializer::serializeEntityEvents(), and rnp::EventRecord::type.

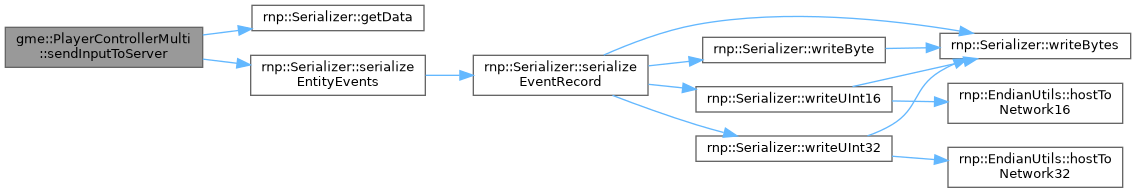

Here is the call graph for this function:

◆ update()

void gme::PlayerControllerMulti::update	(	ecs::Registry &	registry,
		float	dt )

overridevirtual

Update the player controller system (called each frame)

Parameters

registry	ECS registry containing all entities and components
dt	Delta time since last frame (in seconds)

Processes input state and sends updates to server if inputs changed

Implements ecs::ISystem.

Definition at line 131 of file playerControllerMulti.cpp.

References ecs::Registry::createEntity(), eng::Down, ecs::Registry::getAll(), ecs::Registry::getComponent(), ecs::INVALID_ENTITY, eng::Left, eng::Right, eng::Space, eng::Up, and ecs::Registry::EntityBuilder::with().

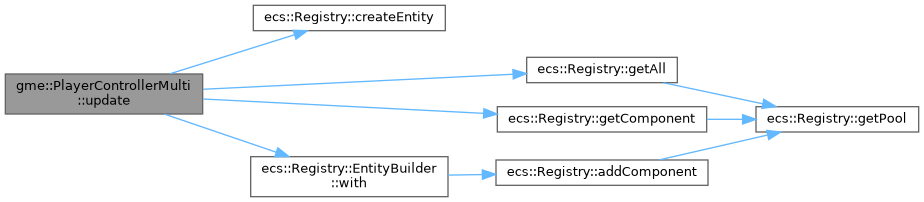

Here is the call graph for this function:

Member Data Documentation

◆ INPUT_THROTTLE_INTERVAL

const float gme::PlayerControllerMulti::INPUT_THROTTLE_INTERVAL = 1.0f / 144.0f

private

Maximum input send rate (144 Hz)

Definition at line 138 of file PlayerControllerMulti.hpp.

◆ m_componentId

uint32_t gme::PlayerControllerMulti::m_componentId

private

Event bus component ID.

Definition at line 135 of file PlayerControllerMulti.hpp.

Referenced by PlayerControllerMulti().

◆ m_eventBus

utl::EventBus& gme::PlayerControllerMulti::m_eventBus

private

Event bus reference.

Definition at line 136 of file PlayerControllerMulti.hpp.

Referenced by PlayerControllerMulti().

◆ m_keysPressed

std::unordered_map<eng::Key, bool> gme::PlayerControllerMulti::m_keysPressed

private

Current state of all keys.

Definition at line 133 of file PlayerControllerMulti.hpp.

◆ m_lastAckSeqId

uint32_t gme::PlayerControllerMulti::m_lastAckSeqId = 0

private

Last acknowledged sequence ID from server.

Definition at line 141 of file PlayerControllerMulti.hpp.

◆ m_nextSeqId

uint32_t gme::PlayerControllerMulti::m_nextSeqId = 1

private

Next sequence ID for input packets.

Definition at line 140 of file PlayerControllerMulti.hpp.

◆ m_playerEntity

ecs::Entity gme::PlayerControllerMulti::m_playerEntity

private

Local player entity ID.

Definition at line 134 of file PlayerControllerMulti.hpp.

Referenced by createPlayer().

◆ m_renderer

const std::shared_ptr<eng::IRenderer>& gme::PlayerControllerMulti::m_renderer

private

Renderer interface reference.

Definition at line 132 of file PlayerControllerMulti.hpp.

The documentation for this class was generated from the following files:

/home/runner/work/R-Type/R-Type/plugins/Game/RType/Client/Multi/include/RTypeClientMulti/Systems/PlayerControllerMulti.hpp
/home/runner/work/R-Type/R-Type/plugins/Game/RType/Client/Multi/src/Systems/playerControllerMulti.cpp
