Scene for configuring and establishing server connection. More...

#include <ServerScene.hpp>

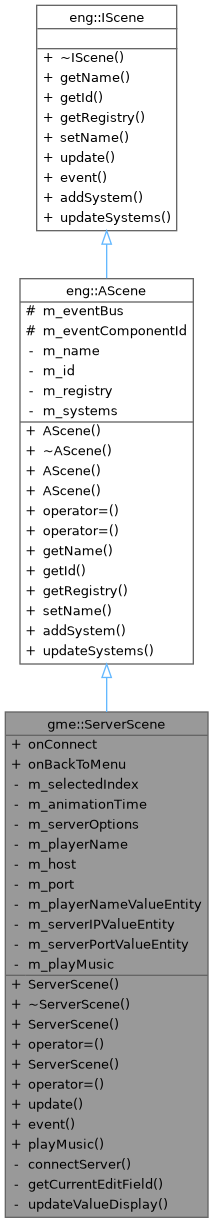

Inheritance diagram for gme::ServerScene:

Collaboration diagram for gme::ServerScene:

Public Member Functions
	ServerScene (eng::id assignedId, const std::shared_ptr< eng::IRenderer > &renderer, const std::string &host, const std::string &port, const std::string &playerName)
	Constructor.

	~ServerScene () override=default
	Destructor.

	ServerScene (const ServerScene &other)=delete
	Deleted copy constructor (non-copyable)

ServerScene &	operator= (const ServerScene &other)=delete
	Deleted copy assignment operator (non-copyable)

	ServerScene (ServerScene &&other)=delete
	Deleted move constructor (non-movable)

ServerScene &	operator= (ServerScene &&other)=delete
	Deleted move assignment operator (non-movable)

void	update (float dt, const eng::WindowSize &size) override
	Update the scene (called each frame)

void	event (const eng::Event &event) override
	Handle input events.

bool &	playMusic ()
	Get music playback state.

Public Member Functions inherited from eng::AScene
	AScene (const id assignedId)

	~AScene () override=default

	AScene (const AScene &other)=delete

	AScene (AScene &&other)=delete

AScene &	operator= (const AScene &other)=delete

AScene &	operator= (AScene &&other)=delete

std::string &	getName () override

id	getId () const override

ecs::Registry &	getRegistry () override

void	setName (const std::string &newName) override

void	addSystem (std::unique_ptr< ecs::ISystem > system) override

void	updateSystems (const float dt) override

Public Member Functions inherited from eng::IScene
virtual	~IScene ()=default

Public Attributes
std::function< void(const std::string &playerName, const std::string &serverIP, const std::string &serverPort)>	onConnect
	Callback triggered when player attempts to connect.

std::function< void()>	onBackToMenu
	Callback triggered when player returns to main menu.

Private Member Functions
void	connectServer (const std::string &playerName, const std::string &serverIP, const std::string &serverPort) const
	Initiate server connection with provided settings.

std::string &	getCurrentEditField ()
	Get reference to the currently selected input field.

void	updateValueDisplay ()
	Update the visual display of input values.

Private Attributes
size_t	m_selectedIndex = 0
	Currently selected menu option index.

float	m_animationTime = 0.0f
	Animation timer for visual effects.

const std::vector< std::string >	m_serverOptions

std::string	m_playerName
	Player name input field.

std::string	m_host
	Server host/IP input field.

std::string	m_port
	Server port input field.

ecs::Entity	m_playerNameValueEntity = 0
	Text entity displaying player name.

ecs::Entity	m_serverIPValueEntity = 0
	Text entity displaying server IP.

ecs::Entity	m_serverPortValueEntity = 0
	Text entity displaying server port.

bool	m_playMusic = false
	Music playback state flag.

Additional Inherited Members
Protected Attributes inherited from eng::AScene
utl::EventBus &	m_eventBus = utl::EventBus::getInstance()

std::uint32_t	m_eventComponentId = 0

Detailed Description

Scene for configuring and establishing server connection.

This scene provides a user interface for players to:

Enter their player name
Specify server IP address
Set server port number
Connect to the game server
Navigate back to the main menu

The scene uses a menu-based navigation system with keyboard input and visual feedback for the selected option.

Definition at line 33 of file ServerScene.hpp.

Constructor & Destructor Documentation

◆ ServerScene() [1/3]

gme::ServerScene::ServerScene	(	eng::id	assignedId,
		const std::shared_ptr< eng::IRenderer > &	renderer,
		const std::string &	host,
		const std::string &	port,
		const std::string &	playerName )

Constructor.

Parameters

assignedId	Scene identifier
renderer	Shared pointer to the renderer interface
host	Default server host/IP address
port	Default server port
playerName	Default player name

Initializes the scene with default connection parameters

Definition at line 95 of file ServerScene.cpp.

References eng::Color::a, eng::Color::b, utl::Config::Color::CYAN_ELECTRIC, utl::Path::Font::FONTS_RTYPE, eng::Color::g, utl::Config::Color::GRAY_BLUE_SUBTLE, ecs::IComponent::id, eng::AScene::m_eventBus, eng::AScene::m_eventComponentId, m_host, m_playerName, m_playerNameValueEntity, m_port, m_serverIPValueEntity, m_serverOptions, m_serverPortValueEntity, eng::Color::r, utl::EventBus::registerComponent(), and utl::Config::Color::TEXT_VALUE_COLOR.

Here is the call graph for this function:

◆ ~ServerScene()

gme::ServerScene::~ServerScene ( )

overridedefault

Destructor.

◆ ServerScene() [2/3]

gme::ServerScene::ServerScene ( const ServerScene & other )

delete

Deleted copy constructor (non-copyable)

◆ ServerScene() [3/3]

gme::ServerScene::ServerScene ( ServerScene && other )

delete

Deleted move constructor (non-movable)

Member Function Documentation

◆ connectServer()

void gme::ServerScene::connectServer	(	const std::string &	playerName,
		const std::string &	serverIP,
		const std::string &	serverPort ) const

private

Initiate server connection with provided settings.

Parameters

playerName	Player's display name
serverIP	Server IP address or hostname
serverPort	Server port number as string

Validates inputs and triggers the onConnect callback

Definition at line 326 of file ServerScene.cpp.

References rnp::Serializer::getData(), utl::NETWORK_CLIENT, utl::REQUEST_CONNECT, and rnp::Serializer::writeString().

Here is the call graph for this function:

◆ event()

void gme::ServerScene::event ( const eng::Event & event )

overridevirtual

Handle input events.

Parameters

event Input event (keyboard, mouse, etc.)

Processes user input for menu navigation and text entry

Implements eng::IScene.

Definition at line 221 of file ServerScene.cpp.

References eng::Delete, eng::Down, eng::Enter, eng::Escape, eng::Event::key, eng::KeyPressed, eng::KeyReleased, keyToChar(), eng::Event::type, and eng::Up.

Here is the call graph for this function:

◆ getCurrentEditField()

std::string & gme::ServerScene::getCurrentEditField ( )

private

Get reference to the currently selected input field.

Returns: Reference to the string being edited

Definition at line 293 of file ServerScene.cpp.

◆ operator=() [1/2]

ServerScene & gme::ServerScene::operator= ( const ServerScene & other )

delete

Deleted copy assignment operator (non-copyable)

◆ operator=() [2/2]

ServerScene & gme::ServerScene::operator= ( ServerScene && other )

delete

Deleted move assignment operator (non-movable)

◆ playMusic()

bool & gme::ServerScene::playMusic ( )

inline

Get music playback state.

Returns: Reference to music playback flag

Definition at line 92 of file ServerScene.hpp.

References m_playMusic.

◆ update()

void gme::ServerScene::update	(	float	dt,
		const eng::WindowSize &	size )

overridevirtual

Update the scene (called each frame)

Parameters

dt	Delta time since last frame
size	Current window size

Handles animation updates and UI state changes

Implements eng::IScene.

Definition at line 186 of file ServerScene.cpp.

References eng::Color::b, eng::Color::g, utl::Config::Color::GRAY_BLUE_SUBTLE, and eng::Color::r.

◆ updateValueDisplay()

void gme::ServerScene::updateValueDisplay ( )

private

Update the visual display of input values.

Refreshes text entities to reflect current input field values

Definition at line 306 of file ServerScene.cpp.

Member Data Documentation

◆ m_animationTime

float gme::ServerScene::m_animationTime = 0.0f

private

Animation timer for visual effects.

Menu options displayed to the player

Definition at line 109 of file ServerScene.hpp.

◆ m_host

std::string gme::ServerScene::m_host

private

Server host/IP input field.

Definition at line 126 of file ServerScene.hpp.

Referenced by ServerScene().

◆ m_playerName

std::string gme::ServerScene::m_playerName

private

Player name input field.

Definition at line 125 of file ServerScene.hpp.

Referenced by ServerScene().

◆ m_playerNameValueEntity

ecs::Entity gme::ServerScene::m_playerNameValueEntity = 0

private

Text entity displaying player name.

Definition at line 129 of file ServerScene.hpp.

Referenced by ServerScene().

◆ m_playMusic

bool gme::ServerScene::m_playMusic = false

private

Music playback state flag.

Definition at line 132 of file ServerScene.hpp.

Referenced by playMusic().

◆ m_port

std::string gme::ServerScene::m_port

private

Server port input field.

Definition at line 127 of file ServerScene.hpp.

Referenced by ServerScene().

◆ m_selectedIndex

size_t gme::ServerScene::m_selectedIndex = 0

private

Currently selected menu option index.

Definition at line 108 of file ServerScene.hpp.

◆ m_serverIPValueEntity

ecs::Entity gme::ServerScene::m_serverIPValueEntity = 0

private

Text entity displaying server IP.

Definition at line 130 of file ServerScene.hpp.

Referenced by ServerScene().

◆ m_serverOptions

const std::vector<std::string> gme::ServerScene::m_serverOptions

private

Initial value:

= {"Player Name", "Server IP", "Server Port", "Connect",

"Back"}

Definition at line 112 of file ServerScene.hpp.

Referenced by ServerScene().

◆ m_serverPortValueEntity

ecs::Entity gme::ServerScene::m_serverPortValueEntity = 0

private

Text entity displaying server port.

Definition at line 131 of file ServerScene.hpp.

Referenced by ServerScene().

◆ onBackToMenu

std::function<void()> gme::ServerScene::onBackToMenu

Callback triggered when player returns to main menu.

Definition at line 105 of file ServerScene.hpp.

◆ onConnect

std::function<void(const std::string &playerName, const std::string &serverIP, const std::string &serverPort)> gme::ServerScene::onConnect

Callback triggered when player attempts to connect.

Function signature: (playerName, serverIP, serverPort) -> void

Definition at line 100 of file ServerScene.hpp.

The documentation for this class was generated from the following files:

/home/runner/work/R-Type/R-Type/plugins/Game/RType/Client/Multi/include/RTypeClientMulti/Scenes/ServerScene.hpp
/home/runner/work/R-Type/R-Type/plugins/Game/RType/Client/Multi/src/scenes/ServerScene.cpp
