Server-authoritative enemy AI system managing all enemy behaviors. More...

#include <EnemyAISystem.hpp>

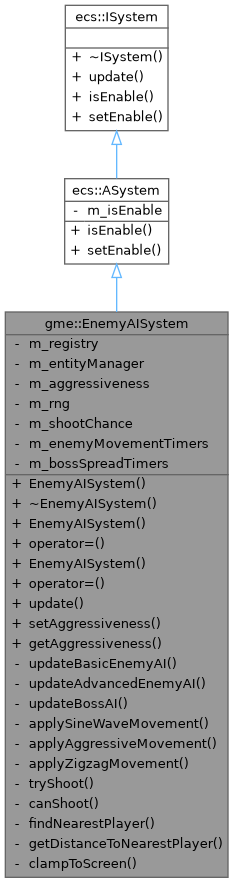

Inheritance diagram for gme::EnemyAISystem:

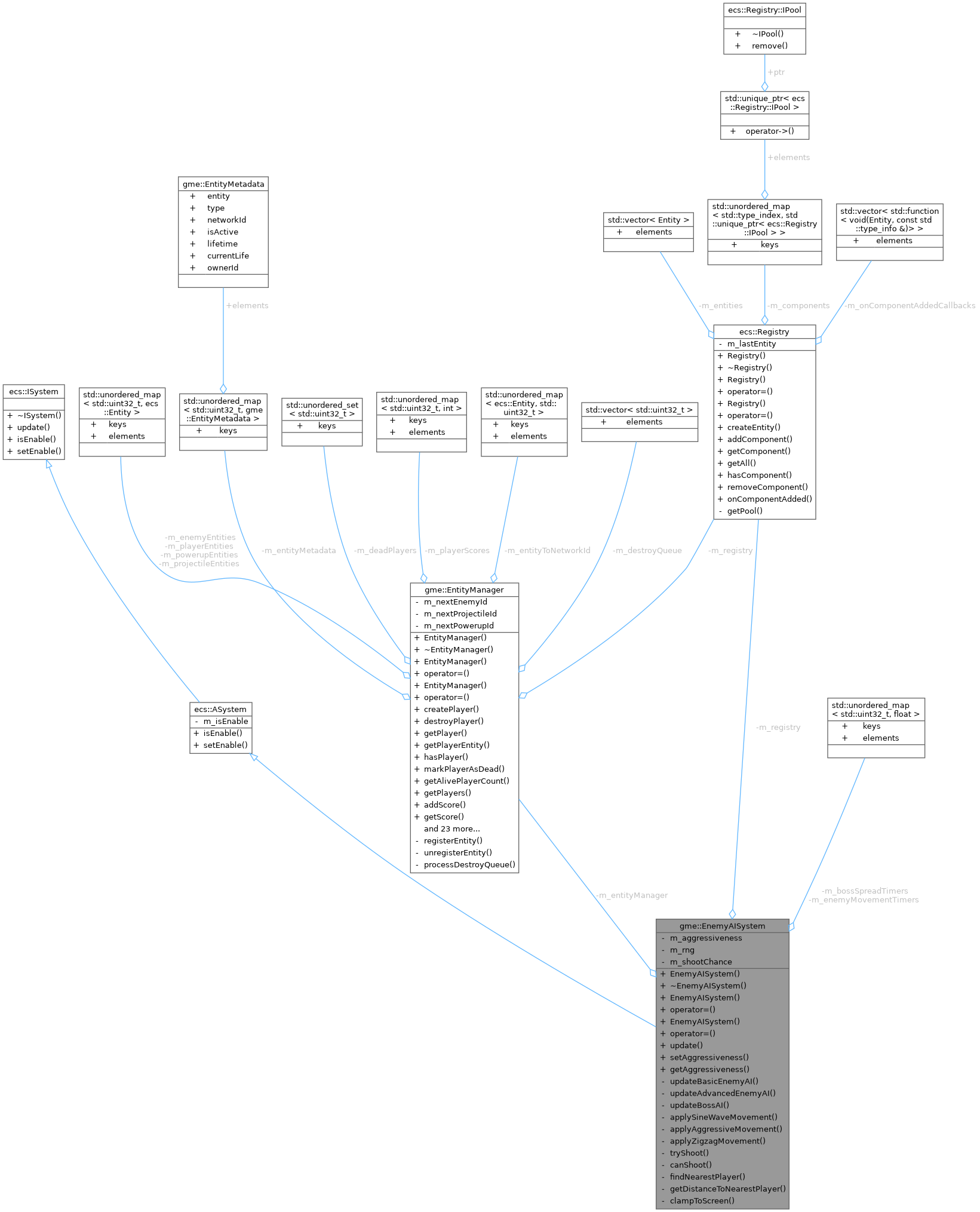

Collaboration diagram for gme::EnemyAISystem:

Public Member Functions
	EnemyAISystem (ecs::Registry &registry, EntityManager &entityManager)
	Constructor.

	~EnemyAISystem () override=default
	Destructor.

	EnemyAISystem (const EnemyAISystem &)=delete
	Deleted copy constructor (non-copyable)

EnemyAISystem &	operator= (const EnemyAISystem &)=delete
	Deleted copy assignment operator (non-copyable)

	EnemyAISystem (EnemyAISystem &&)=delete
	Deleted move constructor (non-movable)

EnemyAISystem &	operator= (EnemyAISystem &&)=delete
	Deleted move assignment operator (non-movable)

void	update (ecs::Registry &registry, float deltaTime) override
	Update the enemy AI system (called each frame)

void	setAggressiveness (float value)
	Set global enemy aggressiveness multiplier.

float	getAggressiveness () const
	Get current aggressiveness setting.

Public Member Functions inherited from ecs::ASystem
bool	isEnable () override

void	setEnable (const bool enable) override

Public Member Functions inherited from ecs::ISystem
virtual	~ISystem ()=default

Private Member Functions
void	updateBasicEnemyAI (std::uint32_t enemyId, ecs::Entity enemy, float deltaTime)
	Update AI logic for basic enemy type.

void	updateAdvancedEnemyAI (std::uint32_t enemyId, ecs::Entity enemy, float deltaTime)
	Update AI logic for advanced enemy type.

void	updateBossAI (std::uint32_t enemyId, ecs::Entity enemy, float deltaTime)
	Update AI logic for boss enemy type.

void	applySineWaveMovement (std::uint32_t enemyId, ecs::Entity enemy, float deltaTime, float frequency=2.0f, float amplitude=50.0f)
	Apply sine wave vertical movement pattern.

void	applyAggressiveMovement (ecs::Entity enemy, float deltaTime, float speed=150.0f)
	Apply aggressive pursuit movement toward nearest player.

void	applyZigzagMovement (std::uint32_t enemyId, ecs::Entity enemy, float deltaTime)
	Apply zigzag diagonal movement pattern.

void	tryShoot (std::uint32_t enemyId, ecs::Entity enemy, float deltaTime)
	Attempt to shoot projectile at player.

bool	canShoot (ecs::Entity enemy) const
	Check if enemy is able to shoot (cooldown and component checks)

ecs::Entity	findNearestPlayer (float x, float y) const
	Find the nearest player entity to a given position.

float	getDistanceToNearestPlayer (float x, float y) const
	Calculate distance to nearest player.

void	clampToScreen (ecs::Entity enemy)
	Clamp enemy position to visible screen bounds.

Private Attributes
ecs::Registry &	m_registry
	ECS registry reference.

EntityManager &	m_entityManager
	Entity manager for spawning projectiles.

float	m_aggressiveness
	Global aggressiveness multiplier (affects pursuit speed)

std::mt19937	m_rng
	Random number generator for shooting patterns.

std::uniform_real_distribution< float >	m_shootChance
	Random distribution for shoot probability.

std::unordered_map< std::uint32_t, float >	m_enemyMovementTimers
	Movement timing per enemy ID.

std::unordered_map< std::uint32_t, float >	m_bossSpreadTimers
	Boss spread shot timing per boss ID.

Detailed Description

Server-authoritative enemy AI system managing all enemy behaviors.

This ECS system controls all enemy logic on the game server, including:

Multiple movement patterns (straight, sine wave, aggressive, zigzag, stationary)
Per-enemy-type specialized AI behaviors
Shooting logic with randomized timing
Player tracking and pursuit
Screen boundary clamping
Per-entity timing for independent movement patterns

The system processes three enemy types:

Basic enemies: Simple movement patterns, occasional shooting
Advanced enemies: More complex patterns, more aggressive
Boss enemies: Special behaviors, spread shot patterns, higher durability

All AI logic runs server-side to maintain authoritative gameplay state.

Definition at line 61 of file EnemyAISystem.hpp.

Constructor & Destructor Documentation

◆ EnemyAISystem() [1/3]

gme::EnemyAISystem::EnemyAISystem	(	ecs::Registry &	registry,
		EntityManager &	entityManager )

explicit

Constructor.

Parameters

registry	ECS registry containing all entities and components
entityManager	Entity manager for spawning projectiles and effects

Initializes the AI system with random number generation for shooting patterns

Definition at line 16 of file EnemyAISystem.cpp.

References utl::INFO, utl::Logger::log(), and m_rng.

Here is the call graph for this function:

◆ ~EnemyAISystem()

gme::EnemyAISystem::~EnemyAISystem ( )

overridedefault

Destructor.

◆ EnemyAISystem() [2/3]

gme::EnemyAISystem::EnemyAISystem ( const EnemyAISystem & )

delete

Deleted copy constructor (non-copyable)

◆ EnemyAISystem() [3/3]

gme::EnemyAISystem::EnemyAISystem ( EnemyAISystem && )

delete

Deleted move constructor (non-movable)

Member Function Documentation

◆ applyAggressiveMovement()

void gme::EnemyAISystem::applyAggressiveMovement	(	ecs::Entity	enemy,
		float	deltaTime,
		float	speed = 150.0f )

private

Apply aggressive pursuit movement toward nearest player.

Parameters

enemy	ECS entity handle
deltaTime	Time elapsed since last frame
speed	Movement speed in pixels per second (default: 150.0)

Enemy moves directly toward nearest player position

Definition at line 203 of file EnemyAISystem.cpp.

References findNearestPlayer(), ecs::Registry::getComponent(), ecs::INVALID_ENTITY, m_aggressiveness, m_registry, ecs::Transform::x, and ecs::Transform::y.

Referenced by updateAdvancedEnemyAI(), and updateBossAI().

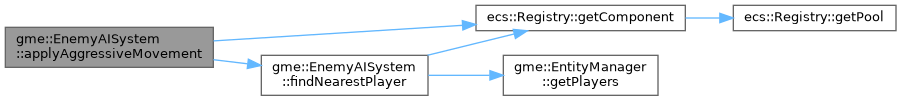

Here is the call graph for this function:

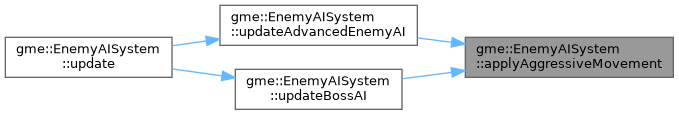

Here is the caller graph for this function:

◆ applySineWaveMovement()

void gme::EnemyAISystem::applySineWaveMovement	(	std::uint32_t	enemyId,
		ecs::Entity	enemy,
		float	deltaTime,
		float	frequency = 2.0f,
		float	amplitude = 50.0f )

private

Apply sine wave vertical movement pattern.

Parameters

enemyId	Network ID of the enemy (for independent timing)
enemy	ECS entity handle
deltaTime	Time elapsed since last frame
frequency	Oscillation frequency in Hz (default: 2.0)
amplitude	Vertical oscillation amplitude in pixels (default: 50.0)

Creates smooth vertical oscillation while moving left

Definition at line 182 of file EnemyAISystem.cpp.

References ecs::Registry::getComponent(), m_enemyMovementTimers, m_registry, ecs::Transform::x, and ecs::Transform::y.

Referenced by updateAdvancedEnemyAI(), and updateBossAI().

Here is the call graph for this function:

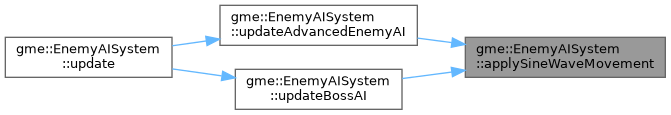

Here is the caller graph for this function:

◆ applyZigzagMovement()

void gme::EnemyAISystem::applyZigzagMovement	(	std::uint32_t	enemyId,
		ecs::Entity	enemy,
		float	deltaTime )

private

Apply zigzag diagonal movement pattern.

Parameters

enemyId	Network ID of the enemy (for independent timing)
enemy	ECS entity handle
deltaTime	Time elapsed since last frame

Creates erratic zigzag movement pattern

Definition at line 238 of file EnemyAISystem.cpp.

References ecs::Registry::getComponent(), m_enemyMovementTimers, m_registry, ecs::Transform::x, and ecs::Transform::y.

Referenced by updateBossAI().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ canShoot()

bool gme::EnemyAISystem::canShoot ( ecs::Entity enemy ) const

private

Check if enemy is able to shoot (cooldown and component checks)

Parameters

enemy ECS entity handle

Returns: True if enemy can shoot

Verifies entity has required components and shooting cooldown has elapsed

Definition at line 322 of file EnemyAISystem.cpp.

References ecs::Registry::getComponent(), ecs::Enemy::last_shot_time, and m_registry.

Referenced by tryShoot().

Here is the call graph for this function:

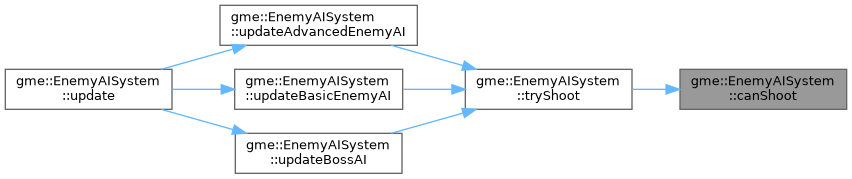

Here is the caller graph for this function:

◆ clampToScreen()

void gme::EnemyAISystem::clampToScreen ( ecs::Entity enemy )

private

Clamp enemy position to visible screen bounds.

Parameters

enemy ECS entity handle

Prevents enemies from moving off-screen vertically

Definition at line 383 of file EnemyAISystem.cpp.

References ecs::Registry::getComponent(), m_registry, utl::GameConfig::Server::SCREEN_HEIGHT, utl::GameConfig::Server::SCREEN_WIDTH, and ecs::Transform::x.

Referenced by update().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ findNearestPlayer()

ecs::Entity gme::EnemyAISystem::findNearestPlayer	(	float	x,
		float	y ) const

private

Find the nearest player entity to a given position.

Parameters

x	X coordinate to search from
y	Y coordinate to search from

Returns: Entity handle of nearest player, or invalid entity if none found

Used for aggressive AI targeting

Definition at line 331 of file EnemyAISystem.cpp.

References ecs::Registry::getComponent(), gme::EntityManager::getPlayers(), ecs::INVALID_ENTITY, m_entityManager, m_registry, and ecs::Transform::x.

Referenced by applyAggressiveMovement(), and tryShoot().

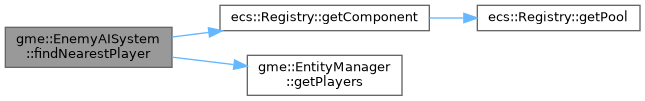

Here is the call graph for this function:

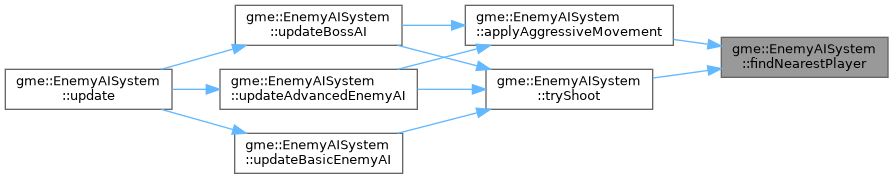

Here is the caller graph for this function:

◆ getAggressiveness()

float gme::EnemyAISystem::getAggressiveness ( ) const

inline

Get current aggressiveness setting.

Returns: Current aggressiveness multiplier

Definition at line 107 of file EnemyAISystem.hpp.

References m_aggressiveness.

◆ getDistanceToNearestPlayer()

float gme::EnemyAISystem::getDistanceToNearestPlayer	(	float	x,
		float	y ) const

private

Calculate distance to nearest player.

Parameters

x	X coordinate to measure from
y	Y coordinate to measure from

Returns: Distance to nearest player in pixels, or large value if no players

Used for distance-based behavior decisions

Definition at line 358 of file EnemyAISystem.cpp.

References ecs::Registry::getComponent(), gme::EntityManager::getPlayers(), m_entityManager, m_registry, and ecs::Transform::x.

Referenced by tryShoot(), and updateAdvancedEnemyAI().

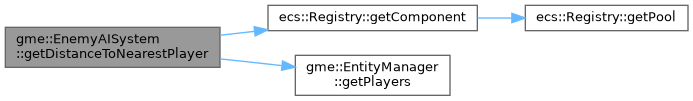

Here is the call graph for this function:

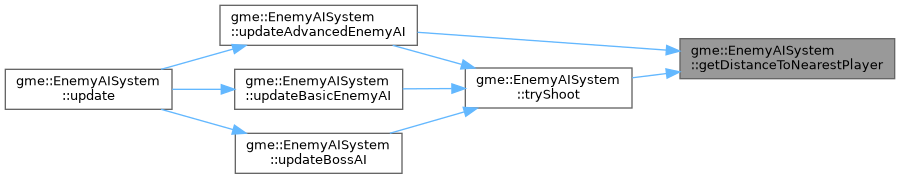

Here is the caller graph for this function:

◆ operator=() [1/2]

EnemyAISystem & gme::EnemyAISystem::operator= ( const EnemyAISystem & )

delete

Deleted copy assignment operator (non-copyable)

◆ operator=() [2/2]

EnemyAISystem & gme::EnemyAISystem::operator= ( EnemyAISystem && )

delete

Deleted move assignment operator (non-movable)

◆ setAggressiveness()

void gme::EnemyAISystem::setAggressiveness ( float value )

inline

Set global enemy aggressiveness multiplier.

Parameters

value Aggressiveness factor (0.0-2.0, default 1.0)

Higher values make enemies pursue players more aggressively. Affects movement speed and shooting frequency.

Definition at line 101 of file EnemyAISystem.hpp.

References m_aggressiveness.

◆ tryShoot()

void gme::EnemyAISystem::tryShoot	(	std::uint32_t	enemyId,
		ecs::Entity	enemy,
		float	deltaTime )

private

Attempt to shoot projectile at player.

Parameters

enemyId	Network ID of the enemy
enemy	ECS entity handle
deltaTime	Time elapsed since last frame

Checks shooting conditions and spawns projectile with random chance

Definition at line 257 of file EnemyAISystem.cpp.

References canShoot(), gme::EntityManager::createEnemyProjectile(), findNearestPlayer(), ecs::Registry::getComponent(), getDistanceToNearestPlayer(), ecs::INVALID_ENTITY, m_entityManager, m_registry, m_rng, m_shootChance, and ecs::Transform::x.

Referenced by updateAdvancedEnemyAI(), updateBasicEnemyAI(), and updateBossAI().

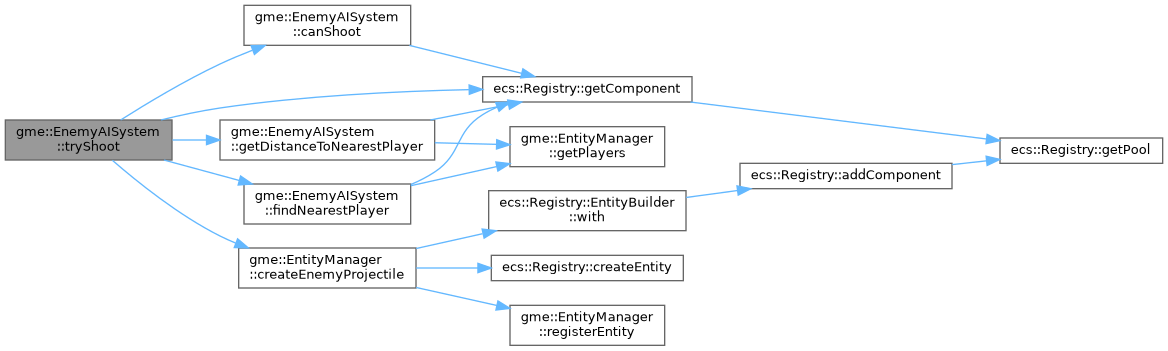

Here is the call graph for this function:

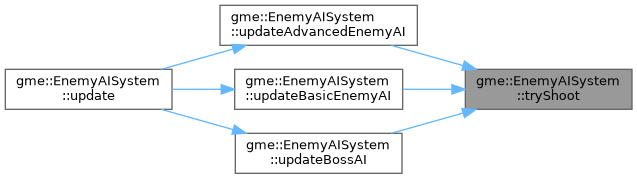

Here is the caller graph for this function:

◆ update()

void gme::EnemyAISystem::update	(	ecs::Registry &	registry,
		float	deltaTime )

overridevirtual

Update the enemy AI system (called each frame)

Parameters

registry	ECS registry containing all entities
deltaTime	Time elapsed since last frame (in seconds)

Processes AI logic for all enemy entities including movement, shooting, and behavior pattern updates

Implements ecs::ISystem.

Definition at line 25 of file EnemyAISystem.cpp.

References gme::BOSS, clampToScreen(), gme::ENEMY_ADVANCED, gme::ENEMY_BASIC, gme::EntityManager::getEnemies(), gme::EntityManager::getEntityMetadata(), m_entityManager, updateAdvancedEnemyAI(), updateBasicEnemyAI(), and updateBossAI().

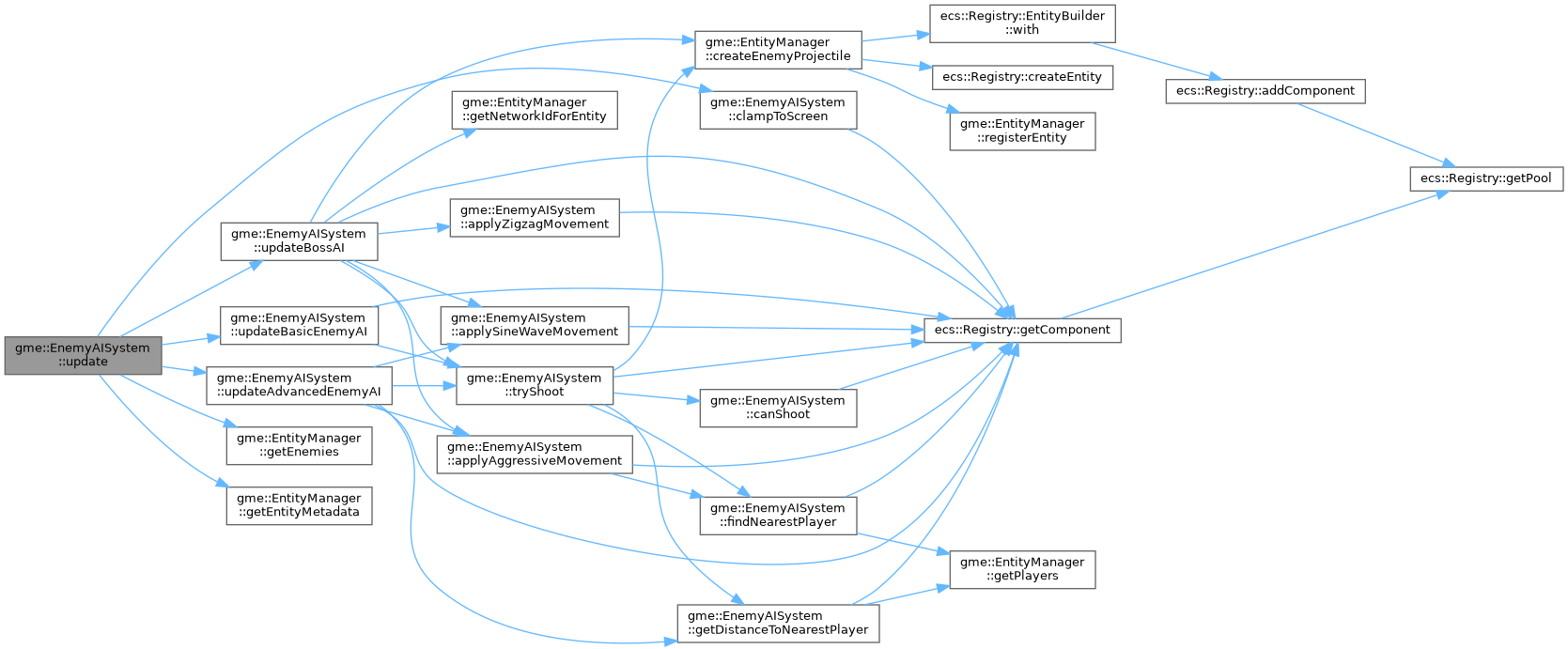

Here is the call graph for this function:

◆ updateAdvancedEnemyAI()

void gme::EnemyAISystem::updateAdvancedEnemyAI	(	std::uint32_t	enemyId,
		ecs::Entity	enemy,
		float	deltaTime )

private

Update AI logic for advanced enemy type.

Parameters

enemyId	Network ID of the enemy
enemy	ECS entity handle
deltaTime	Time elapsed since last frame

Implements more complex movement patterns and frequent shooting

Definition at line 78 of file EnemyAISystem.cpp.

References applyAggressiveMovement(), applySineWaveMovement(), ecs::Registry::getComponent(), getDistanceToNearestPlayer(), m_enemyMovementTimers, m_registry, and tryShoot().

Referenced by update().

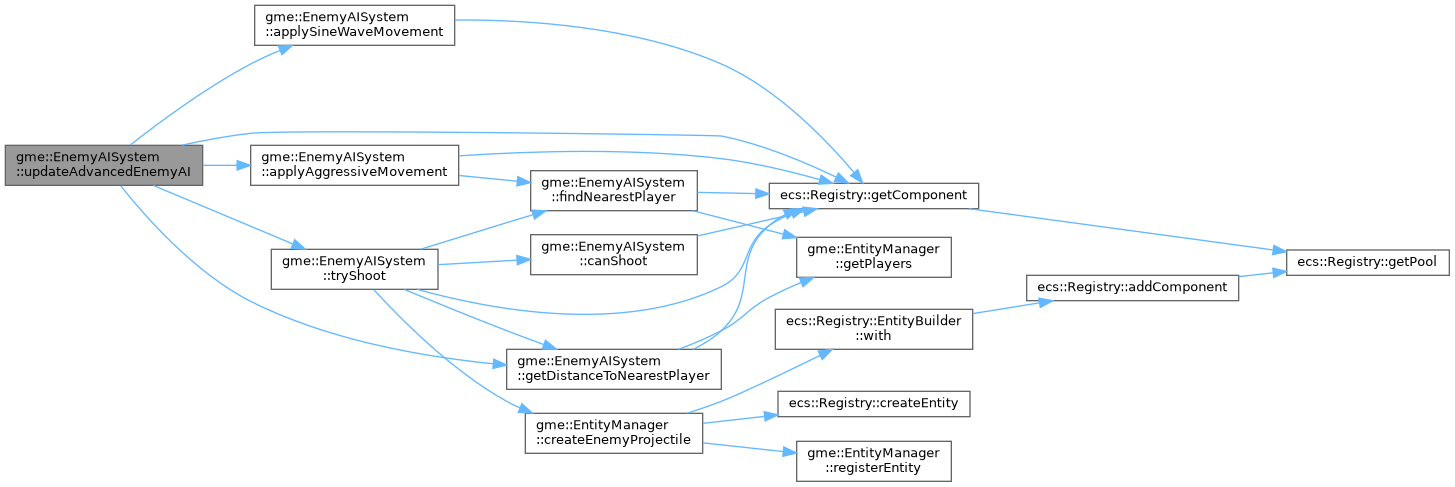

Here is the call graph for this function:

Here is the caller graph for this function:

◆ updateBasicEnemyAI()

void gme::EnemyAISystem::updateBasicEnemyAI	(	std::uint32_t	enemyId,
		ecs::Entity	enemy,
		float	deltaTime )

private

Update AI logic for basic enemy type.

Parameters

enemyId	Network ID of the enemy
enemy	ECS entity handle
deltaTime	Time elapsed since last frame

Implements simple movement patterns and occasional shooting

Definition at line 57 of file EnemyAISystem.cpp.

References ecs::Registry::getComponent(), m_enemyMovementTimers, m_registry, tryShoot(), and ecs::Velocity::x.

Referenced by update().

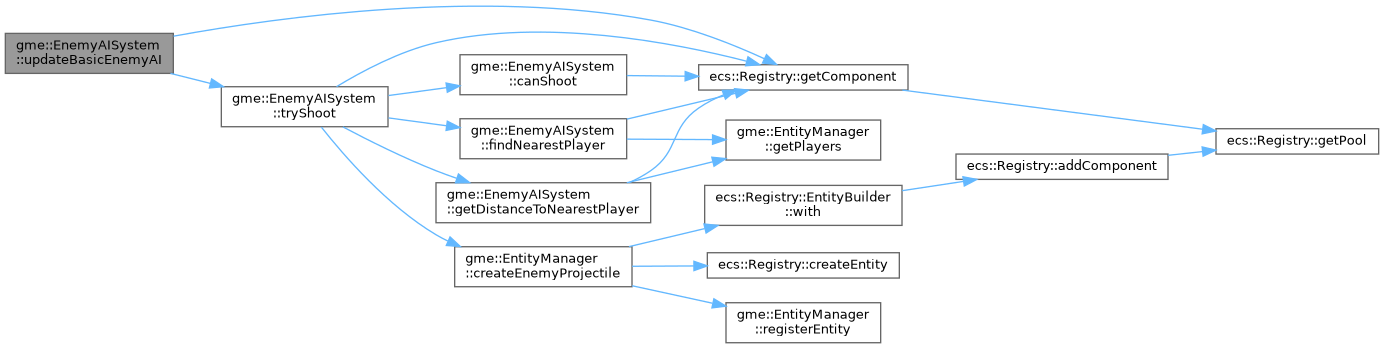

Here is the call graph for this function:

Here is the caller graph for this function:

◆ updateBossAI()

void gme::EnemyAISystem::updateBossAI	(	std::uint32_t	enemyId,
		ecs::Entity	enemy,
		float	deltaTime )

private

Update AI logic for boss enemy type.

Parameters

enemyId	Network ID of the boss
enemy	ECS entity handle
deltaTime	Time elapsed since last frame

Implements special boss behaviors including spread shot patterns

Definition at line 107 of file EnemyAISystem.cpp.

References applyAggressiveMovement(), applySineWaveMovement(), applyZigzagMovement(), gme::EntityManager::createEnemyProjectile(), ecs::Registry::getComponent(), gme::EntityManager::getNetworkIdForEntity(), m_bossSpreadTimers, m_enemyMovementTimers, m_entityManager, m_registry, tryShoot(), and ecs::Transform::x.

Referenced by update().

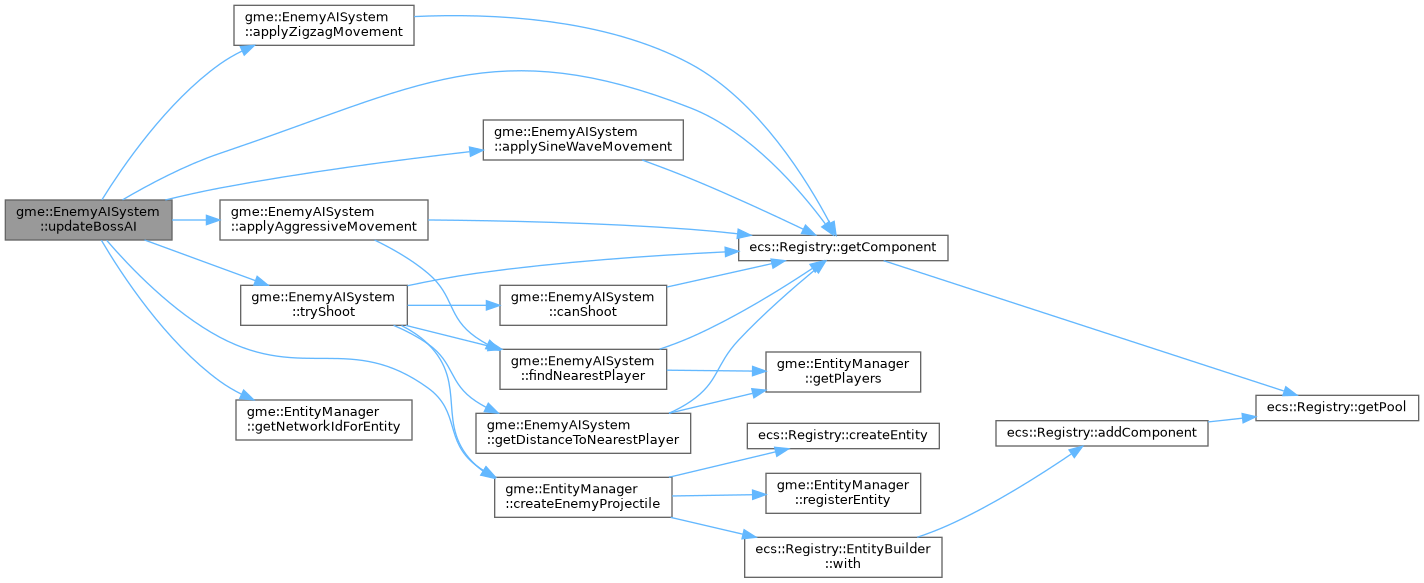

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_aggressiveness

float gme::EnemyAISystem::m_aggressiveness

private

Global aggressiveness multiplier (affects pursuit speed)

Definition at line 113 of file EnemyAISystem.hpp.

Referenced by applyAggressiveMovement(), getAggressiveness(), and setAggressiveness().

◆ m_bossSpreadTimers

std::unordered_map<std::uint32_t, float> gme::EnemyAISystem::m_bossSpreadTimers

private

Boss spread shot timing per boss ID.

Definition at line 119 of file EnemyAISystem.hpp.

Referenced by updateBossAI().

◆ m_enemyMovementTimers

std::unordered_map<std::uint32_t, float> gme::EnemyAISystem::m_enemyMovementTimers

private

Movement timing per enemy ID.

Definition at line 118 of file EnemyAISystem.hpp.

Referenced by applySineWaveMovement(), applyZigzagMovement(), updateAdvancedEnemyAI(), updateBasicEnemyAI(), and updateBossAI().

◆ m_entityManager

EntityManager& gme::EnemyAISystem::m_entityManager

private

Entity manager for spawning projectiles.

Definition at line 111 of file EnemyAISystem.hpp.

Referenced by findNearestPlayer(), getDistanceToNearestPlayer(), tryShoot(), update(), and updateBossAI().

◆ m_registry

ecs::Registry& gme::EnemyAISystem::m_registry

private

ECS registry reference.

Definition at line 110 of file EnemyAISystem.hpp.

Referenced by applyAggressiveMovement(), applySineWaveMovement(), applyZigzagMovement(), canShoot(), clampToScreen(), findNearestPlayer(), getDistanceToNearestPlayer(), tryShoot(), updateAdvancedEnemyAI(), updateBasicEnemyAI(), and updateBossAI().

◆ m_rng

std::mt19937 gme::EnemyAISystem::m_rng

private

Random number generator for shooting patterns.

Definition at line 114 of file EnemyAISystem.hpp.

Referenced by EnemyAISystem(), and tryShoot().

◆ m_shootChance

std::uniform_real_distribution<float> gme::EnemyAISystem::m_shootChance

private

Random distribution for shoot probability.

Definition at line 115 of file EnemyAISystem.hpp.

Referenced by tryShoot().

The documentation for this class was generated from the following files:

/home/runner/work/R-Type/R-Type/plugins/Game/RType/Server/include/RTypeServer/Systems/EnemyAISystem.hpp
/home/runner/work/R-Type/R-Type/plugins/Game/RType/Server/src/Systems/EnemyAISystem.cpp

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ EnemyAISystem() [1/3]

◆ ~EnemyAISystem()

◆ EnemyAISystem() [2/3]

◆ EnemyAISystem() [3/3]

Member Function Documentation

◆ applyAggressiveMovement()

◆ applySineWaveMovement()

◆ applyZigzagMovement()

◆ canShoot()

◆ clampToScreen()

◆ findNearestPlayer()

◆ getAggressiveness()

◆ getDistanceToNearestPlayer()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ setAggressiveness()

◆ tryShoot()

◆ update()

◆ updateAdvancedEnemyAI()

◆ updateBasicEnemyAI()

◆ updateBossAI()

Member Data Documentation

◆ m_aggressiveness

◆ m_bossSpreadTimers

◆ m_enemyMovementTimers

◆ m_entityManager

◆ m_registry

◆ m_rng

◆ m_shootChance
