cae::VULKN Class Reference

Class for the Vulkan plugin. More...

#include <VULKN.hpp>

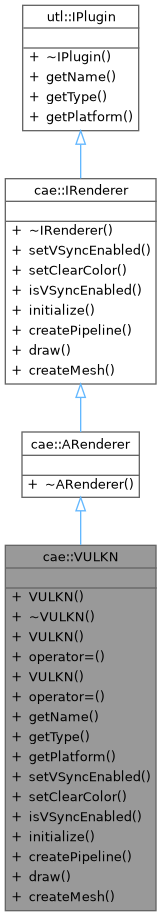

Inheritance diagram for cae::VULKN:

Collaboration diagram for cae::VULKN:

Public Member Functions
	VULKN ()=default
	~VULKN () override=default
	VULKN (const VULKN &)=delete
VULKN &	operator= (const VULKN &)=delete
	VULKN (VULKN &&)=delete
VULKN &	operator= (VULKN &&)=delete
std::string	getName () const override
	Get the name of the plugin.
utl::PluginType	getType () const override
	Get the type of the plugin.
utl::PluginPlatform	getPlatform () const override
	Get the handled platform of the plugin.
void	setVSyncEnabled (bool enabled) override
	Enable or disable VSync.
void	setClearColor (const Color &color) override
	Set the clear color.
bool	isVSyncEnabled () const override
	Check if VSync is enabled.
void	initialize (const NativeWindowHandle &nativeWindowHandle, const Color &clearColor) override
	Initialize the renderer with a native window handle and clear color.
void	createPipeline (const ShaderID &id, const ShaderIRModule &vertex, const ShaderIRModule &fragment) override
	Create a rendering pipeline with vertex and fragment shaders.
void	draw (const WindowSize &windowSize, const ShaderID &shaderId, glm::mat4 mvp) override
	Draw the scene using the specified shader and window size.
void	createMesh (const std::vector< float > &vertices) override
	Create a mesh with the given vertex data.
Public Member Functions inherited from cae::ARenderer
	~ARenderer () override=default
Public Member Functions inherited from cae::IRenderer
	~IRenderer () override=default
Public Member Functions inherited from utl::IPlugin
virtual	~IPlugin ()=default

Detailed Description

Class for the Vulkan plugin.

Definition at line 21 of file VULKN.hpp.

Constructor & Destructor Documentation

VULKN() [1/3]

cae::VULKN::VULKN ( )

default

~VULKN()

cae::VULKN::~VULKN ( )

overridedefault

VULKN() [2/3]

cae::VULKN::VULKN ( const VULKN & )

delete

VULKN() [3/3]

cae::VULKN::VULKN ( VULKN && )

delete

Member Function Documentation

createMesh()

void cae::VULKN::createMesh ( const std::vector< float > & vertices )

inlineoverridevirtual

Create a mesh with the given vertex data.

Parameters

vertices

Vertex data to create the mesh

Implements cae::IRenderer.

Definition at line 48 of file VULKN.hpp.

createPipeline()

void cae::VULKN::createPipeline ( const ShaderID & id, const ShaderIRModule & vertex, const ShaderIRModule & fragment )

inlineoverridevirtual

Create a rendering pipeline with vertex and fragment shaders.

Parameters

id	Shader ID
vertex	Vertex shader IR module
fragment	Fragment shader IR module

Implements cae::IRenderer.

Definition at line 43 of file VULKN.hpp.

draw()

void cae::VULKN::draw ( const WindowSize & windowSize, const ShaderID & shaderId, glm::mat4 mvp )

inlineoverridevirtual

Draw the scene using the specified shader and window size.

Parameters

windowSize	Current window size
shaderId	Shader ID to use for drawing
mvp	Model-View-Projection matrix

Implements cae::IRenderer.

Definition at line 47 of file VULKN.hpp.

getName()

std::string cae::VULKN::getName ( ) const

inlinenodiscardoverridevirtual

Get the name of the plugin.

Returns

The name of the plugin

Implements utl::IPlugin.

Definition at line 33 of file VULKN.hpp.

getPlatform()

utl::PluginPlatform cae::VULKN::getPlatform ( ) const

inlinenodiscardoverridevirtual

Get the handled platform of the plugin.

Returns

The handled platform of the plugin

Implements utl::IPlugin.

Definition at line 35 of file VULKN.hpp.

References utl::ALL.

getType()

utl::PluginType cae::VULKN::getType ( ) const

inlinenodiscardoverridevirtual

Get the type of the plugin.

Returns

The type of the plugin

Implements utl::IPlugin.

Definition at line 34 of file VULKN.hpp.

References utl::RENDERER.

initialize()

void cae::VULKN::initialize ( const NativeWindowHandle & nativeWindowHandle, const Color & clearColor )

inlineoverridevirtual

Initialize the renderer with a native window handle and clear color.

Parameters

nativeWindowHandle	Native window handle
clearColor	Clear color (default: white)

Implements cae::IRenderer.

Definition at line 42 of file VULKN.hpp.

isVSyncEnabled()

bool cae::VULKN::isVSyncEnabled ( ) const

inlinenodiscardoverridevirtual

Check if VSync is enabled.

Returns

Whether VSync is enabled

Implements cae::IRenderer.

Definition at line 40 of file VULKN.hpp.

operator=() [1/2]

VULKN & cae::VULKN::operator= ( const VULKN & )

delete

operator=() [2/2]

VULKN & cae::VULKN::operator= ( VULKN && )

delete

setClearColor()

void cae::VULKN::setClearColor ( const Color & color )

inlineoverridevirtual

Set the clear color.

Parameters

color

Clear color to set

Implements cae::IRenderer.

Definition at line 38 of file VULKN.hpp.

setVSyncEnabled()

void cae::VULKN::setVSyncEnabled ( bool enabled )

inlineoverridevirtual

Enable or disable VSync.

Parameters

enabled

Whether VSync is enabled

Implements cae::IRenderer.

Definition at line 37 of file VULKN.hpp.

---

The documentation for this class was generated from the following file:

• plugins/Renderer/Vulkan/include/VULKN/VULKN.hpp
