cae::IRenderer Interface Reference

Interface for renderer. More...

#include <IRenderer.hpp>

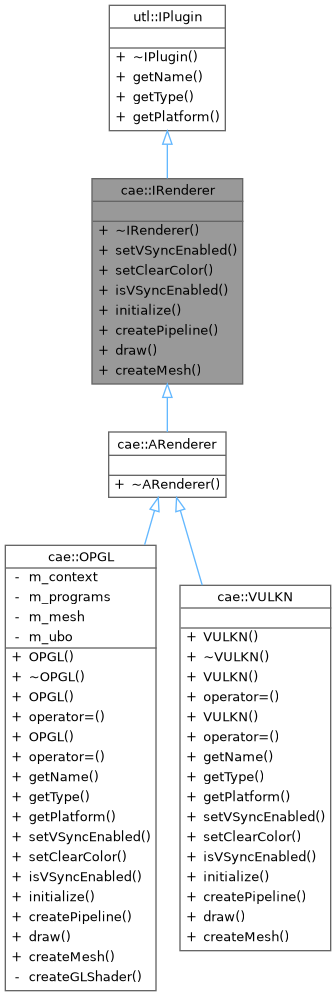

Inheritance diagram for cae::IRenderer:

Collaboration diagram for cae::IRenderer:

Public Member Functions
	~IRenderer () override=default
virtual void	setVSyncEnabled (bool enabled)=0
	Enable or disable VSync.
virtual void	setClearColor (const Color &color)=0
	Set the clear color.
virtual bool	isVSyncEnabled () const =0
	Check if VSync is enabled.
virtual void	initialize (const NativeWindowHandle &nativeWindowHandle, const Color &clearColor={.r=1.F,.g=1.F,.b=1.F,.a=1.F})=0
	Initialize the renderer with a native window handle and clear color.
virtual void	createPipeline (const ShaderID &id, const ShaderIRModule &vertex, const ShaderIRModule &fragment)=0
	Create a rendering pipeline with vertex and fragment shaders.
virtual void	draw (const WindowSize &windowSize, const ShaderID &shaderId, glm::mat4 mvp)=0
	Draw the scene using the specified shader and window size.
virtual void	createMesh (const std::vector< float > &vertices)=0
	Create a mesh with the given vertex data.
Public Member Functions inherited from utl::IPlugin
virtual	~IPlugin ()=default
virtual std::string	getName () const =0
	Get the name of the plugin.
virtual PluginType	getType () const =0
	Get the type of the plugin.
virtual PluginPlatform	getPlatform () const =0
	Get the handled platform of the plugin.

Detailed Description

Interface for renderer.

Definition at line 35 of file IRenderer.hpp.

Constructor & Destructor Documentation

~IRenderer()

cae::IRenderer::~IRenderer ( )

overridedefault

Member Function Documentation

createMesh()

virtual void cae::IRenderer::createMesh ( const std::vector< float > & vertices )

pure virtual

Create a mesh with the given vertex data.

Parameters

vertices

Vertex data to create the mesh

Implemented in cae::OPGL, and cae::VULKN.

createPipeline()

virtual void cae::IRenderer::createPipeline ( const ShaderID & id, const ShaderIRModule & vertex, const ShaderIRModule & fragment )

pure virtual

Create a rendering pipeline with vertex and fragment shaders.

Parameters

id	Shader ID
vertex	Vertex shader IR module
fragment	Fragment shader IR module

Implemented in cae::OPGL, and cae::VULKN.

draw()

virtual void cae::IRenderer::draw ( const WindowSize & windowSize, const ShaderID & shaderId, glm::mat4 mvp )

pure virtual

Draw the scene using the specified shader and window size.

Parameters

windowSize	Current window size
shaderId	Shader ID to use for drawing
mvp	Model-View-Projection matrix

Implemented in cae::OPGL, and cae::VULKN.

initialize()

virtual void cae::IRenderer::initialize ( const NativeWindowHandle & nativeWindowHandle, const Color & clearColor = {.r=1.F,.g=1.F,.b=1.F,.a=1.F} )

pure virtual

Initialize the renderer with a native window handle and clear color.

Parameters

nativeWindowHandle	Native window handle
clearColor	Clear color (default: white)

Implemented in cae::OPGL, and cae::VULKN.

References cae::Color::r.

isVSyncEnabled()

virtual bool cae::IRenderer::isVSyncEnabled ( ) const

nodiscardpure virtual

Check if VSync is enabled.

Returns

Whether VSync is enabled

Implemented in cae::OPGL, and cae::VULKN.

setClearColor()

virtual void cae::IRenderer::setClearColor ( const Color & color )

pure virtual

Set the clear color.

Parameters

color

Clear color to set

Implemented in cae::OPGL, and cae::VULKN.

setVSyncEnabled()

virtual void cae::IRenderer::setVSyncEnabled ( bool enabled )

pure virtual

Enable or disable VSync.

Parameters

enabled

Whether VSync is enabled

Implemented in cae::OPGL, and cae::VULKN.

---

The documentation for this interface was generated from the following file:

• modules/Interfaces/include/Interfaces/Renderer/IRenderer.hpp
