Main multiplayer game client plugin for R-Type. More...

#include <RTypeClientMulti.hpp>

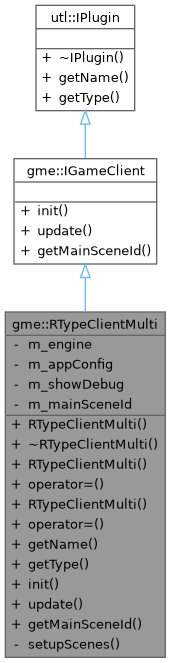

Inheritance diagram for gme::RTypeClientMulti:

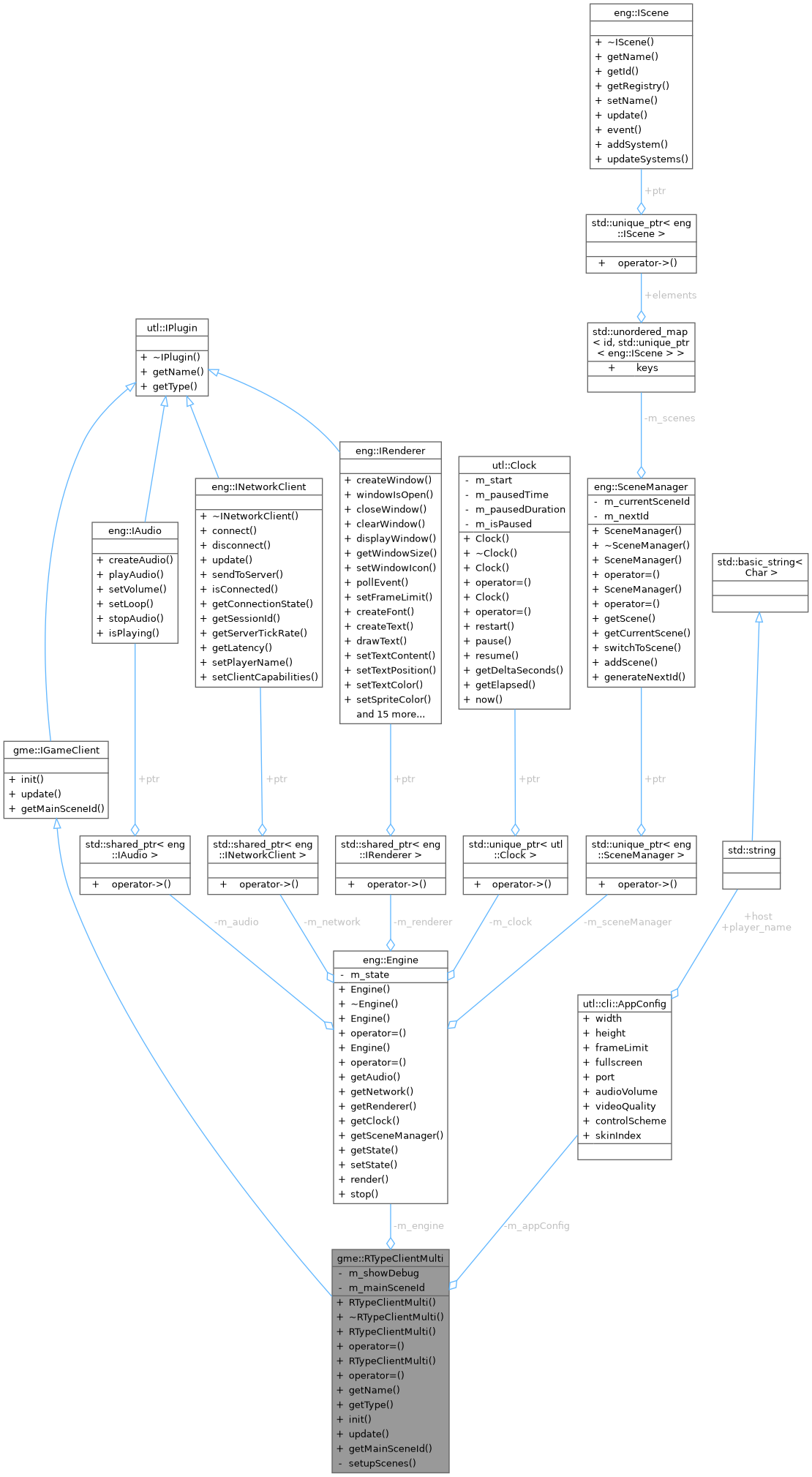

Collaboration diagram for gme::RTypeClientMulti:

Public Member Functions
	RTypeClientMulti ()=default
	Default constructor.

	~RTypeClientMulti () override=default
	Destructor.

	RTypeClientMulti (const RTypeClientMulti &)=delete
	Deleted copy constructor (non-copyable)

RTypeClientMulti &	operator= (const RTypeClientMulti &)=delete
	Deleted copy assignment operator (non-copyable)

	RTypeClientMulti (RTypeClientMulti &&)=delete
	Deleted move constructor (non-movable)

RTypeClientMulti &	operator= (RTypeClientMulti &&)=delete
	Deleted move assignment operator (non-movable)

const std::string	getName () const override
	Get plugin name.

utl::PluginType	getType () const override
	Get plugin type.

void	init (eng::Engine &engine, utl::cli::AppConfig &appConfig, bool &showDebug, const eng::id menuSceneId, const eng::id winSceneId) override
	Initialize the multiplayer client plugin.

void	update (float deltaTime, unsigned int width, unsigned int height) override
	Update the multiplayer client plugin (called each frame)

unsigned int	getMainSceneId () const override
	Get the main scene ID.

Public Member Functions inherited from utl::IPlugin
virtual	~IPlugin ()=default

Private Member Functions
void	setupScenes (bool &showDebug, eng::id menuSceneId)
	Setup all multiplayer game scenes.

Private Attributes
eng::Engine *	m_engine = nullptr
	Pointer to the game engine.

utl::cli::AppConfig *	m_appConfig = nullptr
	Pointer to application configuration.

bool	m_showDebug = false
	Debug mode flag.

eng::id	m_mainSceneId = 1
	ID of the main multiplayer scene.

Detailed Description

Main multiplayer game client plugin for R-Type.

This class serves as the entry point for the R-Type multiplayer client plugin. It manages:

Game scene initialization and transitions
Network client integration
Lobby system UI and logic
Multiplayer game state
Player synchronization

The plugin integrates with the engine's plugin system and provides a complete multiplayer game experience including server browser, lobby system, and networked gameplay.

Definition at line 36 of file RTypeClientMulti.hpp.

Constructor & Destructor Documentation

◆ RTypeClientMulti() [1/3]

gme::RTypeClientMulti::RTypeClientMulti ( )

default

Default constructor.

◆ ~RTypeClientMulti()

gme::RTypeClientMulti::~RTypeClientMulti ( )

overridedefault

Destructor.

◆ RTypeClientMulti() [2/3]

gme::RTypeClientMulti::RTypeClientMulti ( const RTypeClientMulti & )

delete

Deleted copy constructor (non-copyable)

◆ RTypeClientMulti() [3/3]

gme::RTypeClientMulti::RTypeClientMulti ( RTypeClientMulti && )

delete

Deleted move constructor (non-movable)

Member Function Documentation

◆ getMainSceneId()

unsigned int gme::RTypeClientMulti::getMainSceneId ( ) const

inlinenodiscardoverridevirtual

Get the main scene ID.

Returns: ID of the main multiplayer scene

Implements gme::IGameClient.

Definition at line 117 of file RTypeClientMulti.hpp.

References m_mainSceneId.

◆ getName()

const std::string gme::RTypeClientMulti::getName ( ) const

inlinenodiscardoverridevirtual

Get plugin name.

Returns: Plugin name identifier

Implements utl::IPlugin.

Definition at line 74 of file RTypeClientMulti.hpp.

◆ getType()

utl::PluginType gme::RTypeClientMulti::getType ( ) const

inlinenodiscardoverridevirtual

Get plugin type.

Returns: Plugin type (GAME_CLIENT)

Implements utl::IPlugin.

Definition at line 80 of file RTypeClientMulti.hpp.

References utl::GAME_CLIENT.

◆ init()

void gme::RTypeClientMulti::init	(	eng::Engine &	engine,
		utl::cli::AppConfig &	appConfig,
		bool &	showDebug,
		const eng::id	menuSceneId,
		const eng::id	winSceneId )

inlineoverridevirtual

Initialize the multiplayer client plugin.

Parameters

engine	Reference to the game engine
appConfig	Application configuration
showDebug	Debug mode flag
menuSceneId	ID of the main menu scene to return to

Sets up all multiplayer-specific scenes including:

Server connection scene
Lobby browser
Lobby creation
Waiting room
Multiplayer game scene
Game over scene

Implements gme::IGameClient.

Definition at line 96 of file RTypeClientMulti.hpp.

References m_appConfig, m_engine, m_showDebug, and setupScenes().

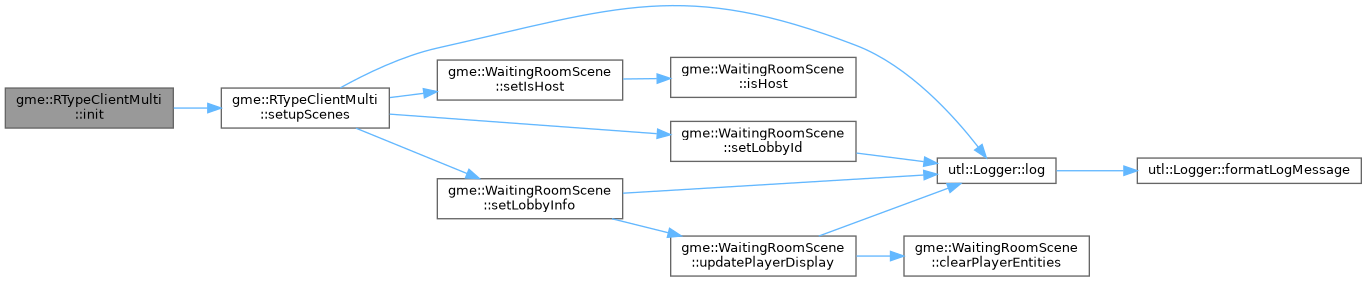

Here is the call graph for this function:

◆ operator=() [1/2]

RTypeClientMulti & gme::RTypeClientMulti::operator= ( const RTypeClientMulti & )

delete

Deleted copy assignment operator (non-copyable)

◆ operator=() [2/2]

RTypeClientMulti & gme::RTypeClientMulti::operator= ( RTypeClientMulti && )

delete

Deleted move assignment operator (non-movable)

◆ setupScenes()

void gme::RTypeClientMulti::setupScenes	(	bool &	showDebug,
		eng::id	menuSceneId )

private

Setup all multiplayer game scenes.

Parameters

showDebug	Debug mode flag
menuSceneId	ID of the main menu scene

Creates and registers all scenes required for multiplayer gameplay:

Server connection and configuration
Lobby system (browse, create, join)
Waiting room
Game scene
Game over screen

Definition at line 15 of file rtypeClientMulti.cpp.

References utl::INFO, utl::Logger::log(), gme::WaitingRoomScene::setIsHost(), gme::WaitingRoomScene::setLobbyId(), and gme::WaitingRoomScene::setLobbyInfo().

Referenced by init().

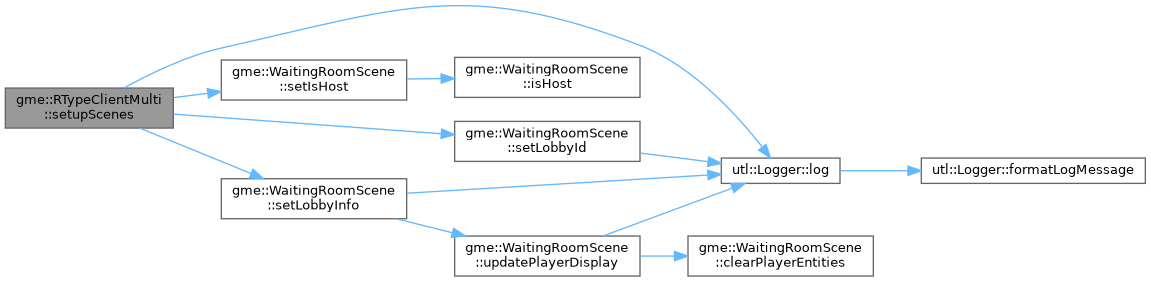

Here is the call graph for this function:

Here is the caller graph for this function:

◆ update()

void gme::RTypeClientMulti::update	(	float	deltaTime,
		unsigned int	width,
		unsigned int	height )

overridevirtual

Update the multiplayer client plugin (called each frame)

Parameters

deltaTime	Time elapsed since last frame (in seconds)
width	Current window width
height	Current window height

Performs frame-by-frame updates for multiplayer functionality

Implements gme::IGameClient.

Definition at line 13 of file rtypeClientMulti.cpp.

Member Data Documentation

◆ m_appConfig

utl::cli::AppConfig* gme::RTypeClientMulti::m_appConfig = nullptr

private

Pointer to application configuration.

Definition at line 134 of file RTypeClientMulti.hpp.

Referenced by init().

◆ m_engine

eng::Engine* gme::RTypeClientMulti::m_engine = nullptr

private

Pointer to the game engine.

Definition at line 133 of file RTypeClientMulti.hpp.

Referenced by init().

◆ m_mainSceneId

eng::id gme::RTypeClientMulti::m_mainSceneId = 1

private

ID of the main multiplayer scene.

Definition at line 136 of file RTypeClientMulti.hpp.

Referenced by getMainSceneId().

◆ m_showDebug

bool gme::RTypeClientMulti::m_showDebug = false

private

Debug mode flag.

Definition at line 135 of file RTypeClientMulti.hpp.

Referenced by init().

The documentation for this class was generated from the following files:

/home/runner/work/R-Type/R-Type/plugins/Game/RType/Client/Multi/include/RTypeClientMulti/RTypeClientMulti.hpp
/home/runner/work/R-Type/R-Type/plugins/Game/RType/Client/Multi/src/rtypeClientMulti.cpp
