cae::IShaderIR Interface Reference

Interface for shaders IR. More...

#include <IShaderIR.hpp>

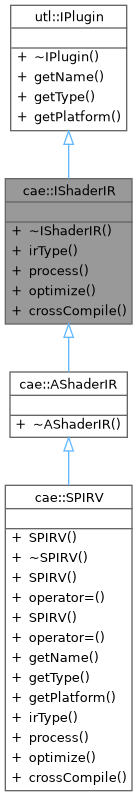

Inheritance diagram for cae::IShaderIR:

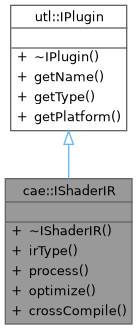

Collaboration diagram for cae::IShaderIR:

Public Member Functions
	~IShaderIR () override=default
virtual ShaderSourceType	irType () const =0
	Get the IR type this processor handles.
virtual ShaderIRModule	process (const ShaderIRModule &module)=0
	Transform or validate a shader IR module.
virtual void	optimize (std::span< ShaderIRModule > modules)
	Optional: optimize a batch of IR modules.
virtual ShaderIRModule	crossCompile (const ShaderIRModule &module, ShaderSourceType targetType)
	Optional: cross-compile from one IR to another (SPIR-V -> MSL, etc.)
Public Member Functions inherited from utl::IPlugin
virtual	~IPlugin ()=default
virtual std::string	getName () const =0
	Get the name of the plugin.
virtual PluginType	getType () const =0
	Get the type of the plugin.
virtual PluginPlatform	getPlatform () const =0
	Get the handled platform of the plugin.

Detailed Description

Interface for shaders IR.

Definition at line 22 of file IShaderIR.hpp.

Constructor & Destructor Documentation

~IShaderIR()

cae::IShaderIR::~IShaderIR ( )

overridedefault

Member Function Documentation

crossCompile()

virtual ShaderIRModule cae::IShaderIR::crossCompile ( const ShaderIRModule & module, ShaderSourceType targetType )

inlinevirtual

Optional: cross-compile from one IR to another (SPIR-V -> MSL, etc.)

Implemented in cae::SPIRV.

Definition at line 49 of file IShaderIR.hpp.

irType()

virtual ShaderSourceType cae::IShaderIR::irType ( ) const

pure virtual

Get the IR type this processor handles.

Returns

The IR type this processor handles

Implemented in cae::SPIRV.

optimize()

virtual void cae::IShaderIR::optimize ( std::span< ShaderIRModule > modules )

inlinevirtual

Optional: optimize a batch of IR modules.

Implemented in cae::SPIRV.

Definition at line 44 of file IShaderIR.hpp.

process()

virtual ShaderIRModule cae::IShaderIR::process ( const ShaderIRModule & module )

pure virtual

Transform or validate a shader IR module.

Parameters

module

The input IR module

Returns

Transformed IR module ready for the backend

Implemented in cae::SPIRV.

---

The documentation for this interface was generated from the following file:

• modules/Interfaces/include/Interfaces/Shader/IR/IShaderIR.hpp
