cae::GLSL Class Reference

Class for the GLSL plugin. More...

#include <GLSL.hpp>

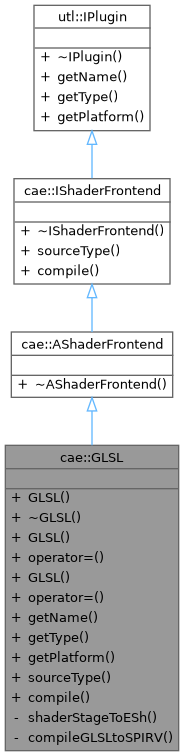

Inheritance diagram for cae::GLSL:

Collaboration diagram for cae::GLSL:

Public Member Functions
	GLSL ()=default
	~GLSL () override=default
	GLSL (const GLSL &)=delete
GLSL &	operator= (const GLSL &)=delete
	GLSL (GLSL &&)=delete
GLSL &	operator= (GLSL &&)=delete
std::string	getName () const override
	Get the name of the plugin.
utl::PluginType	getType () const override
	Get the type of the plugin.
utl::PluginPlatform	getPlatform () const override
	Get the handled platform of the plugin.
ShaderSourceType	sourceType () const override
	Get the source type this frontend handles.
ShaderIRModule	compile (const ShaderSourceDesc &desc) override
	Compile shader source to intermediate representation.
Public Member Functions inherited from cae::AShaderFrontend
	~AShaderFrontend () override=default
Public Member Functions inherited from cae::IShaderFrontend
	~IShaderFrontend () override=default
Public Member Functions inherited from utl::IPlugin
virtual	~IPlugin ()=default

Static Private Member Functions
static EShLanguage	shaderStageToESh (const ShaderStage stage)
static std::vector< uint32_t >	compileGLSLtoSPIRV (const std::string &src, ShaderStage stage)

Detailed Description

Class for the GLSL plugin.

Definition at line 25 of file GLSL.hpp.

Constructor & Destructor Documentation

GLSL() [1/3]

cae::GLSL::GLSL ( )

default

~GLSL()

cae::GLSL::~GLSL ( )

overridedefault

GLSL() [2/3]

cae::GLSL::GLSL ( const GLSL & )

delete

GLSL() [3/3]

cae::GLSL::GLSL ( GLSL && )

delete

Member Function Documentation

compile()

ShaderIRModule cae::GLSL::compile ( const ShaderSourceDesc & desc )

inlineoverridevirtual

Compile shader source to intermediate representation.

Parameters

desc	Shader source description

Returns

Compiled shader intermediate representation module

Implements cae::IShaderFrontend.

Definition at line 43 of file GLSL.hpp.

References compileGLSLtoSPIRV(), cae::ShaderIRModule::entryPoint, cae::ShaderIRModule::id, cae::ShaderSourceDesc::id, cae::ShaderSourceDesc::source, cae::ShaderIRModule::spirv, cae::ShaderIRModule::stage, and cae::ShaderSourceDesc::stage.

Here is the call graph for this function:

compileGLSLtoSPIRV()

std::vector< uint32_t > cae::GLSL::compileGLSLtoSPIRV ( const std::string & src, ShaderStage stage )

staticprivate

Definition at line 5 of file glsl.cpp.

References shaderStageToESh(), and cae::VERSION.

Referenced by compile().

Here is the call graph for this function:

Here is the caller graph for this function:

getName()

std::string cae::GLSL::getName ( ) const

inlinenodiscardoverridevirtual

Get the name of the plugin.

Returns

The name of the plugin

Implements utl::IPlugin.

Definition at line 37 of file GLSL.hpp.

getPlatform()

utl::PluginPlatform cae::GLSL::getPlatform ( ) const

inlinenodiscardoverridevirtual

Get the handled platform of the plugin.

Returns

The handled platform of the plugin

Implements utl::IPlugin.

Definition at line 39 of file GLSL.hpp.

References utl::ALL.

getType()

utl::PluginType cae::GLSL::getType ( ) const

inlinenodiscardoverridevirtual

Get the type of the plugin.

Returns

The type of the plugin

Implements utl::IPlugin.

Definition at line 38 of file GLSL.hpp.

References utl::SHADER_FRONTEND.

operator=() [1/2]

GLSL & cae::GLSL::operator= ( const GLSL & )

delete

operator=() [2/2]

GLSL & cae::GLSL::operator= ( GLSL && )

delete

shaderStageToESh()

static EShLanguage cae::GLSL::shaderStageToESh ( const ShaderStage stage )

inlinestaticprivate

Definition at line 54 of file GLSL.hpp.

References cae::COMPUTE, cae::FRAGMENT, cae::GEOMETRY, and cae::VERTEX.

Referenced by compileGLSLtoSPIRV().

Here is the caller graph for this function:

sourceType()

ShaderSourceType cae::GLSL::sourceType ( ) const

inlinenodiscardoverridevirtual

Get the source type this frontend handles.

Returns

The source type this frontend handles

Implements cae::IShaderFrontend.

Definition at line 41 of file GLSL.hpp.

References cae::GLSL.

---

The documentation for this class was generated from the following files:

• plugins/Shader/Frontend/GLSL/include/GLSL/GLSL.hpp
• plugins/Shader/Frontend/GLSL/src/glsl.cpp
