Class for the GLFW plugin. More...

#include <GLFW.hpp>

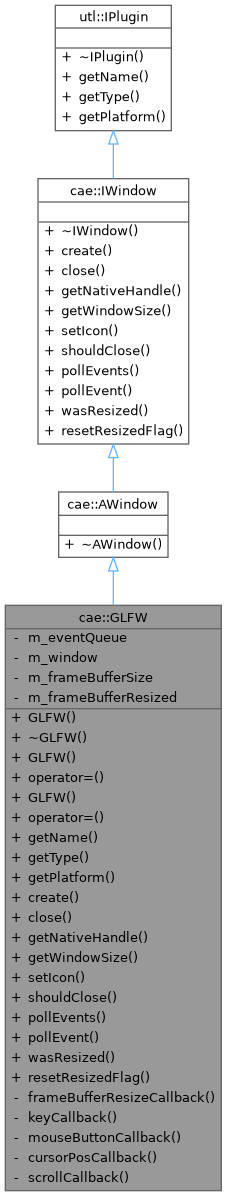

Inheritance diagram for cae::GLFW:

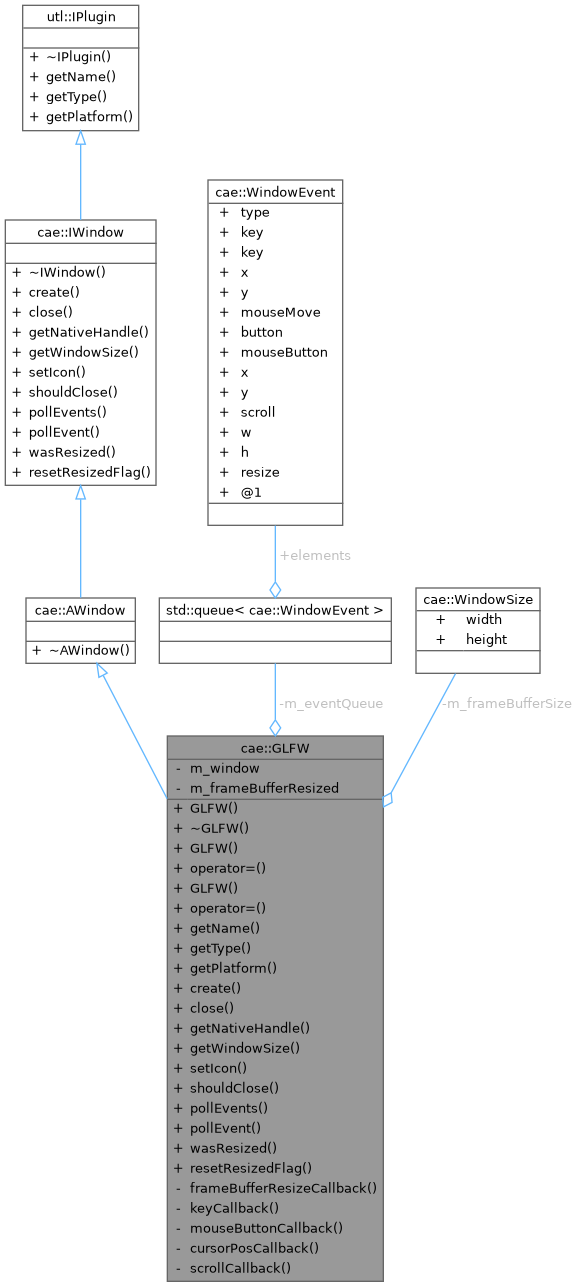

Collaboration diagram for cae::GLFW:

Public Member Functions
	GLFW ()=default

	~GLFW () override=default

	GLFW (const GLFW &)=delete

GLFW &	operator= (const GLFW &)=delete

	GLFW (GLFW &&)=delete

GLFW &	operator= (GLFW &&)=delete

std::string	getName () const override
	Get the name of the plugin.

utl::PluginType	getType () const override
	Get the type of the plugin.

utl::PluginPlatform	getPlatform () const override
	Get the handled platform of the plugin.

bool	create (const std::string &name, WindowSize size) override
	Create a window with the given name and size.

void	close () override
	Close the window.

NativeWindowHandle	getNativeHandle () const override
	Get the native window handle.

WindowSize	getWindowSize () const override
	Get the current window size.

void	setIcon (const std::string &path) const override
	Set the window icon from the given image path.

bool	shouldClose () const override
	Check if the window should close.

void	pollEvents () override
	Poll window events.

bool	pollEvent (WindowEvent &event) override
	Poll window events into outEvent.

bool	wasResized () const override
	Check if the window was resized.

void	resetResizedFlag () override
	Reset the resized flag.

Public Member Functions inherited from cae::AWindow
	~AWindow () override=default

Public Member Functions inherited from cae::IWindow
	~IWindow () override=default

Public Member Functions inherited from utl::IPlugin
virtual	~IPlugin ()=default

Static Private Member Functions
static void	frameBufferResizeCallback (GLFWwindow *window, int width, int height)

static void	keyCallback (GLFWwindow *window, int key, int scancode, int action, int mods)

static void	mouseButtonCallback (GLFWwindow *window, int button, int action, int mods)

static void	cursorPosCallback (GLFWwindow *window, double x, double y)

static void	scrollCallback (GLFWwindow *window, double xoffset, double yoffset)

Private Attributes
std::queue< WindowEvent >	m_eventQueue

GLFWwindow *	m_window = nullptr

WindowSize	m_frameBufferSize {}

bool	m_frameBufferResized = false

Detailed Description

Class for the GLFW plugin.

Definition at line 30 of file GLFW.hpp.

Constructor & Destructor Documentation

◆ GLFW() [1/3]

cae::GLFW::GLFW ( )

default

◆ ~GLFW()

cae::GLFW::~GLFW ( )

overridedefault

◆ GLFW() [2/3]

cae::GLFW::GLFW ( const GLFW & )

delete

◆ GLFW() [3/3]

cae::GLFW::GLFW ( GLFW && )

delete

Member Function Documentation

◆ close()

void cae::GLFW::close ( )

overridevirtual

Close the window.

Implements cae::IWindow.

Definition at line 302 of file glfw.cpp.

◆ create()

bool cae::GLFW::create	(	const std::string &	name,
		WindowSize	size )

overridevirtual

Create a window with the given name and size.

Parameters

name	Window name
size	Window size

Returns: True if the window was created successfully

Implements cae::IWindow.

Definition at line 268 of file glfw.cpp.

References cae::WindowSize::height, utl::Logger::log(), utl::WARNING, and cae::WindowSize::width.

Here is the call graph for this function:

◆ cursorPosCallback()

void cae::GLFW::cursorPosCallback	(	GLFWwindow *	window,
		double	x,
		double	y )

staticprivate

Definition at line 217 of file glfw.cpp.

References cae::MouseMove, and cae::WindowEvent::type.

◆ frameBufferResizeCallback()

void cae::GLFW::frameBufferResizeCallback	(	GLFWwindow *	window,
		int	width,
		int	height )

staticprivate

Definition at line 249 of file glfw.cpp.

References m_frameBufferResized, cae::Resize, and cae::WindowEvent::type.

◆ getName()

std::string cae::GLFW::getName ( ) const

inlinenodiscardoverridevirtual

Get the name of the plugin.

Returns: The name of the plugin

Implements utl::IPlugin.

Definition at line 42 of file GLFW.hpp.

◆ getNativeHandle()

cae::NativeWindowHandle cae::GLFW::getNativeHandle ( ) const

nodiscardoverridevirtual

Get the native window handle.

Returns: Native window handle

Implements cae::IWindow.

Definition at line 320 of file glfw.cpp.

References cae::NativeWindowHandle::window.

◆ getPlatform()

utl::PluginPlatform cae::GLFW::getPlatform ( ) const

inlinenodiscardoverridevirtual

Get the handled platform of the plugin.

Returns: The handled platform of the plugin

Implements utl::IPlugin.

Definition at line 44 of file GLFW.hpp.

References utl::ALL.

◆ getType()

utl::PluginType cae::GLFW::getType ( ) const

inlinenodiscardoverridevirtual

Get the type of the plugin.

Returns: The type of the plugin

Implements utl::IPlugin.

Definition at line 43 of file GLFW.hpp.

References utl::WINDOW.

◆ getWindowSize()

cae::WindowSize cae::GLFW::getWindowSize ( ) const

nodiscardoverridevirtual

Get the current window size.

Returns: Current window size

Implements cae::IWindow.

Definition at line 312 of file glfw.cpp.

◆ keyCallback()

void cae::GLFW::keyCallback	(	GLFWwindow *	window,
		int	key,
		int	scancode,
		int	action,
		int	mods )

staticprivate

Definition at line 176 of file glfw.cpp.

References cae::KeyDown, cae::KeyUp, translateKey(), and cae::WindowEvent::type.

Here is the call graph for this function:

◆ mouseButtonCallback()

void cae::GLFW::mouseButtonCallback	(	GLFWwindow *	window,
		int	button,
		int	action,
		int	mods )

staticprivate

Definition at line 202 of file glfw.cpp.

References cae::MouseButtonDown, cae::MouseButtonUp, and cae::WindowEvent::type.

◆ operator=() [1/2]

GLFW & cae::GLFW::operator= ( const GLFW & )

delete

◆ operator=() [2/2]

GLFW & cae::GLFW::operator= ( GLFW && )

delete

◆ pollEvent()

bool cae::GLFW::pollEvent ( WindowEvent & outEvent )

overridevirtual

Poll window events into outEvent.

Parameters

outEvent Event to be filled

Returns: True if an event was polled

Implements cae::IWindow.

Definition at line 348 of file glfw.cpp.

◆ pollEvents()

void cae::GLFW::pollEvents ( )

inlineoverridevirtual

Poll window events.

Implements cae::IWindow.

Definition at line 55 of file GLFW.hpp.

◆ resetResizedFlag()

void cae::GLFW::resetResizedFlag ( )

inlineoverridevirtual

Reset the resized flag.

Implements cae::IWindow.

Definition at line 59 of file GLFW.hpp.

References m_frameBufferResized.

◆ scrollCallback()

void cae::GLFW::scrollCallback	(	GLFWwindow *	window,
		double	xoffset,
		double	yoffset )

staticprivate

Definition at line 233 of file glfw.cpp.

References cae::MouseScroll, and cae::WindowEvent::type.

◆ setIcon()

void cae::GLFW::setIcon ( const std::string & path ) const

overridevirtual

Set the window icon from the given image path.

Parameters

path	Path to the icon image

Returns: True if the icon was set successfully

Implements cae::IWindow.

Definition at line 336 of file glfw.cpp.

References utl::Image::height, utl::Logger::log(), utl::Image::pixels, utl::WARNING, and utl::Image::width.

Here is the call graph for this function:

◆ shouldClose()

bool cae::GLFW::shouldClose ( ) const

inlinenodiscardoverridevirtual

Check if the window should close.

Returns: True if the window should close

Implements cae::IWindow.

Definition at line 54 of file GLFW.hpp.

References m_window.

◆ wasResized()

bool cae::GLFW::wasResized ( ) const

inlinenodiscardoverridevirtual

Check if the window was resized.

Returns: True if the window was resized

Implements cae::IWindow.

Definition at line 58 of file GLFW.hpp.

References m_frameBufferResized.

Member Data Documentation

◆ m_eventQueue

std::queue<WindowEvent> cae::GLFW::m_eventQueue

private

Definition at line 68 of file GLFW.hpp.

◆ m_frameBufferResized

bool cae::GLFW::m_frameBufferResized = false

private

Definition at line 72 of file GLFW.hpp.

Referenced by frameBufferResizeCallback(), resetResizedFlag(), and wasResized().

◆ m_frameBufferSize

WindowSize cae::GLFW::m_frameBufferSize {}

private

Definition at line 71 of file GLFW.hpp.

◆ m_window

GLFWwindow* cae::GLFW::m_window = nullptr

private

Definition at line 70 of file GLFW.hpp.

Referenced by shouldClose().

The documentation for this class was generated from the following files:

plugins/Window/GLFW/include/GLFW/GLFW.hpp
plugins/Window/GLFW/src/glfw.cpp
