cae::Application Class Reference

Main class. More...

#include <Application.hpp>

Collaboration diagram for cae::Application:

Public Member Functions
	Application (const ArgsConfig &argsConfig, const EnvConfig &envConfig)
	Construct the Application with given configurations.
	~Application ()=default
	Application (const Application &)=delete
Application &	operator= (const Application &)=delete
	Application (Application &&)=delete
Application &	operator= (Application &&)=delete
void	start ()
	Start the application.
void	stop ()
	Stop the application.

Private Member Functions
void	setupEngine (const std::string &rendererName, const std::string &windowName, const std::string &shaderFrontendName, const std::string &shaderIRName)
	Setup the engine with the given plugins.
void	mainLoop ()
	main loop

Static Private Member Functions
static EngineConfig	parseEngineConf (const std::string &path)
	Parse the engine configuration file.

Private Attributes
std::unique_ptr< utl::PluginLoader >	m_pluginLoader = nullptr
std::unique_ptr< Engine >	m_engine = nullptr
AppConfig	m_appConfig
std::unordered_map< KeyCode, bool >	m_keyState

Detailed Description

Main class.

Definition at line 33 of file Application.hpp.

Constructor & Destructor Documentation

Application() [1/3]

cae::Application::Application	(	const ArgsConfig &	argsConfig,
		const EnvConfig &	envConfig )

Construct the Application with given configurations.

Parameters

argsConfig	Command line arguments configuration
envConfig	Environment variables configuration

Definition at line 43 of file application.cpp.

References cae::ArgsConfig::config_path, cae::AppConfig::engineConfig, cae::AppConfig::envConfig, cae::PLUGINS::NAME::WINDOW::GLFW, cae::PLUGINS::NAME::SHADER::FRONTEND::GLSL, utl::INFO, utl::Logger::log(), m_appConfig, cae::PLUGINS::NAME::RENDERER::OPENGL, parseEngineConf(), setupEngine(), cae::PLUGINS::NAME::SHADER::IR::SPIRV, cae::MESSAGE::VERSION_MSG, and utl::WARNING.

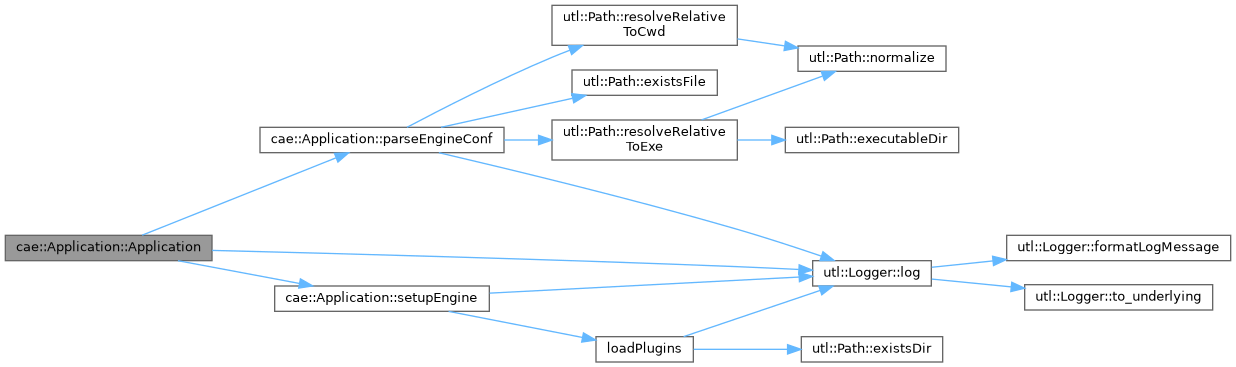

Here is the call graph for this function:

~Application()

cae::Application::~Application ( )

default

Application() [2/3]

cae::Application::Application ( const Application & )

delete

Application() [3/3]

cae::Application::Application ( Application && )

delete

Member Function Documentation

mainLoop()

void cae::Application::mainLoop ( )

private

main loop

Definition at line 167 of file application.cpp.

References cae::A, cae::D, cae::Down, cae::KeyDown, cae::KeyUp, cae::LCtrl, cae::Left, cae::Right, cae::S, cae::Space, cae::Up, and cae::W.

operator=() [1/2]

Application & cae::Application::operator= ( Application && )

delete

operator=() [2/2]

Application & cae::Application::operator= ( const Application & )

delete

parseEngineConf()

cae::EngineConfig cae::Application::parseEngineConf ( const std::string & path )

staticprivate

Parse the engine configuration file.

Parameters

path	Path to the engine configuration file

Returns

Parsed EngineConfig

Definition at line 12 of file conf.cpp.

References cae::Color::a, cae::EngineConfig::audio_master_volume, cae::EngineConfig::audio_muted, cae::Color::b, cae::EngineConfig::camera_direction, cae::EngineConfig::camera_far_plane, cae::EngineConfig::camera_fov, cae::EngineConfig::camera_look_speed, cae::EngineConfig::camera_move_speed, cae::EngineConfig::camera_near_plane, cae::EngineConfig::camera_position, cae::EngineConfig::camera_rotation, utl::Path::existsFile(), cae::Color::g, utl::INFO, utl::Logger::log(), cae::EngineConfig::log_fps, cae::EngineConfig::network_host, cae::EngineConfig::network_port, cae::Color::r, cae::EngineConfig::renderer_clear_color, cae::EngineConfig::renderer_frame_rate_limit, cae::EngineConfig::renderer_vsync, utl::Path::resolveRelativeToCwd(), utl::Path::resolveRelativeToExe(), utl::WARNING, cae::EngineConfig::window_fullscreen, cae::EngineConfig::window_height, cae::EngineConfig::window_icon_path, cae::EngineConfig::window_name, and cae::EngineConfig::window_width.

Referenced by Application().

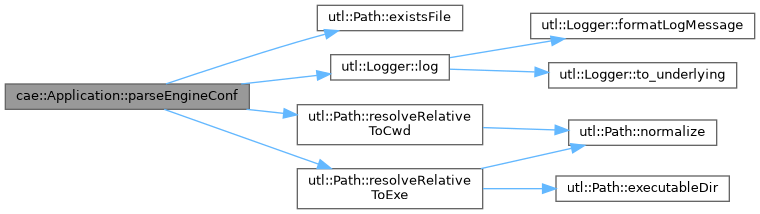

Here is the call graph for this function:

Here is the caller graph for this function:

setupEngine()

void cae::Application::setupEngine ( const std::string & rendererName, const std::string & windowName, const std::string & shaderFrontendName, const std::string & shaderIRName )

private

Setup the engine with the given plugins.

Parameters

rendererName	renderer plugin name
windowName	window plugin name
shaderFrontendName	shader frontend plugin name
shaderIRName	shader IR plugin name

Definition at line 65 of file application.cpp.

References loadPlugins(), utl::Logger::log(), and utl::WARNING.

Referenced by Application().

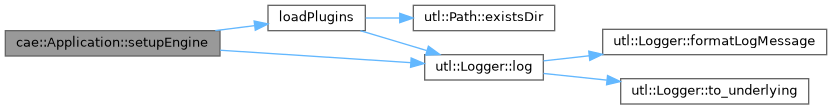

Here is the call graph for this function:

Here is the caller graph for this function:

start()

void cae::Application::start

(

)

Start the application.

Definition at line 142 of file application.cpp.

References cubeVertices, utl::fileToString(), cae::FRAGMENT, cae::GLSL, utl::Path::resolveRelativeToExe(), and cae::VERTEX.

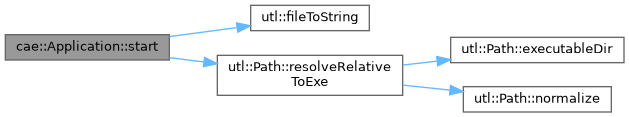

Here is the call graph for this function:

stop()

void cae::Application::stop

(

)

Stop the application.

Definition at line 159 of file application.cpp.

Member Data Documentation

m_appConfig

AppConfig cae::Application::m_appConfig

private

Definition at line 86 of file Application.hpp.

Referenced by Application().

m_engine

std::unique_ptr<Engine> cae::Application::m_engine = nullptr

private

Definition at line 84 of file Application.hpp.

m_keyState

std::unordered_map<KeyCode, bool> cae::Application::m_keyState

private

Definition at line 87 of file Application.hpp.

m_pluginLoader

std::unique_ptr<utl::PluginLoader> cae::Application::m_pluginLoader = nullptr

private

Definition at line 83 of file Application.hpp.

---

The documentation for this class was generated from the following files:

• include/CAE/Application.hpp
• src/application.cpp
• src/conf.cpp
